Summary of Contents for Lombardini 11 LD Series
-
Page 1: Hydraulic Pump 4Th P.t.o., Group

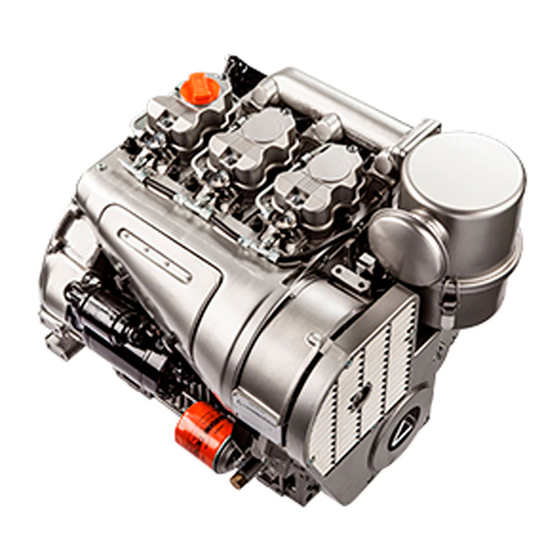

WORKSHOP MANUAL 11 LD series engines, code 1-5302-296 11 LD 535-3 11 LD 625-3 11 LD 626-3 3st Edition COMPILER TECO/ATL MODEL N° DATE OF ISSUE DATE REG. CODE ENDORSED REVISION 17.04.2003 1-5302-296 50510 01.89... -
Page 2: Hydraulic Pump 3Rd P.t.o., Group
However, development on the Lombardini series is continuos. Therefore, the information within this manual is subject to change without notice and without obligation. The information contained within this service manual is the sole property of Lombardini. As such, no reproduction or replication in whole or part is allowed without the express written permission of Lombardini. - Page 3 Within the above stated periods Lombardini Srl directly or through its authorized network will repair and/or replace free of charge any own part or component that, upon examination by Lombardini or by an authorized Lombardini agent, is found to be defective in conformity, workmanship or materials.
-
Page 4: Table Of Contents
INTRODUCTION This manual contains the most important information for the repair of LOMBARDINI air cooled, direct injection Diesel engines type 11LD535-3, 11LD625-3 e 11LD626-3. This information is current upto April 17.04.2003 . TABLE OF CONTENTS TROUBLESHOOTING Page SAFETY DECALS - SAFETY INSTRUCTIONS "... - Page 5 INTRODUCTION Exhaust manifold ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○...
- Page 6 ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ Test data for injection pump delivery at the test bed - Pump type LOMBARDINI-OMAP ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○...
- Page 7 NOTE COMPILER TECO/ATL MODEL N° DATE OF ISSUE DATE REG. CODE ENDORSED REVISION 17.04.2003 1-5302-296 50510 01.89...
- Page 8 NOTE COMPILER TECO/ATL MODEL N° DATE OF ISSUE DATE REG. CODE ENDORSED REVISION 17.04.2003 50510 01.89 1-5302-296...
-
Page 9: Itroubleshooting
POSSIBLE CAUSES AND TROUBLE SHOOTING POSSIBLE CAUSES AND TROUBLE SHOOTING The following table contains the possible cause of some failures hich may occur during operation. Always perform the simplest checks before removing or replacing any part. TROUBLE POSSIBLE CAUSE • Clogged pipings •... -
Page 10: Safety Decals - Safety Instructions
SAFETY INSTRUCTIONS • Lombardini Engines are built to supply their performances in a safe and long-lasting way. To obtain these results, it is essential for users to comply with the servicing instructions given in the relative manual along with the safety recommendations listed below. - Page 11 • Only check belt tension when the engine is off. • Only use the eyebolts installed by Lombardini to move the engine. These lifting points are not suitable for the entire machine; in this case, the eyebolts installed by the manufacturer should be used.
-
Page 12: Model Number And Identification
MODEL NUMBER AND IDENTIFICATION MODEL NUMBER AND IDENTIFICATION 11LD535-3 11 LD 625-3 11LD626-3 Engine group number LOMBARDINI N° Cilynders Diesel R.P.M. COMPILER TECO/ATL MODEL N° DATE OF ISSUE DATE REG. CODE ENDORSED REVISION 17.04.2003 1-5302-296 50510 01.89... -
Page 13: Technical Data
TECHNICAL DATA 11LD 11LD 11LD ENGINE TYPE 625-3 626-3 535-3 Number of cylinders Bore Stroke Cm³ Displacement 1870 1870 1605 Compression ratio 17:1 17:1 17:1 R.P.M. 3000 3000 3000 N DIN 70020 30,8/42 28/38 25,4/33,3 Power kW/HP NB DIN 6270 28,6/39 26/35,4 22/30... -
Page 14: Vcharacteristic Curves
) : Specific fuel consumption at N power. : Torque at N : Range of application for continuous operation. Note: Consult LOMBARDINI for power, torque curves and specific consumptions at rates differing from those given above. COMPILER TECO/ATL MODEL N° DATE OF ISSUE DATE REG. -
Page 15: Overall Dimensions
OVERALL DIMENSIONS OVERALL DIMENSIONS 11LD535-3, 11LD625-3, 11LD626-3 COMPILER TECO/ATL MODEL N° DATE OF ISSUE DATE REG. CODE ENDORSED REVISION 17.04.2003 1-5302-296 50510 01.89... -
Page 16: Maintenance- Recommended Oil Type - Refilling
Includes checking cylinders, piston rings, guides, springs, grinding valve seats, de-carboning heads and cylinders as welle as checking injection pump and injectors. CAPACITIES (LITERS) Standard fuel tank: LITERS As for filters, tanks and special crankcases please refer to LOMBARDINI instructions. COMPILER TECO/ATL MODEL N° DATE OF ISSUE DATE REG. - Page 17 MAINTENANCE - RECOMMENDED OIL TYPE - REFILLING The engine could be damaged if allowed to operate with insufficient oil. It is also dangerous to add too much oil as its combustion could sharply increase the rotation speed. Use a suitable oil in order to protect the engine. The lubrication oil influences the performances and life of the engine in an incredible way.
- Page 18 NOTE COMPILER TECO/ATL MODEL N° DATE OF ISSUE DATE REG. CODE ENDORSED REVISION 17.04.2003 50510 01.89 1-5302-296...
-
Page 19: Disassembly/Reassembly
Besides disassembly and reassembiy operations this chapter also includes checking and setting specifications, dimensions, repair using compressed air, wear eye and operating instructions. Always use original LOMBARDINI spare protection. parts for proper repair operations. Do not blow the paper filter element with compressed air to clean. -
Page 20: Belt Tension Adjustment
VIII DISASSEMBLY/REASSEMBLY Intake manifold Check flange surface for warpage and correct if necessary. Before refitting check that heads are in line. Replace gaskets. Tighten nuts at 2.5 Kgm. Note: In case of low temperature starting we can supply a manifold with provision for a glow plug for air preheating. -
Page 21: Blower Assembly
DISASSEMBLY/REASSEMBLY VIII Before demounting the cooling fan, disconnect the positive battery cable to prevent accidental short-circuits which could consequently energize the starter motor. Blower assembly Data plate and voltage regulator are fixed outside the blower housing. A 14 A or 21 A alternator is housed inside the stator. See Page 56-57 and 60 for the alternator technical data. -
Page 22: Blower Control Pulley Diameter
DISASSEMBLY/REASSEMBLY VIII Crankshaft pulley Components: 1 Nut 2 Washer 3 Puller, Part No. 7271-3595-048 Loosen the nut by turning clockwise and remove the pulley using the puller. The pulley has reference marks for the top dead center (See Page 51). Tighten the bolt at 300 Nm. Note: The crankshaft end play can be checked only after tightening the pulley. -
Page 23: Compression Release (Optional)
DISASSEMBLY/REASSEMBLY VIII During the demounting phases, pay particular attention to prevent the flywheel from dropping as this could seriously injure the operator. Wear protective goggles when removing the flywheel ring. Flywheel Loosen the bolts which fix the flywheei to the crankshaft. To replace starter ring gear heat it up to 300°C for 15÷20 minutes. -
Page 24: Cylinder Head
DISASSEMBLY/REASSEMBLY VIII Rocker arm assembly Components: 1 Bore 2 Lubricatíon tube Dimensions: A = 18.032÷18.050 B = 17.989÷18.000 lf (A-B) clearance exceeds 0. 135 mm replace pin and rocker arms. When refitting check that lubrication tube 2 perfectly fits into centering bore 1 Tighten screws at 2.5 Kgm. -
Page 25: Valve Material
DISASSEMBLY/REASSEMBLY VIII Vatves Components: 1 Intake valve 2 Spring seat 3 Valve stem oil seal 4 Spring 5 Retainer 6 Half collets Te remove half collets firmly press down as shown ìn the figure. Note: Valve stem oil seal, 3 must be fitted to the intake valve only. Valve springs Measure free length with a gauge. -
Page 26: Dimensions And Clearance Between Guides And Valves (Mm)
DISASSEMBLY/REASSEMBLY VIII Valve guides and cylinder head housìngs Intake and exhaust valve guides are both made of phosphoric cast iron. Components: 1 = Exhaust valve guide 2 = Intake valve guide Dimensions (mm) A = 42.00 B = 48.5 C = 14.000÷14.018 D = 14.050÷14.060 Valve guides with outside diameter increased by 0.5 mm are also available;... -
Page 27: Pushrod Tube Spring Fitting
DISASSEMBLY/REASSEMBLY VIII Valve seats and housings Dimensions (mm.): A = 40.000÷40.016 (intake valve housing dia.) B = 40.120÷40.140 (intake valve seat dia.) C = 34.000÷34.016 (exhaust valve housìng dia.) D = 34.120÷34.140 (exhaust valve seat dia.) Press valve seats into the housings and cut a at 45°. Valve seat lapping After cutting, lap valve seats with fine emery paste in oil suspension. -
Page 28: Checking That Piston Is An Original Part
DISASSEMBLY/REASSEMBLY VIII CYLINDER Measure diameter sìze between two diametrically opposed points at three different heights. For 11 LD535-3 Ø = 88.00÷88.03 mm. For 11 LD625-3 and 11 LD626-3 Ø = 95.00÷95.03 mm. In case wear exceeds 0.10 mm, bore the cyIinder and fit oversize piston and ríngs. -
Page 29: Piston Rings - End Gaps (Mm)
DISASSEMBLY/REASSEMBLY VIII Piston weight Weigh pistons when replacing them in order to avoid unbalance. The difference in weight should not exceed 6 g. Piston rings - End gaps (mm) Place piston rings squarely into the unworn part of the lower cylinder and measure the end gap. -
Page 30: Connecting Rod
DISASSEMBLY/REASSEMBLY VIII Lubricate the following parts with oil before mounting: the piston pin, the piston, the cylinder and the big-end bearing Piston - Refitting Connect piston to connecting rod in a way that the combustion chamber center b is under nozzle tip a. Lubricate piston pin and introduce it into the piston by exerting pressure with your thumb. -
Page 31: Connecting Rod Alignment
VIII DISASSEMBLY/REASSEMBLY Connecting rod alignment Check alignment of small end and big end bearing bores using fitted mandrels; axial mis-alignment A = 0.02 mm; maximum limit 0.05 mm. Moderale warpage may be corrected by gradually working with a press. Connecting rod weight Weigh connecting rods when replacing them in order to avoid unbalance. -
Page 32: Camshaft Gear
DISASSEMBLY/REASSEMBLY VIII Camshaft gear Remove nut 1 and washer 2. Then remove camshaft gear 3. The cylindrical type of coupling makes gear removal easier since no puller is required. Tighten nut 1 at 25 Kgm. See Page 38 for timing. Oil pump gear Remove nut 1 and washer 2. -
Page 33: Crankshaft
DISASSEMBLY/REASSEMBLY VIII Main bearing support, flywheel side Loosen nuts and extract main bearing support using two M 8x1.25 screws with fully threaded length of 40 mm. Check oil seal ring and replace if warped, hardened or worn-out. When refitting tighten nuts at 2.5 Kgm. See Page 36 for dimensions CRANKSHAFT Center main bearing support, locating bolts. -
Page 34: Checking Main Journals And Crank Pins
VIII DISASSEMBLY/REASSEMBLY During repair operations, when using compressed air, wear eye protection. Crankshaft lubrication ducts Remove plugs, clean ducts A, B and C with a pointed tool and blow in compressed air. Screw plugs back in place and check for sealing. Crankshaft journal radius The radius R connecting journal to shoulders is 2.8÷3.2 mm. -
Page 35: Clearance Between Main Journals/Crank Pins And Connecting Rod Bearings (Mm)
DISASSEMBLY/REASSEMBLY VIII Use an inside micrometer to measure the inside diameter of main bearings. Main bearing and connecting rod big end bearing inside diameter Dimensions (mm): E = 80.870÷80.890 F = 45.548÷45.578 G = 55.430÷55.460 H = 55.000÷55.020 (see Note on Page 32) The above dimensions refer to driven in or tightened bearings. -
Page 36: Crankshaft End Play
VIII DISASSEMBLY/REASSEMBLY Main bearing supports 1 Flywheei side 2 1st central 3 2nd central 4 Gear side Dimensions (mm) 85.785÷85.815 L= 152.000÷152.020 M= 60.000÷60.020 N = 150.000÷150.020 (with tightened bearing) 0 = 148.000÷148.020 (with tightened bearing) P= 77.990÷78.010 Main bearing housings Dimensions (mm): A = 152.000÷152.020 B = 150.000÷150.020... -
Page 37: Camshaft
DISASSEMBLY/REASSEMBLY VIII CAMSHAFT Camshaft removal To pull out the camshaft simply remove bell 1, gear 2, fuel feeding pump 3, injection pumps 4 and tilt the engine; in this position the cam followers is not in contact with the camshaft thus making its removal possible. -
Page 38: Camshaft End Play
DISASSEMBLY/REASSEMBLY VIII Intake/exhaust cam height A1= 1st cylinder intake cam S1 = 1st cylinder exhaust cam A2 = 2nd cylinder intake cam S2 = 2nd cylinder exhaust cam A3 = 3rd cylinder intake cam S3 = 3rd cylinder exhaust cam H = 33.950÷34.050 Exhaust and intake cams feature the same height H. -
Page 39: Valve Timing Check
DISASSEMBLY/REASSEMBLY VIII Valve timing check Check valve timing at the crankshaft. The value shown are checked at the flywheel circumference (with flywheel of 291 mm. diameter each degree corresponds to 2.5 mm). Set valve clearance at 0.65÷0.70 mm (after checking restore the value al 0.15÷0.20 mm). -
Page 40: Hydraulic Pump P.t.o
DISASSEMBLY/REASSEMBLY VIII Hydraulic pump p.t.o. A hydraulic pump of group 1 or 2 can be installed on the gear side A, 3rd p.t.o. A group 1 hydraulic pump can be installed at the 4th p.t.o. B. Hydraulic pump 3rd p.t.o., group 2 Components: 1 Gear 2 Gear support... -
Page 41: Mechanical Speed Governor
DISASSEMBLY/REASSEMBLY VIII MECHANICAL SPEED GOVERNOR The governor (with weights) is housed inside the crankcase and is controlled by a camshaft gear. To remove speed governor 1 remove camshaft bell 2 and speed governor control gear 3. Mechanical speed governor components (standard) 1 Drive rod 2 Stop ring 3 Bearing... -
Page 42: Mechanical Speed Governor Components For Special Generating Sets
DISASSEMBLY/REASSEMBLY VIII Mechanical speed governor components for special generating sets 1 Spring anchoring rocker arm 2 Governor springs 3 Journal 4 Governor control lever 5 Governor control lever ball bearing 6 Lever 7 Bearing 8 Plate Note: Two types of governor springs (2) are available: one for full speed regulation at 1500 r.p.m. -
Page 43: Electronic Speed Governor
DISASSEMBLY/REASSEMBLY VIII ELECTRONIC SPEED GOVERNOR (optional) A = Actuator S = r.p.m. sensor T = Electromagnet An electronic speed governor can be fitted upon request. The crankcase features a hole for sensor S introduction. Electronic speed governor 1 Injection pump 2 Delivery control lever 3 Actuator A mounting flange 4 Mobile retainer... -
Page 44: Electronic Speed Governor Control Box
DISASSEMBLY/REASSEMBLY VIII Starting with electronic speed governor (see lay-out on page 43) In position 0 the engine is not working and no part is energized. The rack rod is in stop position (retained by two springs 10 inside actuator A). By rotating key C to position 2 the electromagnet withdraws allowing the rack rod to reach ìts highest delivery being connected to the actuator at its max. -
Page 45: Lubrication System
LUBRICATION SYSTEM The engine can be damaged if allowed to operate with insufficient oil. It is also dangerous to add too much oil because its combustion may lead to a sharp increase in the rotation speed. Use suitable oil in order to protect the engine. Nothing more than lubrication oil can influence the performances and life of an engine. -
Page 46: Oil Filter Cartridge
LUBRICATION SYSTEM Oil pump Check that gear teeth are intact and that clearance between gear edge and pump body is 0.041÷0.053 mm with limit value 0.10 mm. Furthermore check that control shaft is tree to rotate with end float of 0.040÷0.090 mm with limit value of 0.170 mm. -
Page 47: Oil Pressure Curve At Full Speed
LUBRICATION SYSTEM Oil pressure curve at idling speed The curve is obtained at the oil filter level with constant engine speed of 1200 r.p.m. in no-Ioad conditions and at a room temperature of + 25° C. Pressure is given in bar and temperature in centigrades. Oil pressure curve at full speed The curve is obtained at the oil filter level with engine working al 3000 r.p.m. -
Page 48: Xfuel System
FUEL SYSTEM Fuel feeding/injection circuit Components: 1 Tank 2 Filter 3 Fuel feeding tube 4 Fuel feeding pump 5 Injection pump 6 Injection line 7 Injector 8 Injector leak off line and self bleeding system 9 Bowl Fuel fliter Components: 1 Bleeder 2 Cap 3 Seal element... -
Page 49: Injection Pump
The Bosch injection system consists of three pumps each feeding one cylinder. The pumps mounted on the crankcase, corresponding to their proper cylinder, are directly operated by the camshaft. Injection pump type LOMBARDINI - OMAP For 11LD625-3 and 11LD626-3 Components: 1 Rack rod lock... -
Page 50: How To Check Injection Pump Delivery Valve Sealing
FUEL SYSTEM Plunger For injection pump type LOMBARDINI-OMAP mounted on 11 LD626-3 For injection pumps type Bosch and LOMBARDINI-OMAP mounted on 11 LD535-3 and 11 LD625-3. Dimensions (mm): 1.000÷1.100 7.445÷7.455 7.500 3.000÷3.025 7.225÷7.275 7.000 3.000 10.250 How to check plunger and barrel for internal leakage This operation is only diagnostic since pressure changes depend on the pumping speed. -
Page 51: Bosch Injection Pump Replacement - Reference Mark On Delivery Side
FUEL SYSTEM Test data for injection pump delivery at the test bed - Pump type LOMBARDINI-OMAP 1 Rack rod lock to be removed after pump fitting to the engine 2 Injection pump axis Test data Rod stroke from Camshaft Control rod pump axis r.P.M. -
Page 52: Bosch Injection Pump Replacement - Shim Reference Number
Whern replacing the crankcase or the camshaft preserve the same distance A between D, injection pump support, and C, injection cam radius; add shims on D to obtain the right A value if required. LOMBARDINI-OMAP injection pump replacement 1 Rack rod lock 2 White, green or blue reference mark A = 82.80 mm... -
Page 53: (Static) Injection Timing
FUEL SYSTEM (STATIC) INJECTION TIMING Disconnect injection line on cylinder 1 making sure not to loosen the pump delivery union. Attach the timing tool shown below. Injection timing checking device Components: 1 Union 2 Tube 3 Sleeve 4 Transparent body, serial No. 7271-9727-003 This device allows for immediate monitoring of the fuel flow through its transparent portion. -
Page 54: Injection Timing Correction
FUEL SYSTEM Injection timing reference marks on crankcase and flywheel A = Piston reference mark al the top dead centre B = Injection timing reference mark compared to A (A - B) = Distance in mm. C = Piston reference mark in injection tíming position. α... -
Page 55: Injector
FUEL SYSTEM INJECTOR Components: 1 Intake fitting 2 Nozzle holder 3 Shim 4 Spring 5 Pressure rod 6 Intermediate flange 7 Nozzle 8 Needle valve 9 Fixing flange 10 Taper pin 11 Gasket 12 System duct 13 Sump 14 Cup Nozzle Features: Hole number and diameter 4x0.28 mm. -
Page 56: Electric System
6 Oil pressure warning light 7 Key switch 8 Battery charging light Note: Battery, which is not supplied by Lombardini, should feature a 12V voltage. When choosing battery capacity please consider environmental conditions: 66 Ah are recommended down to -10°C and 88 Ah are recommended below -15°C;... -
Page 57: 12 V, 21 A Alternator
ELECTRIC SYSTEM Alternator battery charger curve (12.5 V, 14A) The curve was obtained at room temperature of + 25°C with 12.5V battery voltage. Note: The r.p.m. shown in the table refers to the engine. 12 V, 21 A Alternator Features a fixed armature winding housed in the bell inside the blower stator. -
Page 58: Checking For Cable Continuity
Using an ohmmeter check for continuity between the red cable and the two yellow ones. Furthermore, check that they are insulated from the ground. VOLTAGE REGULATOR Type LOMBARDINI, supplied by SAPRISA and DUCATI: Voltage 12 V, max. current 26A. References for SAPRISA connections with the corresponding DUCATI connections. SAPRISA DUCATI To avoid wrong connections 3 different sizes are supplied. -
Page 59: Connections For Lombardini-Ducati Voltage Regulator
The voltage regulator fits to both circuits with and without battery charging light; in the latter case connections LE (SAPRISA) and L (DUCATI) are not used. The voltage regulator shown in the picture is LOMBARDINI-DUCATI. Connections for LOMBARDINI-DUCATI voltage regulator How to check voltage regulator for proper operation Check that connections correspond to the layout. -
Page 60: 33 A Bosch G1 Alternator Battery Charger Curve
ELECTRIC SYSTEM Alternator type Bosch Gl 14 V, 33 A The alternator is ot the claw-pole rotor type with built-in voltage reguiator. The rotating motion is conveyed by the engine through a 'V' belt and sheave. Features: 12V rated voltage. Max. current 33A at 7000 alternator r.p.m.. -
Page 61: Characteristic Curves For Starting Motor Type Bosch Jf (R) 12 V
ELECTRIC SYSTEM STARTING MOTOR Bosch tipo JF (R) 12 V, class 2.5 RH direction of rotation A = 23÷24 mm B = Ring gear plane C = Flange plane Warning: The flywheel should not project from ring gear plane B. Note: Apply to Bosch Service Centers for any type of repair. -
Page 62: Settings
SETTINGS SETTINGS 1) ldling speed setting in no-load conditions (standard) After filling with oil and fuel, start the engine and let it warm up for 10 minutes. Adjust idling speed at 800÷900 r.p. m. by turning setscrew 1; then tighten lock nut. 2) Full speed setting in no-load conditions (standard) After setting idle speed turn screw 2 and set full speed in no-load conditions at 3200 r.p.m.;... -
Page 63: Injection Pump Delivery Setting With Engine At The Torque Dynamometer
SETTINGS Injection pump delivery setting with engine at the torque dynamometer 1) Bring engine to idling speed 2) Unscrew delivery limiting device C (see page 59) 3) Bring engine to the power and r.p.m. required by the manufacturer of the device, 4) Check that consumption falls within the table specifications (see below). -
Page 64: Storage
XIII STORAGE STORAGE Prepare engines as follows for storage over 30 days: Temporary protection (1÷6 months). • Let engine work at idling speed in no-load conditions for 15 minutes. • Fill crankcase wíth protection oil MIL-1-644-P9 and let engine run al 3/4 full speed for 5 - 10 minutes. - Page 65 NOTE COMPILER TECO/ATL MODEL N° DATE OF ISSUE DATE REG. CODE ENDORSED REVISION 17.04.2003 1-5302-296 50510 01.89...
-
Page 66: Main Torque Specifications And Use Of Sealants
MAIN TORQUE SPECIFICATIONS AND USE OF SEALANTS MAIN TORQUE SPECIFICATIONS Diameter and pitch Torque COMPONENT ( mm ) Connecting rod Injection pump delivery valve union 18x1,5 Rocker arm cover 8x1,25 8x1,25 Center main bearing support Intake manifold 8x1,25 8x1,25 Exhaust manifold Air shroud 8x1,25 Throttle control cover... - Page 67 STANDARD BOLT TORQUE SPECIFICATIONS STANDARD BOLT TORQUE SPECIFICATIONS DESCRIPTION R ≥ ≥ ≥ ≥ ≥ 800 N/mm² R ≥ ≥ ≥ ≥ ≥ 1000 N/mm² R ≥ ≥ ≥ ≥ ≥ 1200 N/mm² Diameter x Pitch (mm) 4x0,70 0,37 0,52 0,62 5x0,80 0,72...
