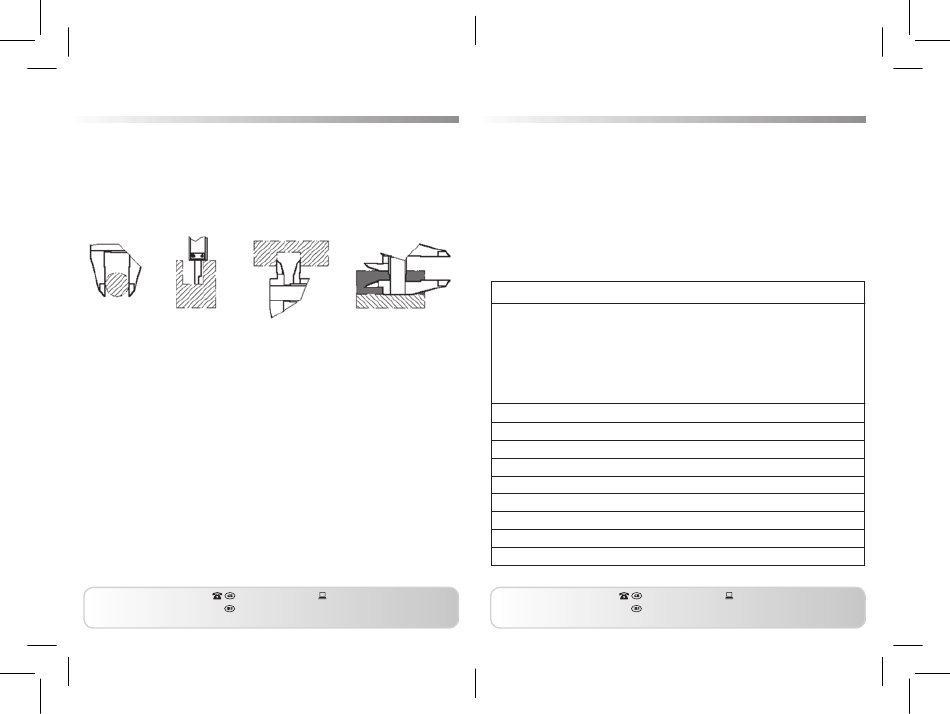

Measurements

a) Outer measurement
c) Inner measurement
a) b) c)
Tip
Use the fine-tuning wheel for precise measurements.
It simplifies the precise setting of the caliper gauge.
12
AFTER SALES SUPPORT 0800 / 328 6020
00800 / 4467 5888
GT-DC-02, 02/13, E45316
b) Depth measurement
d) Staged measurement
d)
info@dariolondon.com

Support table

Practical support table for cutting threads (also see the back of
the caliper gauge):
Column 1: Screw size
Column 2: Thread pitch
Column 3: Min. drill hole diameter
Column 4: Matching standard drill size
Metr. ISO
Nenn Stg
Screw Thread
ext. Pas
extr. Paso
Ø mm mm
3 0,5
4 0,7
5 0,8
6 1
8 1,25
10 1,5
12 1,75
16 2
20 2,5
13
AFTER SALES SUPPORT 0800 / 328 6020
00800 / 4467 5888
GT-DC-02, 02/13, E45316
Kern Bohr
Hole Drill
int mèche
núcleo broca
Ø mm Ø mm
2,46 2,5
3,24 3,3
4,13 4,2
4,92 5
6,65 6,8
8,38 8,5
10,11 10,2
13,84 14
17,29 17,5
