ATI Technologies TRACON FPT 130 Installation And Operation Manual

Single–point freeze protection heat–trace control
Hide thumbs

Advertisement

Quick Links

Download this manual

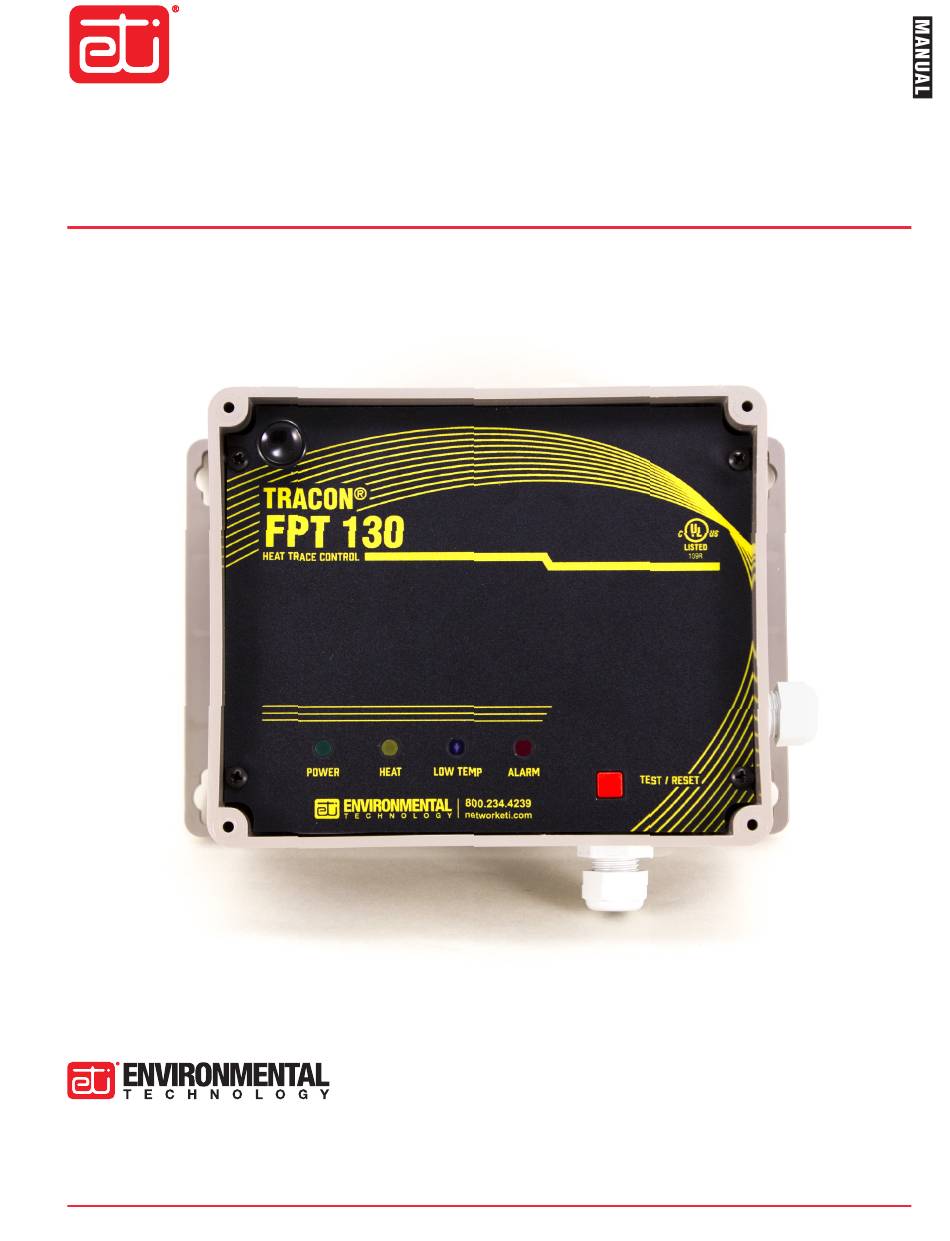

We manage heat
®
Single–Point Freeze Protection Heat–Trace Control
TRACON MODEL FPT 130
Installation and Operation Manual
1850 N Sheridan Street
South Bend, Indiana 46628
(574) 233-1202 or (800) 234-4239
FAX (574) 233-2152 or (888) 234-4238
www.networketi.com
ENVIRONMENTAL TECHNOLOGY, INC.
25165 Rev - A 6/17
(800) 234-4239
www.networketi.com

Advertisement

loading
Need help?

Need help?

Do you have a question about the TRACON FPT 130 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ATI Technologies TRACON FPT 130

Summary of Contents for ATI Technologies TRACON FPT 130

  • Page 1 We manage heat ® Single–Point Freeze Protection Heat–Trace Control TRACON MODEL FPT 130 Installation and Operation Manual 1850 N Sheridan Street South Bend, Indiana 46628 (574) 233-1202 or (800) 234-4239 FAX (574) 233-2152 or (888) 234-4238 www.networketi.com ENVIRONMENTAL TECHNOLOGY, INC. 25165 Rev - A 6/17 (800) 234-4239 www.networketi.com...
  • Page 2 Temperature Setpoint Note: Perform the following steps with the circuit breaker to the unit OFF. The TRACON FPT 130 is permanently The FPT 130 Automatic Heat–Trace Control should be installed by a qualified, licensed electrician. Installation must conform to all 50 °F...

  • Page 3: Table Of Contents

    Model FPT 130 Single–Point Freeze Protection Heat–Trace Control Table of Contents FPT 130 Overview ..................3 Installation ................... 4 – 6 Power Source and Load Connections ............5 Temperature Sensor .................. 6 External Alarm ................... 6 Operation ....................7 Dip Switches ....................8 Pilot Duty The FPT 130 Automatic Heat–Trace Control with GFEP cannot be used for Pilot Duty applications.

  • Page 4: Fpt 130 Overview

    Model FPT 130 Single–Point Freeze Protection Heat–Trace Control FPT 130 Overview The TRACON FPT 130 Heat–Trace Control is a single–point microprocessor–based heat–trace control thermostat. It is ideal for applications which require Ground–Fault Equipment Protection (GFEP). Ideal uses include freeze protection, and other temperature monitoring and control applications. The FPT 130 and its heater load can be powered with an available line voltage source of 100 –...

  • Page 5: Installation

    Model FPT 130 Single–Point Freeze Protection Heat–Trace Control Installation The FPT 130 Automatic Heat–Trace Control should be installed by a qualified, licensed electrician. Installation must conform to all applicable local and national electrical codes and laws. The unit's NEMA 4X IP66 enclosure allows for indoor or outdoor applications.

  • Page 6: Temperature Sensor

    Model FPT 130 Single–Point Freeze Protection Heat–Trace Control Power Source and Contactor Connections Supply Voltage The FPT 130 operates from 100 – 277 V ac at 50/60 Hz. For line supply and load connections, use 10 AWG wires rated for at least 194 °F (90 °C). The connections are shown in Figure 3 and Figure 4. Contactor Ratings The heater contactor provides two (2) Form A (DPST) contacts rated for heater loads up to 30 A ac and 277 V ac.

  • Page 7: External Alarm

    Model FPT 130 Single–Point Freeze Protection Heat–Trace Control Temperature Sensor Thermistor (25076) The FPT 130 comes with a thermistor temperature sensor with a 20 ft. jacketed cable that has an operating range of −40 °F to 230 °F (−40 ˚C to 110 ˚C). See Figure 5 for proper wiring for the thermistor sensor.
  • Page 8 Model FPT 130 Single–Point Freeze Protection Heat–Trace Control Dip Switch Settings Figure 7. FPT 130 DIP switch identification Default settings Temperature Sensor Fault Mode Energize Heaters if the sensor fails De energize Heaters if the sensor fails Fire Protection Mode Fire Protection ON Fire Protection OFF Temperature Setpoint...

  • Page 9: Operation

    Model FPT 130 Single–Point Freeze Protection Heat–Trace Control Operation 30 °F, 38 °F, 45 °F, or 50 °F (−1.1 °C, 3.3 °C, The FPT 130 can maintain temperatures at setpoints of 7.2 °C, or 10 °C) . The heater will energize when the temperature drops below the designated setpoint. The heater will de-energize when the temperature reaches 2 °F (1 °C) above the setpoint.
  • Page 10 Model FPT 130 Single–Point Freeze Protection Heat–Trace Control ENVIRONMENTAL TECHNOLOGY, INC. 25165 Rev - A 6/17 (800) 234-4239 www.networketi.com 9 of 13...

  • Page 11: Dip Switches

    Specifications General User Interfaces Certifications UL 60730–1, UL 1053, CSA E60730–1:13 Pushbutton Test / Reset Environmental DIP switches Temperature setpoint Area of use Nonhazardous locations Thermistor fault mode Operating temperature −40 °F to 131 °F (−40 °C to 55 °C) Fire protection mode Indicators Enclosure Status indicator Power to the unit (Green solid)
  • Page 12 Contacting Environmental Technology, Inc. For assistance, contact Customer Service. Office hours are from 8:00 AM until 5:00 PM ET. Voice (800) 234-4239 (USA and Canada) or (574) 233-1202 (elsewhere) (888) 234-4238 (USA and Canada) or (574) 233-2152 (elsewhere) E-mail info@networketi.com Mail Environmental Technology, Inc.
  • Page 13 We manage heat ®...
