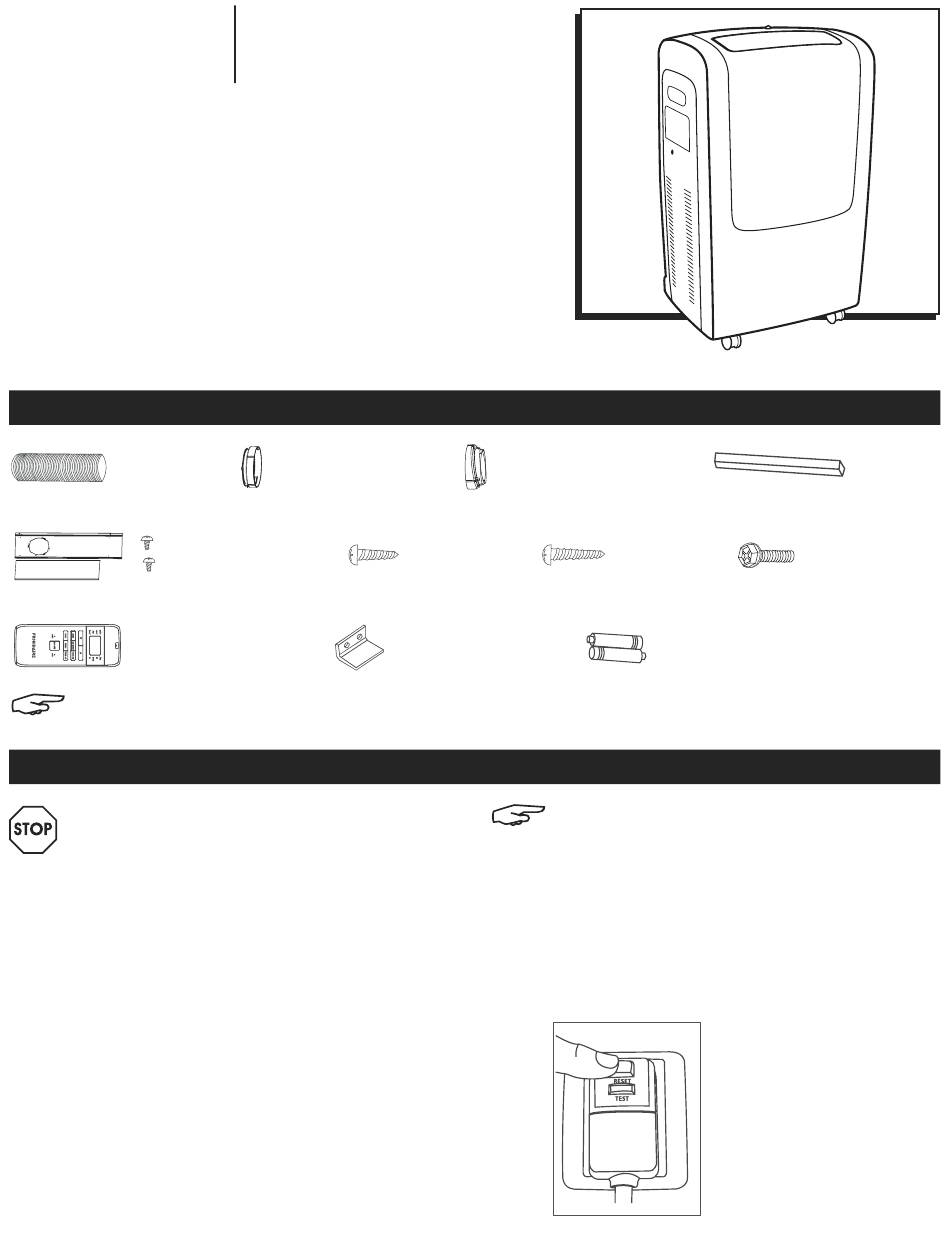

H-3778
π
H-3779
PORTABLE AIR
CONDITIONER
Exhaust Hose x 1
Window Sliding Kit x 1
Remote Control x 1
NOTE: Check that all accessories are included in the package
and please refer to the installation instructions for their usage.
READ THIS SECTION BEFORE ATTEMPTING TO
OPERATE AIR CONDITIONER. UNIT MUST BE
UPRIGHT ONE HOUR PRIOR TO OPERATING.
The power supply cord contains a current device that
senses damage to the power cord. To test your power
supply cord do the following:
1.
Plug in the Air Conditioner.
2. The power supply cord will have TWO buttons on the
plug head. Press the TEST button. You will notice a
click as the RESET button pops out.
3. Press the RESET button. Again you will notice a click
as the button engages. (See Figure 1)
4. The power supply cord is now supplying electricity to
the unit.
PAGE 1 OF 10
1-800-295-5510
uline.com
ACCESSORIES INCLUDED
Unit/Exhaust Adaptor A x 1
½" Screw x 4
Safety Lock x 1
OPERATING INSTRUCTIONS
Window/Exhaust Adaptor B x 1
¾" Screw x 2
Battery (For Remote Control) x 2
NOTE: Do not use this device to turn the unit
on or off. Always make sure the RESET button
is pushed in for correct operation. The power
supply cord must be replaced if it fails to reset
when either the TEST button is pushed, or it
cannot be reset. A new one can be obtained
from the product manufacturer. If power supply
cord is damaged, it CANNOT be repaired. It
MUST be replaced by one obtained from the
product manufacturer.
Figure 1
Foam Seal x 3
½" Screw Hex Head
Cap Screw x 2
0513 IH-3778
