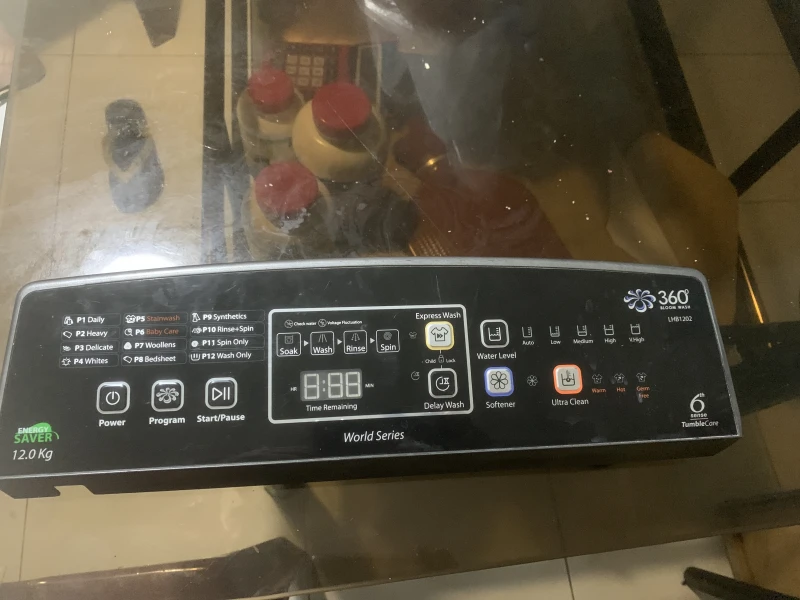

control panel board for LHB 1202, where is it available, and how much?

User image 683fad10227c1
0

Subscribe to Our Youtube Channel

Related Manuals for Whirlpool LHB Series

Summary of Contents for Whirlpool LHB Series

  • Page 1 LHB Series Product Introduction February 2017...
  • Page 2 Features • 6 Sense Technology • 360° Tumble Motion • Catalytic Soak • Baby Care with Hot Wash (in-build heater) • H Low Shower • ECO Spray • Quiet Comfort Technology • Auto Tub Clean • Automatic Softener Dispenser LHB1402 & LHB1202 •...
  • Page 3 Features Sense Technology: • Intelligent Sensors detect the laundry load, and allocate resources accordingly, selecting the shortest time and lowest energy and water consumption of energy for perfect cleaning. • SAVE TIME, WATER AND ELECTRICITY 360° Tumble Motion: • Uniquely-designed wash plate that produce wash motion which resembles the blooming motion of a flower.
  • Page 4 Features Catalytic Soak: • Washer uses 10%-30% less water to create concentrated detergent solution for soaking the clothes • The concentrated detergent solution is then heated to “activate” the detergent enzymes to further dissolve the detergent for effective cleaning of laundry •...
  • Page 5 Features Low Shower: • Uses a strong hydro-shower , clothes are washed re- circulation of water from top to bottom, to loosen dirt particles on fabric. • During washing, it sprays the clothes with detergent which loosen dirt particles on fabrics. During rinse, it spray clean water to ENSURE COMPLETE SOIL REMOVAL.
  • Page 6 Features Quiet Comfort Technolody: • The washer is built with noise reduction dampeners, a thicker cabinet, and hockey stick pattern at the side of the washer, for A QUIETER WASH. Auto Tub Clean: • Muck is a built-up of dirt, mold and bacteria, which can be found in any washing machine.

  • Page 7: Control Panel

    Control Panel Heavy: • For bulky items like bedsheets, towels and jeans. Hot/Warm wash for heavily-soiled and cold for normal-soiled Stainwash: • For heavily-soiled/stained laundry. For small load washing only. Baby Care • Suitable for cotton baby clothes and delicate fabrics. Tap water temperature is also available LHB1402 &...
  • Page 8 Control Panel Check Water Voltage Fluctuation Child Lock - No water supply - Supplied voltage is too - Press “Express Wash” and “Delay Wash” until its LED lights up. low/high - Repeat to deactivate - Machine resume automatically at normal Water Level voltage - Auto / manual selection of water level...
  • Page 9 Cycle/Program Guide NOTE: For washing performance complains, make sure to check if loading guide has been followed LHB1402 & LHB1202...

  • Page 10: Cycle Time

    Cycle Time NOTE 2: For washing performance complains, make sure to check if loading guide has been followed LHB1202...
  • Page 11 Cycle Time NOTE 2: For washing performance complains, make sure to check if loading guide has been followed LHB1402...
  • Page 12 Cycle Time LHB1402 & LHB1202...
  • Page 13 Features • 6 Sense Technology • UltraClean Technology • Hard Water Wash • ZPF Technology • Anti-Bacteral • Auto Tub Clean • Tempered glass Lid • SRP P26,998 LHB802 & LHB902...
  • Page 14 Features Sense Technology: • Intelligent Sensors detect the laundry load, and allocate resources accordingly, selecting the shortest time and lowest energy and water consumption of energy for perfect cleaning. • SAVE TIME, WATER AND ELECTRICITY UltraClean Technology: • Intelligent Hot Wash at different temperatures in range of 35°C –...
  • Page 15 Features Hard Water Wash : • Intelligent hard water software adapts the machine programs for washing in hard water • Giving better detergent action and soft, bright clothes, 30% BETTER CLEANING IN HARD WATER. ZFP Technology: • Fill washer tub 50% faster even when the water pressure is as low as 0.017MPa.
  • Page 16 Control Panel Anti Bac: • Hot washing kill germs and bacteria living on the cotton laundry and help to keep the clothes hygienic and clean. Wollens • Ensure that washable wollen clothes are gently washed through regulated water levels, gentle drum movement and low spin speed.
  • Page 17 Cycle/Program Guide NOTE 2: For washing performance complains, make sure to check if loading guide has been followed LHB802 & LHB902...
  • Page 18 Cycle Time NOTE 2: For washing performance complains, make sure to check if loading guide has been followed LHB802...
  • Page 19 Cycle Time NOTE 2: For washing performance complains, make sure to check if loading guide has been followed LHB902...
  • Page 20 Cycle Time LHB802 & LHB902...

  • Page 21: Technical Specifications

    Technical Specifications Model LHB1402 LHB1202 LHB902 LHB802 Series 360° BLOOMWASH 360° BLOOMWASH STAINWASH ULTRA STAINWASH ULTRA Capacity 14kg 12kg     Sense Max Spin Speed 740rpm 740rpm 740rpm 740rpm Wash System Variator Variator Agipeller Agipeller Hot Water Wash Cold –...
  • Page 22 Structure Comparison LHB802 & LHB902 LHB1202 & LHB1402 Softener Softener Dispenser Dispenser LHB802 & LHB1202 LHB902 Variator Agipeller...
  • Page 23 Structure Comparison LHB802 & LHB902...
  • Page 24 Structure Comparison LHB1402 & LHB1202...

  • Page 25: Model And Serial Number Location

    Model and Serial Number Location LHB1402, LHB1202, LHB902, LHB802...

  • Page 26: Pre-Installation Requirements

    Pre-installation Requirements Asian Top Load Washers • Faucet with thread (3/4” diameter) • Floor Drain (check recommendations below)

  • Page 27: Installation Procedure

    Installation Procedure Remove the Shipping Bracket...
  • Page 28 Servicing...

  • Page 29: Diagnostic Routine

    Diagnostic Routine ATR helps the Service Engineer to sort out the exact failure in the product  To invoke the Auto Diagnostic Test Routine the following sequence to be followed Pre-Condition:  Water should be connected at both the inlet valves. ...
  • Page 30 Diagnostic Routine Display Functionality To Be Done / Failure Diagnosis Check Monitored Indication • 7 Segment Display • Manual Inspection of LEDs or 7 segment Replacement of User • • • LEDs LEDs & 7 segment fails to Light up in interface display sequence...
  • Page 31 Diagnostic Routine Display Functionality To Be Done / Failure Diagnosis Check Monitored Indication • Inlet Valve & Pressure • Low Water Level • Check for Pressure sensor, sensor check • Fill will be done with LED glows with Its connection to PCB & valve for 15 litres Buzzer tone.
  • Page 32 Diagnostic Routine Displa Functionality To Be Done / Failure Diagnosis Check Monitored Indication • Spin • Motor CCW will be turned • • ON(Spin) •LEDs will be turned on in sequence • EOC (End-of-Cycle) • END chime • • • LEDs will be turned ON in sequence...

  • Page 33: Warranty Coverage

    Warranty Coverage Asian Washing Machines One (1) year parts and service...
  • Page 34 Hands-on!!!

This manual is also suitable for:

Lhb802Lhb902Lhb1402Lhb1202
