1. Link/Act (BLUE): This LED emits a steady light if the 10/100Mbps
(100BASE-TX) Ethernet is connected.
2. Transmission (BLUE): The LED will blink to indicate that the data is being
received or transmitted through the RJ-45 port.
LAN Indicator
2. Installing USB 2.0 Laptop Docking
Station with Video

2.0 Hardware Installation

1. Power on your computer and make sure that the USB and VGA ports are
enabled and working properly.
2. Put the Driver CD into CD-ROM drive of your PC or Notebook.
3. Connect the power adapter to the USB 2.0 Laptop Docking Station. (to
utilize full functionality)
4. Connect USB 2.0 Laptop Dock to the USB and VGA port on your computer
with the VGA/USB combo Y cable provided. (see Fig.3)
5. Windows will start detecting USB devices. Please follow the section below
that supports your particular operating system to install your USB 2.0 Laptop
Docking Station.

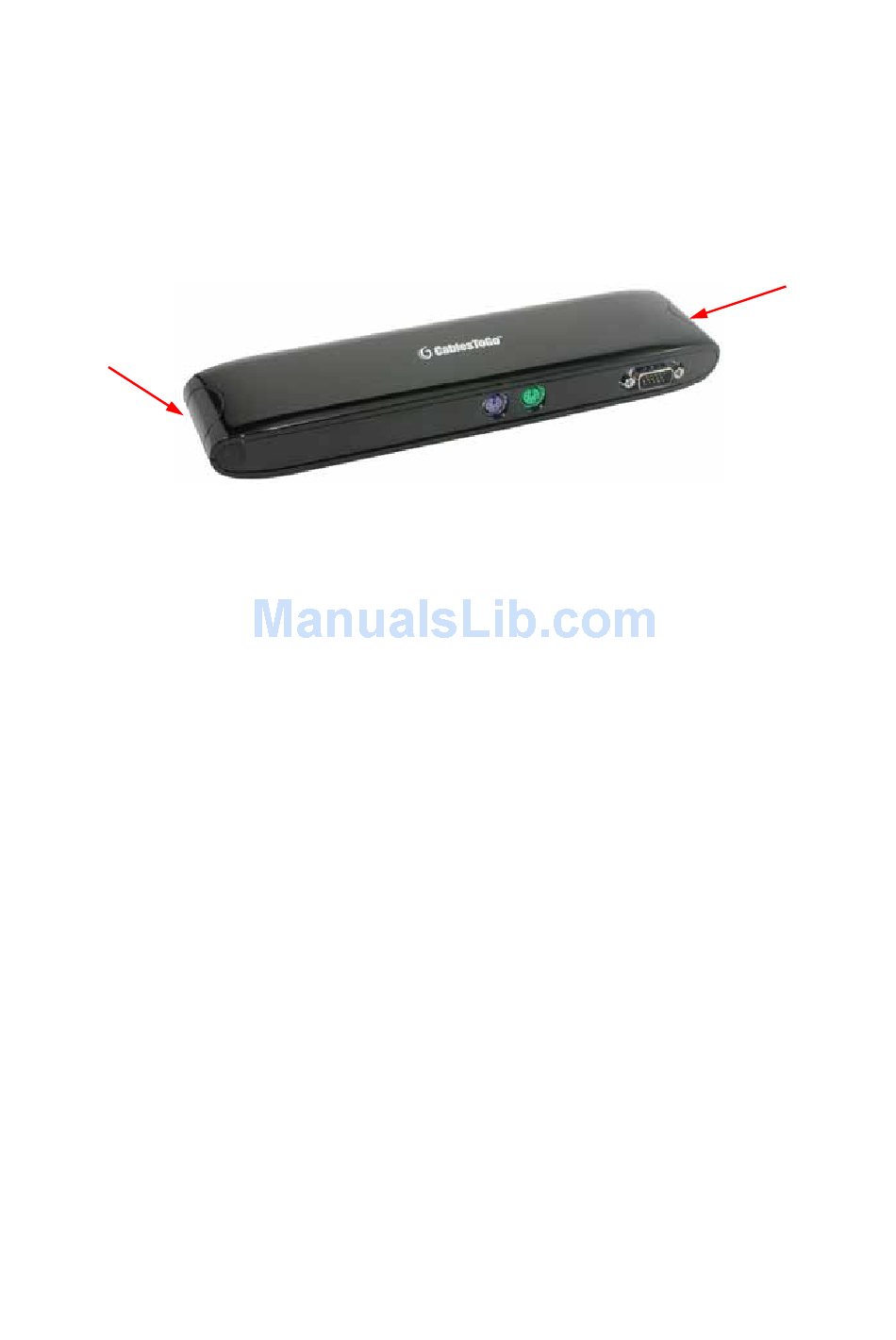

Fig.2
5
Power Indicator
