Available Functions; Led Indicator - Cables to Go 28652 User Manual

Power Connector VGA out

1.5 Available Functions

The available functions of USB 2.0 Laptop Docking Station depend on the status
of power supplied:
Bus powered
1. Connect the USB/VGA combo Y cable to your PC to provide bus power.
2. When you provide bus power only, the PS/2 mouse & keyboard, RS232,
printer and Ethernet ports will be enabled. However, the USB2.0 Hub will
only work in low power mode. Use of the external power adapter is
recommended for full use of functions.
Externally powered
1. Connect the power adapter to provide external power.
2. When you provide external power, the USB Downstream Ports can support
all USB devices, and full functionality of the device is enabled.

1.6 LED Indicator (

Power Indicator
The Power Indicator will turn BLUE as either bus power or external power is
supplied.
LAN Indicator

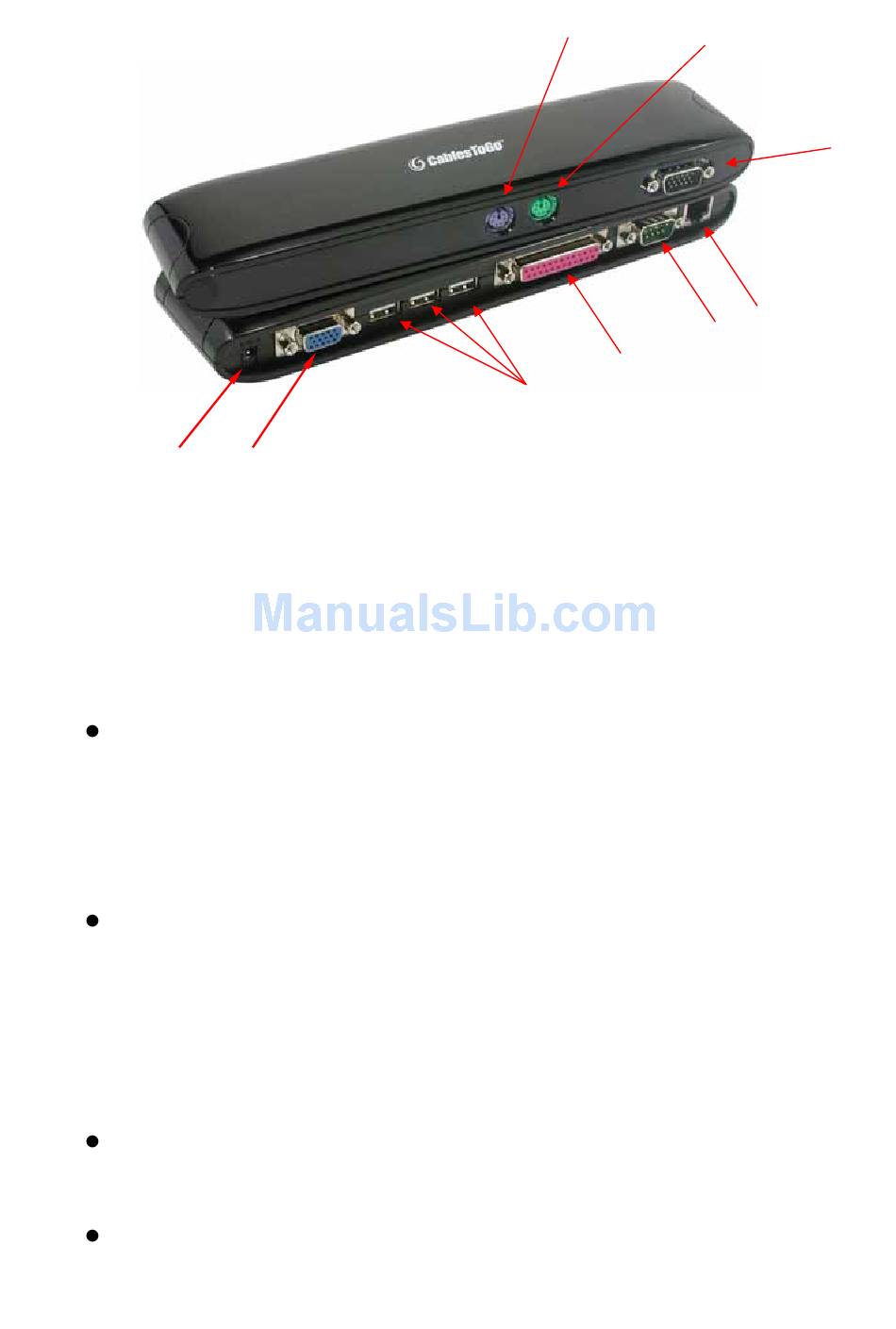

Fig.1.1
in
)
Ref. Fig.2
4
PS/2 Keyboard
Printer Port
USB 2.0 Hub
PS/2 Mouse
VGA in
RJ45 Ethernet
Serial Port
