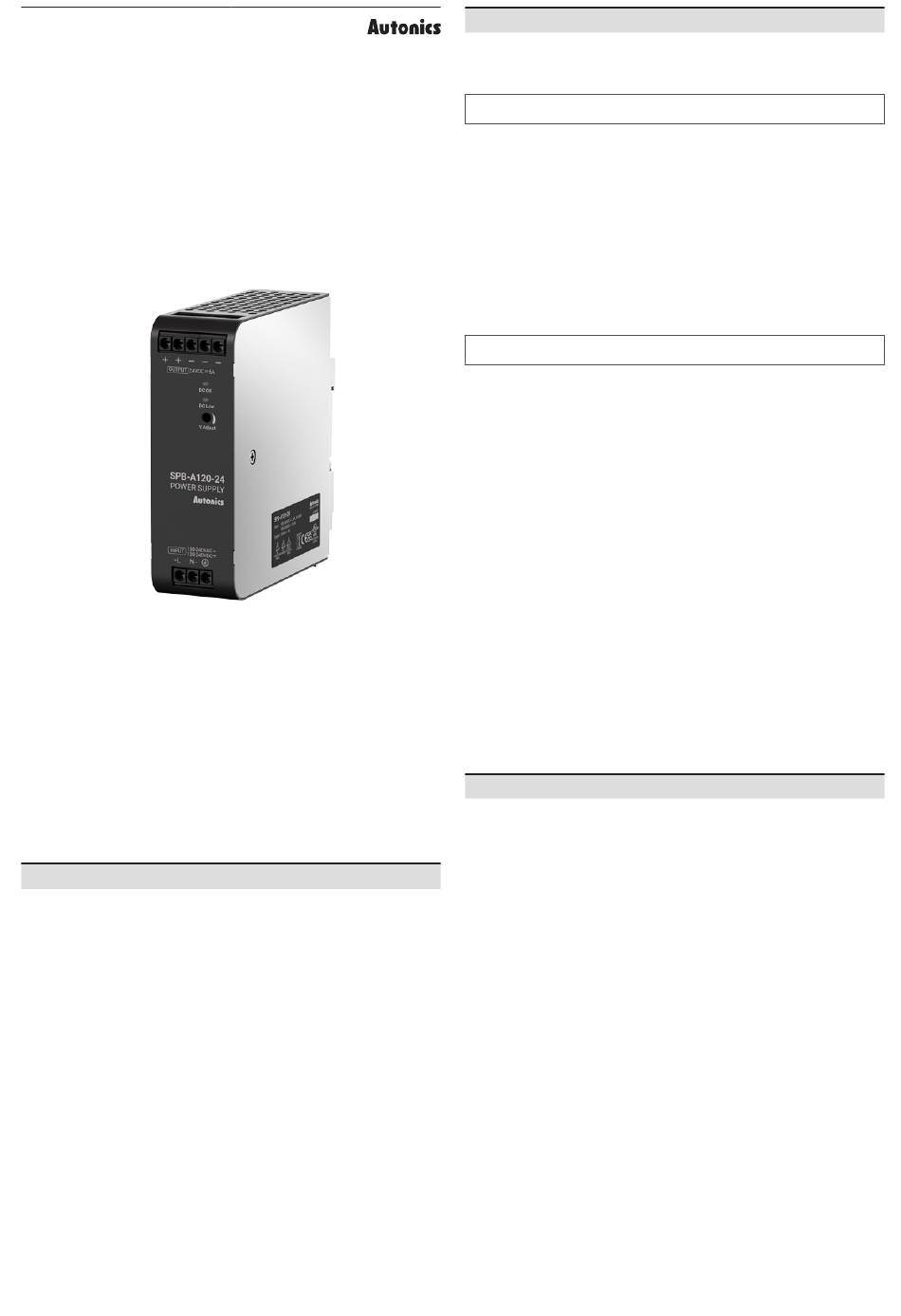

TCD230001AC
DIN-Rail Mount SMPS
SPB-A Series
PRODUCT MANUAL
For your safety, read and follow the considerations written in the instruction
manual, other manuals and Autonics website.
The specifications, dimensions, etc. are subject to change without notice for product
improvement. Some models may be discontinued without notice.
Major Features
• Various lineups for diverse applications (15 W ~ 480 W)
• Compact size for maximum space efficiency
• High conversion efficiency with PFC circuit (120 W, 240 W, 480 W)
• Outstanding environmental resistance
: Overheat / overcurrent / overvoltage prevention, wide temperature range
• Low output voltage indicator (red LED), output indicator (green LED)
• Simple and easy installation
ᜢ ᜹ ᜨ
Safety Considerations
• Observe all 'Safety Considerations' for safe and proper operation to avoid hazards.
• ᜸ symbol indicates caution due to special circumstances in which hazards may
occur.
᜸ Warning
Failure to follow instructions may result in serious injury or death.
01. Fail-safe device must be installed when using the unit with machinery that may
cause serious injury or substantial economic loss. (e.g. nuclear power control,
medical equipment, ships, vehicles, railways, aircraft, combustion apparatus, safety
equipment, crime / disaster prevention devices, etc.)
Failure to follow this instruction may result in personal injury, economic loss or fire.
02. Do not use the unit in the place where flammable / explosive / corrosive gas, high
humidity, direct sunlight, radiant heat, vibration, impact, or salinity may be present.
Failure to follow this instruction may result in explosion or fire.
03. Connect the ground completely to the PE terminal.
Failure to follow this instruction may result in electric shock or malfunction.
04. Do not connect, repair, or inspect the unit while connected to a power source.
Failure to follow this instruction may result in fire or electric shock.
05. Check 'Wiring Diagram' before wiring.
Failure to follow this instruction may result in fire, electric shock or product damage.
06. Do not disassemble or modify the unit.
Failure to follow this instruction may result in fire, electric shock or product damage.
᜸ Caution
Failure to follow instructions may result in injury or product damage.
01. When connecting the terminal, tighten the terminal screw with a tightening torque of 0.3
to 0.5 N m.
Failure to follow this instruction may result in fire or malfunction due to contact failure.
02. Use the unit within the rated specifications.
Failure to follow this instruction may result in fire, product damage or shortening the life cycle of
the product.
03. Use the device within the output derating curve by ambient temperature.
Failure to follow this instruction may result in product damage or shortening the life cycle of the
product.
04. Use dry cloth to clean the unit, and do not use water or organic solvent.
Failure to follow this instruction may result in fire or electric shock.
05. Keep the product away from metal chip, dust, and wire residue which flow into the unit.
Failure to follow this instruction may result in fire or product damage.
06. Do not touch the product during operation or for a certain period of time after stopping.
Failure to follow this instruction may result in burns.
07. Upon occurrence of an error, disconnect the power source.
Failure to follow this instruction may result in fire or product damage.
08. Insert the twisted pair cable completely into the terminal block.
Failure to follow this instruction may result in fire or product damage.
09. Do not use the inverter output as a voltage input.
Failure to follow this instruction may result in fire due to rapid switching.
10. Do not use the device in conditions where inrush current or overload occurs frequently.
If short circuit or overcurrent condition is continued, it may result in fire or product damage.
11. Use an external diode when using it to operate a motor, etc.
If the voltage output exceeds the rated output voltage range, it may result in malfunction or
product damage.
12. Use an external diode for serial/parallel operation.
Failure to follow this instruction may result in fire or product damage due to due to the reverse
voltage generated inside the SMPS when the load is short-circuited.
13. In case of serial/parallel operation, make sure that the current over the rated current
does not flow to the SMPS.
Failure to follow this instruction may result in product damage.
Cautions during Use
• Follow instructions in 'Cautions during Use'.
Otherwise, it may cause unexpected accidents.
• In the case of models with power of 120 / 240 / 480 W, noise may occur when power is input
until the internal circuit stabilizes.
• If large current flows, use multiple terminal blocks.
• Do not use more than two output voltages in parallel and series connection.
• Install the device in a well-ventilated area. Install a cooling fan additionally in a poorly
ventilated environment.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SPB-A Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Autonics SPB-A Series

  • Page 1 For your safety, read and follow the considerations written in the instruction Cautions during Use manual, other manuals and Autonics website. The specifications, dimensions, etc. are subject to change without notice for product improvement. Some models may be discontinued without notice.
  • Page 2: Ordering Information

    AWG 18 to 12 AWG 22 to 12 SPB-A060-24 AWG 20 to 12 0.3 to 0.5 N m • Unit: mm, For the detailed drawings, follow the Autonics website. SPB-A120-12 AWG 14 to 10 ■ SPB-A015-□ AWG 22 to 10...
  • Page 3: Specifications

    -|Transparent Guide|- Specifications Model SPB-A240-12 SPB-A240-24 SPB-A240-48 SPB-A480-24 SPB-A480-48 Input Voltage 100 - 240 VACᜠ / 90 - 350 VDCᜡ (allowable voltage: 85 - 264 VACᜠ) Indicator Output indicator (green), output low voltage indicator (red) 115 VACᜠ 2.5 A 4.8 A Current Over-current protection ≥...
  • Page 4: Block Diagram

    Sold Separately: Bracket Feature Data of Over-voltage Protection • Unit: mm, For the detailed drawings, follow the Autonics website. If excessive voltage of about 130% or more of the rated voltage is output, the output is cut off to protect the connected load.
  • Page 5: Inrush Current

    -|Transparent Guide|- Inrush Current e power supply voltage is input. A thermistor is used in the inrush current limiting circuit. ient interval so that the heat of the SMPS can be cooled down. Input voltage Inrush current AC Input current Power ON Start-up / Hold Time •...
