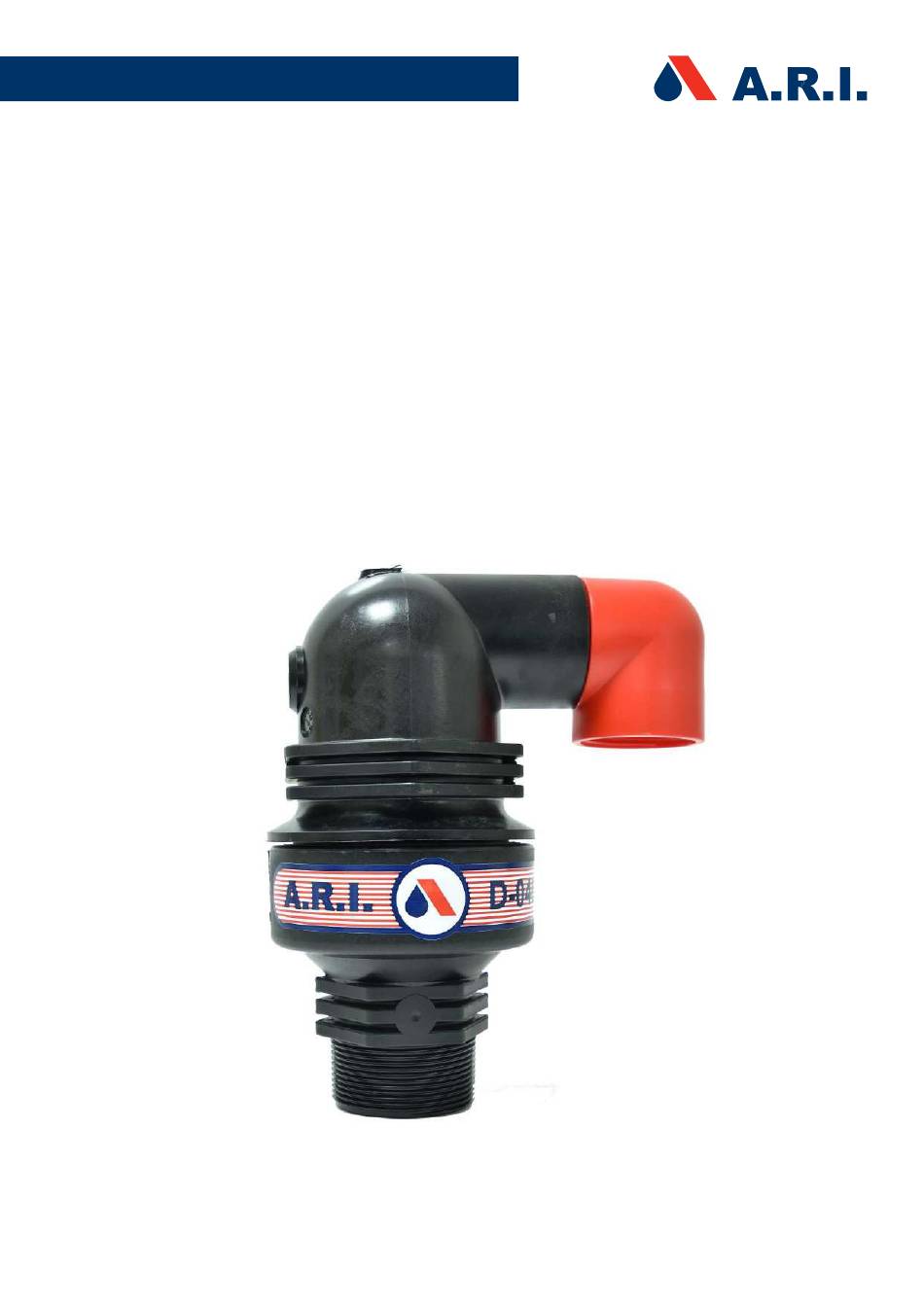

D-040.IOM.ENG02
Installation, Operation & Maintenance

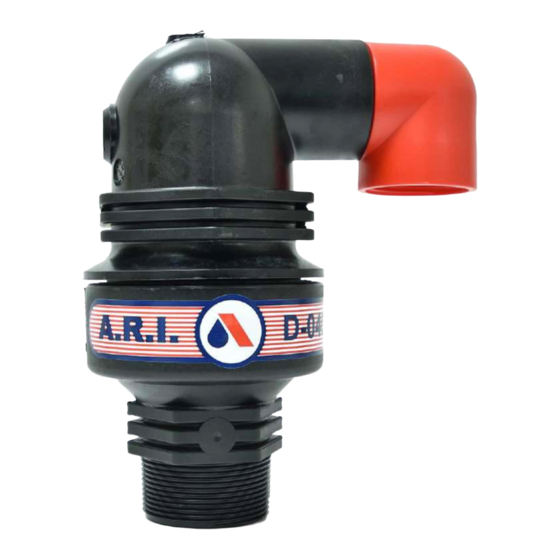

COMBINATION AIR VALVE
MODEL D-040
The following is a step by step narrated description of the A.R.I. D-040 Combination Air Valve installation,
operation and maintenance processes.
The D-040 series Combination Air Valve has the features of both an air release valve and an air & vacuum
valve. The air release component is designed to automatically release small pockets of air to the
atmosphere as they accumulate along a pipeline or piping system when it is full and operating under
pressure. Please consult A.R.I. for the pressure and temperature framework of this model specifications
table and for other products designed for hazardous liquids systems.
Advertisement
Table of Contents
Related Manuals for ARI D-040
Summary of Contents for ARI D-040
- Page 1 The D-040 series Combination Air Valve has the features of both an air release valve and an air & vacuum valve. The air release component is designed to automatically release small pockets of air to the atmosphere as they accumulate along a pipeline or piping system when it is full and operating under pressure.
-
Page 2: Table Of Contents
IOM D-040 TABLE OF CONTENTS 1. SAFETY INSTRUCTIONS ............................. 3 2. INSTALLATION ..............................6 3. OPERATION ..............................9 4. TROUBLE SHOOTING ............................9 5. PERIODIC MAINTENANCE ..........................10 5.1. Preparation ............................. 10 5.2. First Stage Maintenance ......................... 10 5.3. Second Stage Maintenance ........................13 6. -
Page 3: Safety Instructions
IOM D-040 1. SAFETY INSTRUCTIONS General 1. A.R.I. products always operate as components in a larger system. It is essential for the system designers, installers, operators and maintenance personnel to comply with all the relevant safety standards. 2. Installation, operation or maintenance of the product should be done only by qualified workers, technicians... - Page 4 IOM D-040 Installation 1. Install the product according to the detailed Installation Instructions provided with it by A.R.I. and according to the description given in this manual. 2. The user should install a manual Isolation Valve under the product's inlet port.
- Page 5 IOM D-040 Before returning to regular operation 1. Re-assemble any protection covers or protection mechanisms removed during service or maintenance operations. 2. Make sure that all the tools, ladders, lifting devices, etc. used during the maintenance procedures are taken away from the product area and stored.
-
Page 6: Installation
IOM D-040 2. INSTALLATION Important: Before performing any work on the air valve make sure that all workers on site are familiar with the safety instructions and the relevant local and general safety instructions and work regulations. 2.1. Installation Recommendations Single Air Valve on an Isolating Valve at 45°... - Page 7 IOM D-040 2.2. Conventions and Measurements This paragraph presents and explains the terms and measurements used for the Installation process. Isolation Valve D = Diameter of pipeline d = diameter of riser H = Height of riser on the pipeline (Measured from crown of pipeline) •...
- Page 8 3. Install an isolating valve below the air valve, connected by a riser to the crown of the pipe. 4. The D-040 combination air valve should be installed vertically on a riser on the crown of the pipeline.
-
Page 9: Operation
3. OPERATION The D-040 series Combination Air Valve has the features of both an air release valve and an air & vacuum valve. The air release component is designed to automatically release small pockets of air to the atmosphere as they accumulate along a pipeline or piping system when it is full and operating under pressure. -
Page 10: Periodic Maintenance
IOM D-040 5. PERIODIC MAINTENANCE Please note that the periodic maintenance of the air valve is an integral part of the proper pipeline maintenance regime; it should be maintained at least once a year in accordance with the quality and composition of the fluid in the system. - Page 11 IOM D-040 5.2.2 Removal of the Valve’s Body • Slowly turn the Body (1) counterclockwise, and remove it [2] • Remove the Discharge Outlet Elbow [3], [4] (snap-on or thread)
- Page 12 IOM D-040 5.2.3. Cleaning of the Air Valve • Thoroughly wash and clean the air valve components under clean running water to remove all grime; Pay special attention to the internal parts. • Thoroughly clean the O-ring (replace it if needed [1].
-
Page 13: Second Stage Maintenance
IOM D-040 5.3. Second Stage Maintenance Perform if the first stage doesn't solve the leak, if one of the seals or inner parts need replacement or for periodic maintenance to thoroughly clean the valve. 5.3.1. Releasing Pressure • Shut the isolating valve located on the riser under the air valve •... - Page 14 IOM D-040 5.3.3. Disassembly of the Float • Hold the Body, turn it to the side [1] and remove the Clamping Stem [2] and the Float [3] (together with the Rolling Seal...
- Page 15 IOM D-040 Cleaning and inspecting the components 5.3.4. • Thoroughly but gently wash and clean all the components under clean running water. Pay attention to the sealing area inside the Body. • Visually check the condition of the Rolling Seal [1] & [2]. If any cracks or tears are found remove it from the Float and replace it.
- Page 16 IOM D-040 • Pay attention to the correct position and direction and insert the tail end of the Rolling Seal Assembly into the groove on the Float [5]. • Gently pull the Rolling Seal Assembly until it is partially inserted into the Float grove. Use the 4.5mm Roll Pin Punch to push the Rolling Seal Assembly to the middle of the Float [6] and align the middle of the Rolling Seal Assembly tail with the midline of the Float [7].
- Page 17 IOM D-040 5.3.5. Reassembling the Operating Valve • Dip the head end of the Rolling Seal into the liquid soap solution [1] • Reassemble the Operating Valve by inserting the loose end of the Rolling Seal into its designated groove in the Body [2] &...
- Page 18 IOM D-040 5.3.6. Assembly and Testing for Leaks • Reassemble the air valve in reverse order of chapter 5.2. • Slowly open the isolating valve located on the riser under the air valve. • Look for leaks in the Outlet Discharge Elbow.
-
Page 19: Assembly Bom Table And Drawing
IOM D-040 6. ASSEMBLY BOM TABLE AND DRAWING Body Discharge Outlet Elbow Clamping Stem Float Rolling Seal Assembly O-ring Base... -
Page 20: Limited Warranty
IOM D-040 7. A.R.I. LIMITED WARRANTY A.R.I. manufactured products are guaranteed to be free from defect in material and/or workmanship and to perform as advertised when properly installed, used and maintained in accordance with current instructions, written or verbal. Should any item prove defective within the time period set forth for that item(s), but in any case, not later than within 5 (five) years of that product having left A.R.I.’s premises, and subject to receipt by...
