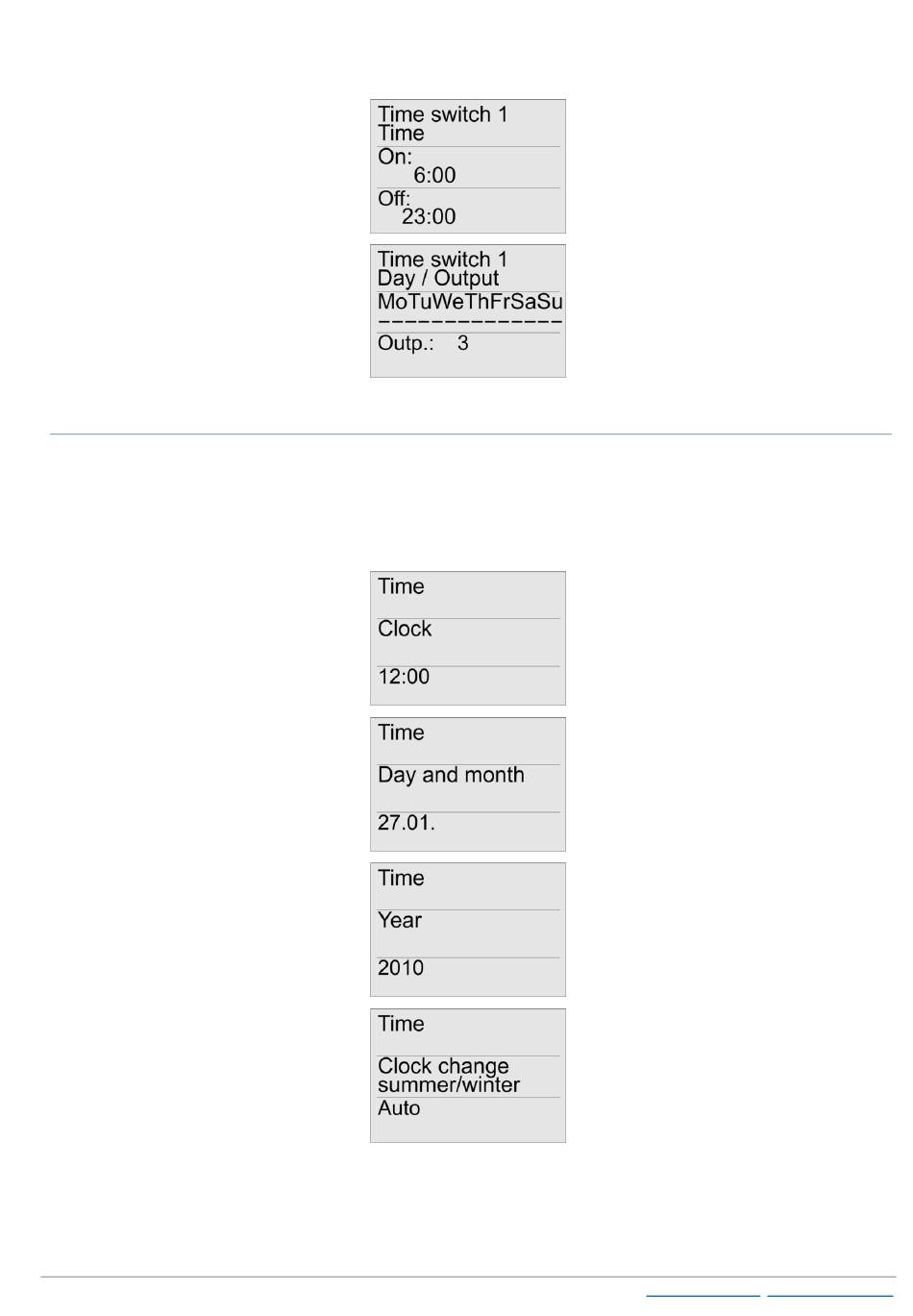

PARAMETERIZATION OF TIME SWITCH
In total, there are 8 times by which the integrated time switch can be configured. The times can be field assigned to every output and weekday.
Time switch 1...8 (time)
Time setting for the corresponding time switch.
Time Switch 1...8 (output)
Assignment of the individual week days and outputs
for the corresponding time switch.
»
SETTING OF TIME AND WEEKDAY
The internal clock of the STC-DO8 is set via the menu "Time". Therefore, the sub-menus "Clock", „Day and month", „Year" and "clock change" are
available.
To make sure that the clock is also working correctly after a power failure, the STC-DO8 has an integrated energy buffer supplying the internal
clock automatically for >24 hours.
Time
Setting of current time.
Day and Month
Setting of current date.
Year
Setting of current year.
Clock Change (summer/winter)
Setting of clock change (summer/winter) mode.
Thermokon Sensortechnik GmbH, Platanenweg 1, 35756 Mittenaar, Germany tel: +49 2778 6960-0 fax: -400
STC-DO8_Typ3_EasySens_Datasheet_en.docx © 2021
Factory setting: 6:00 ON and 23:00 OFF
Key F3 reverses the selection of the weekday
chosen. F4 selects a weekday. F5 reverses the
selection of the output/channel chosen. F6 selects
an output.
Example:
By means of this setting the time switch 1 is
activated on all 7 weekdays and is assigned to
3.
output
