Installation
Section 2
This color monitor supports multiple operating platforms such as IBM
compatible, Macintosh family. This section gives the details on pin assignment
of the input connectors and the Preset Timing Chart of prevailing video
standards are included in this section for your reference.

2.1 Pin Assignment Table

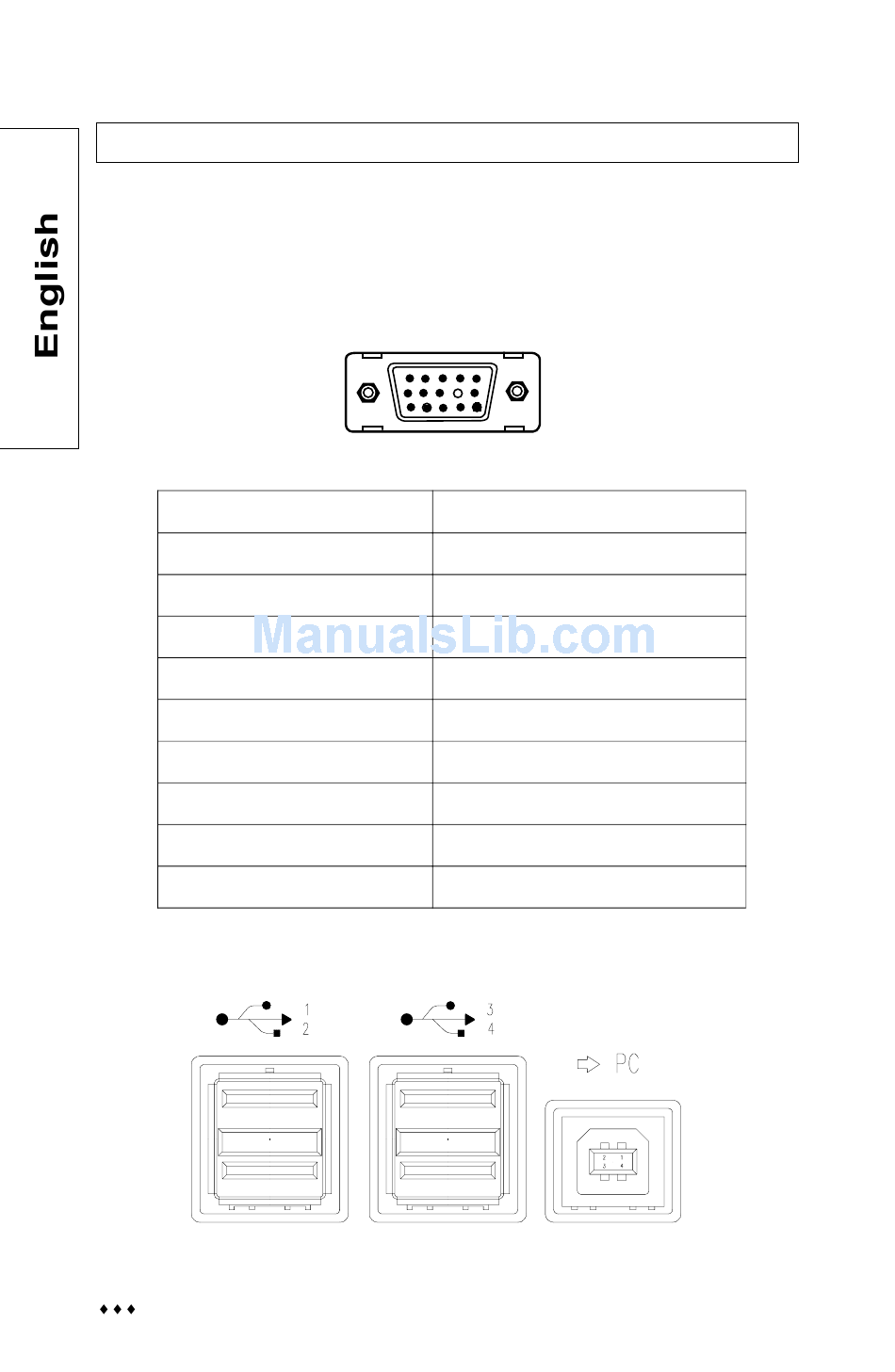

1. Pin Assignments of the Mini- D-15 Connector
Red Video
Green Video
Blue video
Horizontal sync
Vertical Sync
Ground
No Connection
SDA (DDC)
SCL (DDC)
2. USB Connectors
8
1
6
11
MALE MINI D-15
Signal
5
10
15
Mini D-SUB15 Pin
1
2
3
13
14
4,5,6,7,8,10,11
9
12
15
