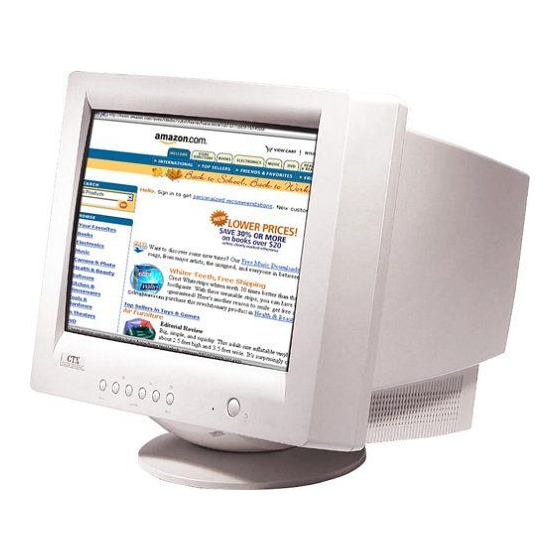

CTX VL950 User Manual

Ctx vl950: user guide
Hide thumbs
Table of Contents

Advertisement

Quick Links

Important Safety Instructions

1.
Please read carefully all of these instructions below and keep the
manual for later use.
2.
Please install the swivel base below this product before it comes
into use.
3.
The voltage ratings and the rated frequency are on the overlay
centered at rear side of this product. Do not connect with any source
of other voltage or frequency and please follow all warnings and
instructions marked on the product.
4.
Unplug this product from the wall outlet before cleaning and use a
damp cloth to clean it. Do not use liquid cleaners or aerosol
cleaners.
5.
Do not expose this product to rain or moisture.
6.
Do not place this product on an unstable cart, stand, or table. The
product may fall, causing serious damage to the product.
7.
Do not block or cover ventilating openings with cloth or other
material. Neither should this product be placed near or over a
radiator or a heat register, nor should the product be placed in a
built-in installation unless proper ventilation is provided.
8.
This product is equipped with a 3-wire grounding type plug. This
plug will only fit into a grounding-type power outlet. This is a safety
feature. If you are unable to insert the plug into the outlet, contact
your electrician to replace your obsolete outlet. Do not defeat the safety
purpose of the grounding-type plug. Choose a Tandem Blade
attachment plug configuration power cord for 230V AC input.
Due to the safety requirements of different areas, please select a
suitable power cord according to the following rules, in addition
to the electric rating:
A. Northern America area: Please select a UL listed and CSA
certified power cord.
B. Germany: Please select a VDE certified power cord.
C. Nordic countries: Please select a power cord certified by
SEMKO, NEMKO, DEMKO or FIMKO.
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VL950 and is the answer not in the manual?

Questions and answers

Related Manuals for CTX VL950

Summary of Contents for CTX VL950

  • Page 1: Important Safety Instructions

    Important Safety Instructions Please read carefully all of these instructions below and keep the manual for later use. Please install the swivel base below this product before it comes into use. The voltage ratings and the rated frequency are on the overlay centered at rear side of this product.
  • Page 2 D. The other areas: Please select a power cord suitable to the local power system and power outlet. Usually a suitable power cord is provided by the manufacturer, while this product is sold. However, this product is sometimes, resold or transported to another area of different power system and safety requirements, please pay attention to the selection of a suitable power cord.

  • Page 3: Table Of Contents

    1.2 Removing or Installing the Tilt/Swivel Base ... 5 1.3 Feature Highlights ... 5 1.4 Specifications ... 6 1.5 Recommended Use of the Monitor ... 7 Section 2 Installation ... 8 2.1 Pin Assignment Table ... 8 2.2 Preset Timing Chart ... 9 Section 3 Controls and Adjustments ...

  • Page 4: Section 1 Introduction

    The design of the monitor is also ergonomics concerned, in addition to the friendly controls and user comfort features, the emission level of electric and magnetic field is kept low to meet the Swedish MPR II standard.

  • Page 5: Removing Or Installing The Tilt/Swivel Base

    Flat and square screen reduces image distortion and glare. • Full feature digital control and multi-lingual OSD system allows easy adjustment of geometry and color. Besides the monitor provides even trapezoid, parallelogram, side-pin, pin-balance,moire and rotation adjustments for user to fine-tune the picture image.

  • Page 6: Specifications

    • The monitor consumes 65 W to 130 W depending on the display content in normal operation, when the power saving mode is activated, it con- sumes less than 15 W in "stand-by" mode, less than 15 W in "suspend"...

  • Page 7: Recommended Use Of The Monitor

    1.5 Recommended Use of the Monitor When setting up and using the monitor, pay special attention to the following for optimum performance. • Do not use your monitor against a bright background or where sunlight or other light sources will shine directly on the screen.

  • Page 8: Section 2 Installation

    Installation Section 2 This color monitor supports multiple operating platforms such as IBM compatible, Macintosh family. This section gives the details on pin assignment of the input connectors and the Preset Timing Chart of prevailing video standards are included in this section for your reference.

  • Page 9: Preset Timing Chart

    * Bµs (Pulse Width) should be more than 0.5 µs. To reduce visual tiredness and eye strain, choice of the higher refreshed mode is preferred. Note:This monitor is equipped with a micro-processor which allows user to set his own preferred mode(s) beyond those listed below.

  • Page 10: Section 3 Controls And Adjustments

    ENERGY STAR low power state definition. When first power on and input signal into the monitor, the power save function remains in active, the function will then be triggered when the input signal is cut off by the computer...

  • Page 11: How To Use On-Screen Adjustment

    3.2 How To Use On-Screen Adjustment (1) Press "MENU" key to open the On-Screen menu function. Seven adjustment functions will appear on the On-Screen menu. Press "MENU" key to scroll selections from top-down sequence. Press "+", "–", " ", " " to activate the preferred adjustments. Position A.
  • Page 12 F. COLOR: 1. By pressing the " Position settings of mode 1,2 and 3 are fixed. Only the mode 4 can be adjusted by the user. 2. To adjust the settings of mode 4, press the " of R/G/B gain contrast and the " + " key to increase or " – " to decrease its density.

  • Page 13: Energy Declaration

    3.3 Energy Declaration This monitor is equipped with a function for saving of energy which supports the VESA Display Power Management Signaling (DPMS) standard. This means that the monitor must be connected to a computer which supports VESA DPMS to fulfil the requirements in the NUTEK specification 803299/94. Time settings are adjusted from the system unit by software.

  • Page 14: Section 4 Trouble-Shooting

    • Power Switch should be in the ON position and the power cord should be connected. No picture • Check the color of the power LED indicator, if it is orange, then the monitor is in the power saving mode.
