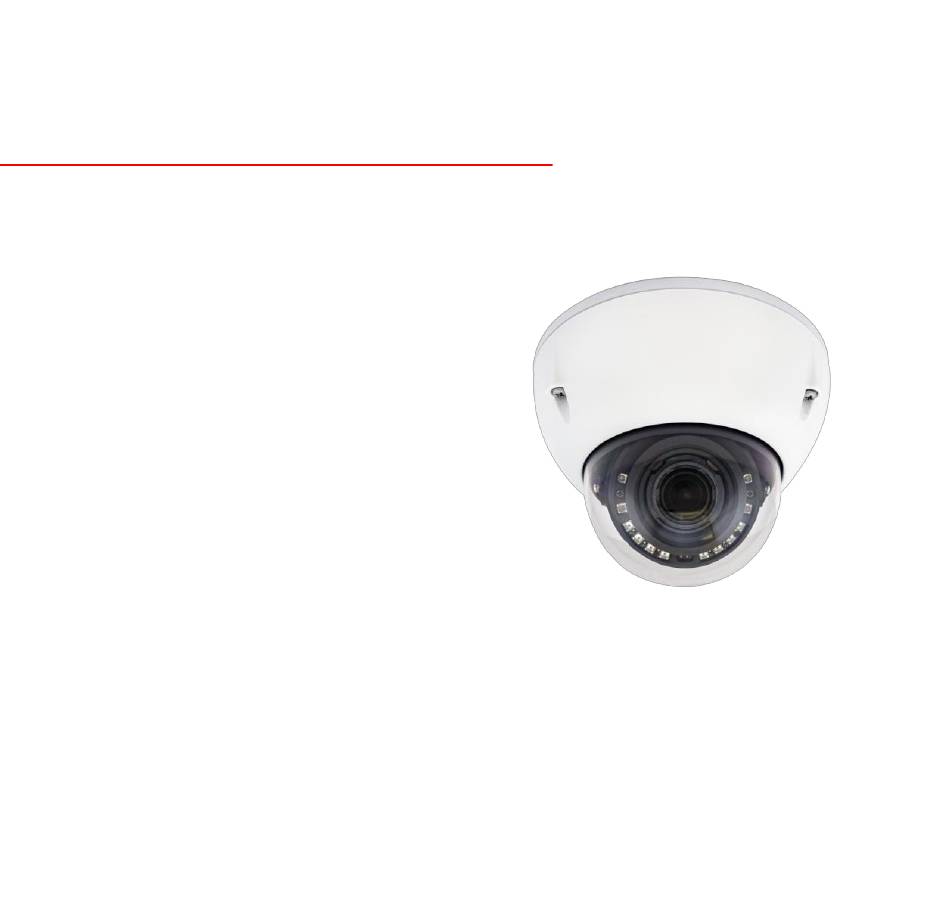

- Page 1 AI-Vue Camera Dome Quick Start Guide Copyright ©Ability Enterprise Co., Ltd. All rights reserved. Quick Start Guide Ver：01...
-
Page 2: Start To Use
AI-Vue Camera Quick Start Guide 1. Start to Use 1.1 Accessing via Web Browser Default IP address User name Password https://192.168.0.11 admin AbAi.Camera1 1.2 Appearance Description The overview of the dome camera is shown below: RJ45 Plug... - Page 3 AI-Vue Camera Quick Start Guide Power terminal Reset Button I/O terminal Micro SD...
- Page 4 AI-Vue Camera Quick Start Guide 1.3 Packing list Component Camera Drilling sticker Power terminal Crimping terminal （support 0.75mm2 and 1.0mm2 cable） Waterproof connector for network cables Quick Start Guide Desiccant packet Expansion tube Tapping screw...
-
Page 5: Installation
AI-Vue Camera Quick Start Guide 2. Installation 2.1 Note 2.1.1Make sure the device in the package is in good condition and all the assembly parts are included. 2.2 Reset Use the phillips screwdriver to remove the camera top cover. Step 1： ... -
Page 6: Micro Sd Card Installation
AI-Vue Camera Quick Start Guide Step 2： The SD card slot supports only class 6 or higher Micro SD card. To replace a Micro SD card, the device must be powered off. Otherwise, system exception may occur. When a Micro SD card is used for the first time, log in to the web client of the device and format the Micro SD card. - Page 7 AI-Vue Camera Quick Start Guide 2.4 Ceiling Mount & Wall Mount Step 1: Confirm that the cable outlet on the wall is large enough for the pigtails to pass through. Affix the drilling sticker to the camera installation position and ensure that the center of the sticker matches the cable outlet on the wall.
- Page 8 AI-Vue Camera Quick Start Guide Step 3: Connect the external cabling to camera pigtails, insulate the connections (see Cable Connections), and feed the cabling through the cable entry on the wall. Fasten the tapping screws. Make sure the cable outlet at the camera base is installed facing downwards and is sealed with waterproof glue to prevent water from getting into the camera.
-
Page 9: Cable Connection
AI-Vue Camera Quick Start Guide 2.5 Cable connection 2.5.1 For safety precautions The lightning arrester must be installed and grounded if you install camera outdoor. Strong and weak current cables must be kept at least 5 cm apart from each other. When connecting the cables to the device, take care to avoid connecting strong current cables to weak current interfaces or you will damage your device. - Page 10 AI-Vue Camera Quick Start Guide 2.5.3 Ground cable installation The ground impedance cannot exceed 5 ohms. 2.5.4 Audio and alarm cable It is recommended that twisted pair cables be used as alarm cables. The diameter of the cable core ranges from 22AWG to 28 AWG. The impedance of the entire cable is less than or equal 100 ohms.
- Page 11 AI-Vue Camera Quick Start Guide 2.5.5 Network cable Fix the network cable on camera is shown below 2.5.6 Network cable, audio cable and alarm cable installation Fix the network cable and audio cable on cable management position is shown below Network cable Network cable Audio, alarm cable...
-
Page 12: Network Cable Installation
AI-Vue Camera Quick Start Guide 2.6 Network cable installation Step 1: Pass the network cable and audio alarm cable through the left and right holes on the bottom of the camera and then pass through the rubber clamping ring, plastic clamping jaws, metal locking nut is show below. - Page 13 AI-Vue Camera Quick Start Guide Step 2: Insert the Rubber clamping ring, Plastic clamping jaws and Metal locking nut to left and right side of camera. And tighten metal locking nut by wrench (HEX-22mm), shown below Step 3: Fix the network cable and audio cable on cable management position is shown below。...
- Page 14 AI-Vue Camera Quick Start Guide Step 4: Waterproof and insulate all cables including power cables, network cables, and unused pigtails. Wrap one layer of insulation tape around each cable joint. Stretch the waterproofing tape evenly to twice its original length. Then apply it for three layers from bottom to top, from top to bottom, and from bottom to top again.
- Page 15 AI-Vue Camera Quick Start Guide 2.7 Check Item Please confirm the following to ensure that the equipment is installed correctly. Check Item Result All screw fully tightened The camera is securely installed to the mount or wall The ambient temperature meets the device specifications. Insulation and waterproofing measures have been taken to protect cables installed in humid environments, and the drip loops are in correct positions.
- Page 16 AI-Vue Camera Quick Start Guide Declaration of toxic and hazardous substances in electronic and electrical products 設備名稱(Equipment name) : 型號（型式）Type designation (Type): AI-Vue 自動對焦槍型網路攝影機 VS6NLB0/VS6NN60 限用物質及其化學符號 Restricted substances and its chemical symbols 單元 鉛 汞 鎘 六價鉻 多溴聯苯 多溴二苯醚 Ｕnit Hexavalent Polybrominated Polybrominated...
