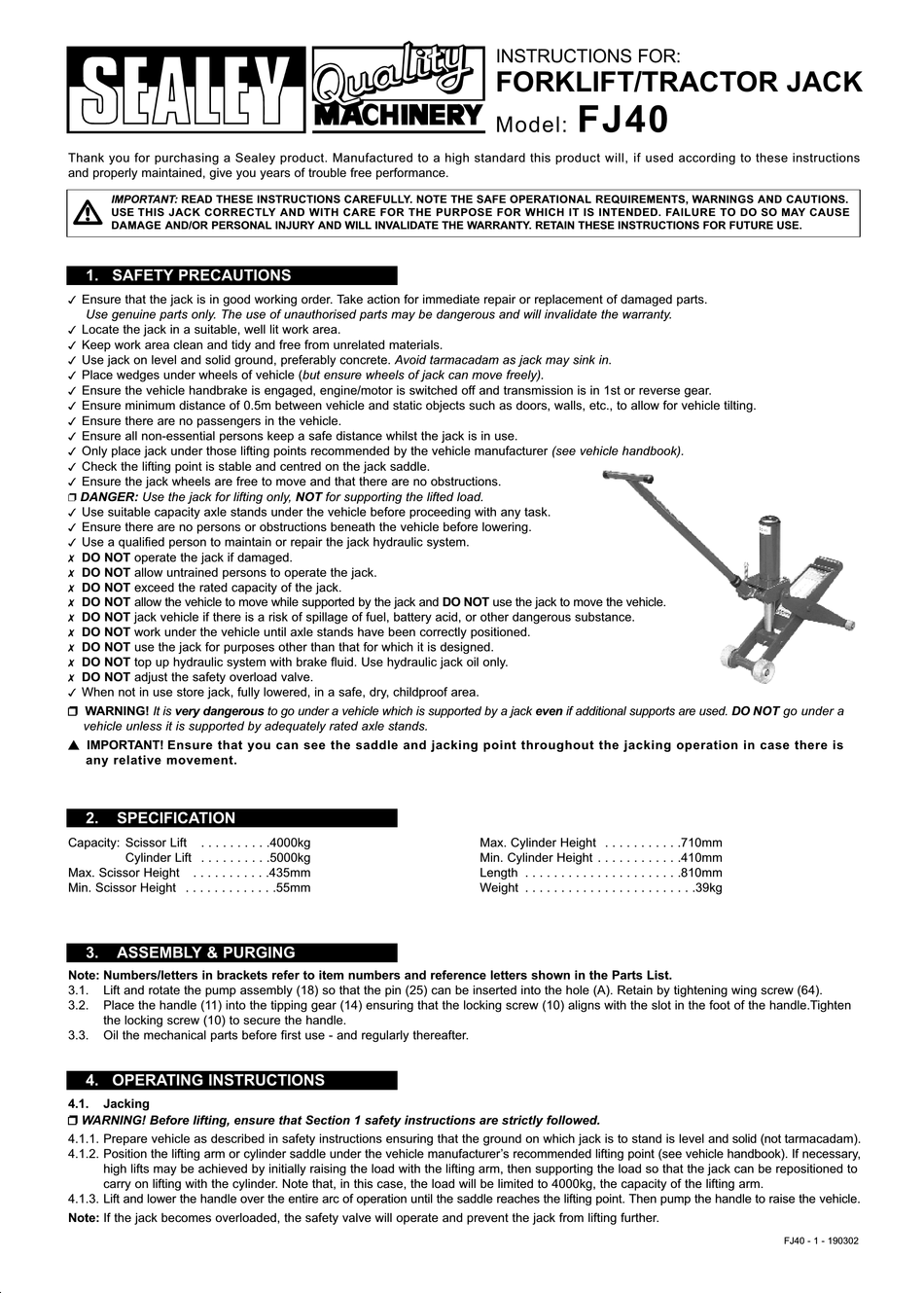

Sealey FJ40 Instructions

Thank you for purchasing a Sealey product. Manufactured to a high standard this product will, if used according to these instructions
and properly maintained, give you years of trouble free performance.
IMPORTANT: READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS AND CAUTIONS.
USE THIS JACK CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE
DAMAGE AND/OR PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY. RETAIN THESE INSTRUCTIONS FOR FUTURE USE.
1. SAFETY PRECAUTIONS
Ensure that the jack is in good working order. Take action for immediate repair or replacement of damaged parts.
!
Use genuine parts only. The use of unauthorised parts may be dangerous and will invalidate the warranty.
Locate the jack in a suitable, well lit work area.
!
Keep work area clean and tidy and free from unrelated materials.
!
Use jack on level and solid ground, preferably concrete. Avoid tarmacadam as jack may sink in.
!
Place wedges under wheels of vehicle (but ensure wheels of jack can move freely).
!
Ensure the vehicle handbrake is engaged, engine/motor is switched off and transmission is in 1st or reverse gear.
!
Ensure minimum distance of 0.5m between vehicle and static objects such as doors, walls, etc., to allow for vehicle tilting.
!
Ensure there are no passengers in the vehicle.
!
Ensure all non-essential persons keep a safe distance whilst the jack is in use.
!
Only place jack under those lifting points recommended by the vehicle manufacturer (see vehicle handbook).
!
Check the lifting point is stable and centred on the jack saddle.
!
Ensure the jack wheels are free to move and that there are no obstructions.
!
DANGER: Use the jack for lifting only, NOT for supporting the lifted load.
F
Use suitable capacity axle stands under the vehicle before proceeding with any task.
!
Ensure there are no persons or obstructions beneath the vehicle before lowering.
!
Use a qualified person to maintain or repair the jack hydraulic system.
!
DO NOT operate the jack if damaged.
%
DO NOT allow untrained persons to operate the jack.
%
DO NOT exceed the rated capacity of the jack.
%
DO NOT allow the vehicle to move while supported by the jack and DO NOT use the jack to move the vehicle.
%
DO NOT jack vehicle if there is a risk of spillage of fuel, battery acid, or other dangerous substance.
%
DO NOT work under the vehicle until axle stands have been correctly positioned.
%
DO NOT use the jack for purposes other than that for which it is designed.
%
DO NOT top up hydraulic system with brake fluid. Use hydraulic jack oil only.
%
DO NOT adjust the safety overload valve.
%
When not in use store jack, fully lowered, in a safe, dry, childproof area.
!
F   WARNING! It is very dangerous to go under a vehicle which is supported by a jack even if additional supports are used. DO NOT go under a
vehicle unless it is supported by adequately rated axle stands.
p
I   IMPORTANT! Ensure that you can see the saddle and jacking point throughout the jacking operation in case there is
any relative movement.
s
2. SPECIFICATION
Capacity: Scissor Lift
Cylinder Lift . . . . . . . . . .5000kg
Max. Scissor Height
Min. Scissor Height . . . . . . . . . . . . .55mm
3. ASSEMBLY & PURGING
Note: Numbers/letters in brackets refer to item numbers and reference letters shown in the Parts List.
3.1. Lift and rotate the pump assembly (18) so that the pin (25) can be inserted into the hole (A). Retain by tightening wing screw (64).
3.2. Place the handle (11) into the tipping gear (14) ensuring that the locking screw (10) aligns with the slot in the foot of the handle.Tighten
the locking screw (10) to secure the handle.
3.3. Oil the mechanical parts before first use - and regularly thereafter.
4. OPERATING INSTRUCTIONS
4.1. Jacking
F WARNING! Before lifting, ensure that Section 1 safety instructions are strictly followed.
4.1.1. Prepare vehicle as described in safety instructions ensuring that the ground on which jack is to stand is level and solid (not tarmacadam).
p
4.1.2. Position the lifting arm or cylinder saddle under the vehicle manufacturer’s recommended lifting point (see vehicle handbook). If necessary,
high lifts may be achieved by initially raising the load with the lifting arm, then supporting the load so that the jack can be repositioned to
carry on lifting with the cylinder. Note that, in this case, the load will be limited to 4000kg, the capacity of the lifting arm.
4.1.3. Lift and lower the handle over the entire arc of operation until the saddle reaches the lifting point. Then pump the handle to raise the vehicle.
Note: If the jack becomes overloaded, the safety valve will operate and prevent the jack from lifting further.
p s p
. . . . . . . . . .4000kg
. . . . . . . . . . .435mm
INSTRUCTIONS FOR:
FORKLIFT/TRACTOR JACK
FJ40
Model:
Max. Cylinder Height . . . . . . . . . . .710mm
Min. Cylinder Height . . . . . . . . . . . .410mm
Length . . . . . . . . . . . . . . . . . . . . . .810mm
Weight . . . . . . . . . . . . . . . . . . . . . . . .39kg
FJ40 - 1 - 190302
