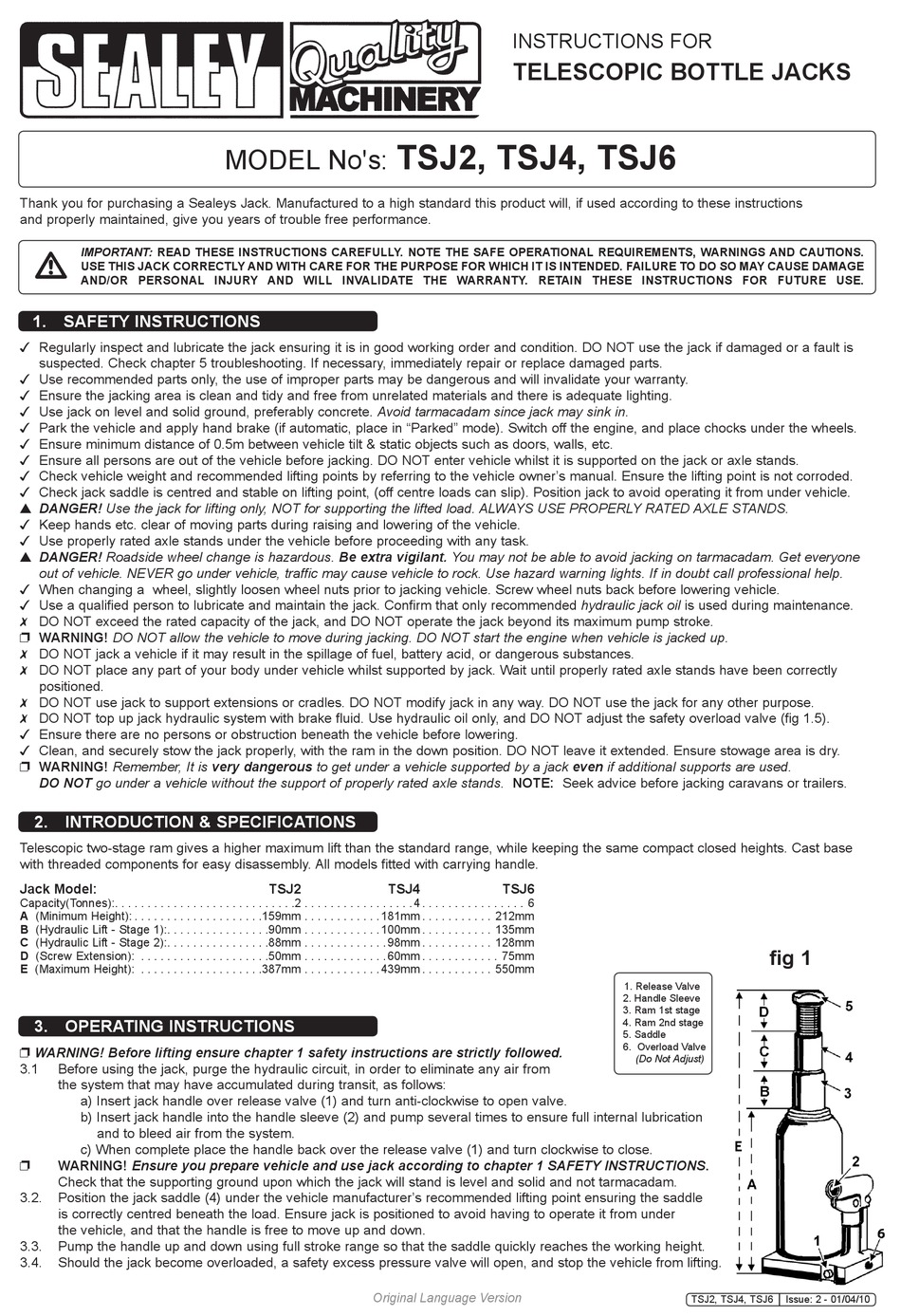

Sealey TSJ2 Instructions

Thank you for purchasing a Sealeys Jack. Manufactured to a high standard this product will, if used according to these instructions
and properly maintained, give you years of trouble free performance.
Important: Read these instRuctions caRefully. note the safe opeRational ReQuiReMents, WaRninGs and cautions.
use this jack coRRectly and With caRe foR the puRpose foR Which it is intended. failuRe to do so May cause daMaGe
and/oR peRsonal injuRy and Will invalidate the WaRRanty. Retain these instRuctions foR futuRe use.
1. safety instRuctions
 Regularly inspect and lubricate the jack ensuring it is in good working order and condition. DO NOT use the jack if damaged or a fault is
suspected. Check chapter 5 troubleshooting. If necessary, immediately repair or replace damaged parts.
 Use recommended parts only, the use of improper parts may be dangerous and will invalidate your warranty.
 Ensure the jacking area is clean and tidy and free from unrelated materials and there is adequate lighting.
 Use jack on level and solid ground, preferably concrete. Avoid tarmacadam since jack may sink in.
 Park the vehicle and apply hand brake (if automatic, place in "Parked" mode). Switch off the engine, and place chocks under the wheels.
 Ensure minimum distance of 0.5m between vehicle tilt & static objects such as doors, walls, etc.
 Ensure all persons are out of the vehicle before jacking. DO NOT enter vehicle whilst it is supported on the jack or axle stands.
 Check vehicle weight and recommended lifting points by referring to the vehicle owner's manual. Ensure the lifting point is not corroded.
 Check jack saddle is centred and stable on lifting point, (off centre loads can slip). Position jack to avoid operating it from under vehicle.
 DanGEr! Use the jack for lifting only, NOT for supporting the lifted load. ALWAYS USE PROPERLY RATED AXLE STANDS.
 Keep hands etc. clear of moving parts during raising and lowering of the vehicle.
 Use properly rated axle stands under the vehicle before proceeding with any task.
 DanGEr! Roadside wheel change is hazardous. Be extra vigilant. You may not be able to avoid jacking on tarmacadam. Get everyone
out of vehicle. NEVER go under vehicle, traffic may cause vehicle to rock. Use hazard warning lights. If in doubt call professional help.
 When changing a wheel, slightly loosen wheel nuts prior to jacking vehicle. Screw wheel nuts back before lowering vehicle.
 Use a qualified person to lubricate and maintain the jack. Confirm that only recommended hydraulic jack oil is used during maintenance.
 DO NOT exceed the rated capacity of the jack, and DO NOT operate the jack beyond its maximum pump stroke.
 WaRninG! DO NOT allow the vehicle to move during jacking. DO NOT start the engine when vehicle is jacked up.
 DO NOT jack a vehicle if it may result in the spillage of fuel, battery acid, or dangerous substances.
 DO NOT place any part of your body under vehicle whilst supported by jack. Wait until properly rated axle stands have been correctly
positioned.
 DO NOT use jack to support extensions or cradles. DO NOT modify jack in any way. DO NOT use the jack for any other purpose.
 DO NOT top up jack hydraulic system with brake fluid. Use hydraulic oil only, and DO NOT adjust the safety overload valve (fig 1.5).
 Ensure there are no persons or obstruction beneath the vehicle before lowering.
 Clean, and securely stow the jack properly, with the ram in the down position. DO NOT leave it extended. Ensure stowage area is dry.
 WaRninG! Remember, It is very dangerous to get under a vehicle supported by a jack even if additional supports are used.
Do not go under a vehicle without the support of properly rated axle stands. note: Seek advice before jacking caravans or trailers.
2. intRoduction & specifications
Telescopic two-stage ram gives a higher maximum lift than the standard range, while keeping the same compact closed heights. Cast base
with threaded components for easy disassembly. All models fitted with carrying handle.
jack Model:
Capacity(Tonnes):. . . . . . . . . . . . . . . . . . . . . . . . . . . .2 . . . . . . . . . . . . . . . . . 4 . . . . . . . . . . . . . . . . 6
a (Minimum Height): . . . . . . . . . . . . . . . . . . . .159mm . . . . . . . . . . . . 181mm . . . . . . . . . . . 212mm
b (Hydraulic Lift - Stage 1):. . . . . . . . . . . . . . . .90mm . . . . . . . . . . . . 100mm . . . . . . . . . . . 135mm
c (Hydraulic Lift - Stage 2):. . . . . . . . . . . . . . . .88mm . . . . . . . . . . . . . 98mm . . . . . . . . . . . 128mm
d (Screw Extension): . . . . . . . . . . . . . . . . . . . .50mm . . . . . . . . . . . . . 60mm . . . . . . . . . . . . 75mm
e (Maximum Height): . . . . . . . . . . . . . . . . . . .387mm . . . . . . . . . . . . 439mm . . . . . . . . . . . 550mm
3. opeRatinG instRuctions
 WarnInG! Before lifting ensure chapter 1 safety instructions are strictly followed.
3.1 Before using the jack, purge the hydraulic circuit, in order to eliminate any air from
the system that may have accumulated during transit, as follows:
a) Insert jack handle over release valve (1) and turn anti-clockwise to open valve.
b) Insert jack handle into the handle sleeve (2) and pump several times to ensure full internal lubrication
and to bleed air from the system.
c) When complete place the handle back over the release valve (1) and turn clockwise to close.
WaRninG! Ensure you prepare vehicle and use jack according to chapter 1 SaFEtY InStrUCtIonS.

Check that the supporting ground upon which the jack will stand is level and solid and not tarmacadam.
3.2. Position the jack saddle (4) under the vehicle manufacturer's recommended lifting point ensuring the saddle
is correctly centred beneath the load. Ensure jack is positioned to avoid having to operate it from under
the vehicle, and that the handle is free to move up and down.
3.3. Pump the handle up and down using full stroke range so that the saddle quickly reaches the working height.
3.4. Should the jack become overloaded, a safety excess pressure valve will open, and stop the vehicle from lifting.
MODEL No's:
tsj2 tsj4
Original Language Version
INSTRUCTIONS FOR
telescopic bottle jacks
tsj2, tsj4, tsj6
tsj6
fig 1
1. Release Valve
2. Handle Sleeve
3. Ram 1st stage
4. Ram 2nd stage
5. Saddle
6. Overload Valve
(Do Not Adjust)
TSJ2, TSJ4, TSJ6 Issue: 2 - 01/04/10
