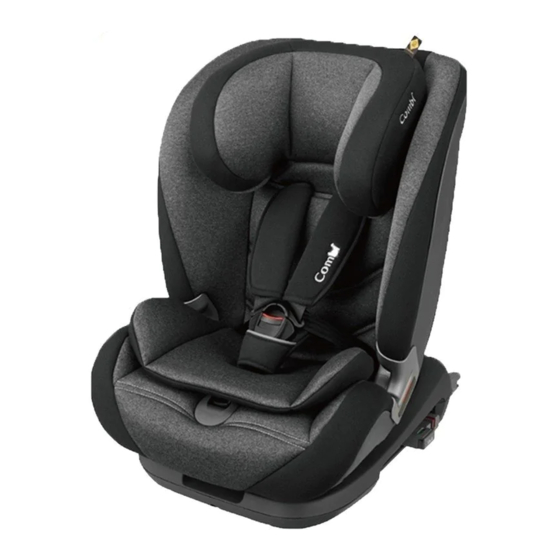

Combi Child Car Seat
SAVETREK
User Manual
For the safety of the child, please read this user manual carefully
before use and use the child car seat properly.
● Store this user manual in the user manual storage pocket on the
back of the main body.
This product is certified according to the UN R44/04 standard.
● Universal: Weight groups 1, 2, 3
● Applicable child weight: Infants and children weighing 9 kg or more to 36 kg or
less
● Group 1 (9 kg or more to 18 kg or less)
This product can be installed to vehicles with seats approved for installation of
ISOFIX child car seats.
● Group 2 and Group 3 (15 kg or more to 36 kg or less)
This product is suitable only for vehicles equipped with 3-point seatbelts certified
according to UN R16 or equivalent standards.
To avoid causing stress to the child, avoid continuous long-time usage
and give the child a break from the child car seat about once every hour.
CAUTION

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SAVETREK and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Combi SAVETREK

Summary of Contents for Combi SAVETREK

  • Page 1 Combi Child Car Seat SAVETREK User Manual For the safety of the child, please read this user manual carefully before use and use the child car seat properly. ● Store this user manual in the user manual storage pocket on the back of the main body.

  • Page 2: Table Of Contents

    Contents Before Use Before use ..................2 Name of parts ................3 Use conditions ................5 Applicable vehicle seats ............. 6 Types of vehicle seatbelts and cautions for use (when using the vehicle seatbelt) ..........7 Inapplicable vehicle seats ............

  • Page 3: Before Use

    Before use Thank you for purchasing this Combi child car seat. For the safety of the child, please read this user manual carefully before use and use the child car seat properly. 〈 〉 Use of the second-hand product ·DO NOT use the product with unknown use history, especially the product with unknown accident history.

  • Page 4: Name Of Parts

    Name of parts Check that all parts are present before use. ● Store the receipt (proof of purchase) together with this manual. Package contents ● Main body ● Inner cushion ● ISOFIX insertion guide ● User manual (this manual) Front Shoulder belt guide Insert tongue Headrest...
  • Page 5 ※ This manual uses simplified illustrations to help users easily understand operation and handling, and there may be slight differences from the actual product. Back Lot No. Adjustment lever on headrest (Group2・Group3) Adjustment lever on back of main body (Group1) Top tether Tether belt User manual...

  • Page 6: Use Conditions

    Use conditions Use the following modes according to the child’s weight. Mode Group 1 Group 2・Group 3 Use state Conditions 9 kg or more to 18 kg or less 15 kg or more to 36 kg or less Guidelines 70 cm to 105 cm 95 cm to 145 cm Age 1 year old to 4 years old Age 3 years old to 11 years old...

  • Page 7: Applicable Vehicle Seats

    Applicable vehicle seats When using in Group 1 mode (weight: 9 kg or more to 18 kg or less) This child car seat is an ISOFIX child car seat. It is intended for use in a vehicle equipped with ISOFIX anchors (bars), and has been certified according to the UN R44/04 standard.

  • Page 8: Types Of Vehicle Seatbelts And Cautions For Use (When Using The Vehicle Seatbelt)

    Types of vehicle seatbelts and cautions for use (when using the vehicle seatbelt) When using in Group 2 and Group 3 mode (weight: 15 kg or more to 36 kg or less) The method of installing the child car seat differs according to the type of seatbelt.

  • Page 9: Inapplicable Vehicle Seats

    Inapplicable vehicle seats Continue Do not use the child car seat if it cannot be secured firmly to the vehicle seat, even if none of the conditions noted below apply. ● Vehicle seat equipped with an airbag ● Vehicle seat facing backwards or sideways relative to the driving Installation is possible to a vehicle seat …...
  • Page 10 Inapplicable vehicle seats ※ Only when using in Group 2 ※ Only when using in Group 2 and and Group 3 mode Group 3 mode ● Vehicle seat with a 2-point ● Vehicle seat with a passive seatbelt. seatbelt. ※ What is a passive seatbelt? …...

  • Page 11: For Safe Use Of The Child Car Seat

    For safe use of the child car seat Continue DANGER Improper handling will result in imminent risk of death or serious injury. ● Do not seat a child who does not ● Do not install the child car seat satisfy the use conditions, or to a vehicle seat equipped with install the child car seat to an an airbag.
  • Page 12 For safe use of the child car seat Evacuation in case of emergency In case of accident or other emergency, an accompanying adult should press the buckle button to release the baby belt (when using in Group 2 and Group 3 mode, release the vehicle seatbelt) and evacuate the child from the vehicle immediately.
  • Page 13 Continue WARNING Improper handling may result in death or serious injury. ● The child car seat may suffer ● Do not leave the child in the structural damage in the event of vehicle unattended. On sunny collision or even if it is dropped days the cabin temperature may one time or falls from a high level.
  • Page 14 Contact Combi’s Customer Service Center for repair. ● When using in Group 2 and ● When using in Group 2 and...
  • Page 15 Also do not replace these parts with parts not specifically authorized by Combi for this product. (This may negatively affect safety performance in the event of a collision.) ●...
  • Page 16 For safe use of the child car seat ● Do not use the child car seat as a ● Do not operate or adjust the normal chair, as it may tip over or child car seat while driving. fall, possibly resulting in injury. Also make sure that other Do not use the child car seat for children riding in the vehicle...

  • Page 17: Using The Reclining Function

    Using the reclining function When using in [Group 1] mode, the reclining angle can be adjusted in 4 levels according to the condition of the child. ① While pulling forward the reclining adjustment lever, ② Adjust the seat reclining angle. ①...

  • Page 18: Adjusting The Baby Shoulder Belt Position And Headrest Position

    Adjusting the baby shoulder belt position and headrest position Change the baby shoulder belt position according to the child’s growth. The baby shoulder belt position can be adjusted in 4 levels. Baby shoulder belt position reference Adjust so that the baby shoulder belt is at or slightly above the child’s shoulder.
  • Page 19 ① While pulling up the adjustment lever on the back of the main body (Group 1), adjust the height of the headrest. ② Release the adjustment lever on the back of the main body at the proper position. ③ Try to move the headrest up and down to make sure that it is secured.

  • Page 20: Seating The Child

    Seating the child ① While pulling up the belt adjustment lever, ② Pull both the left and right baby belts forward to loosen the baby belts. ※ Do not pull on the shoulder belt covers, as this will not loosen the baby belts. Shoulder belt cover Strongly pull the baby belt.
  • Page 21 ① Match the left and right insert Match left and right Insert tongues and insert them into the buckle until them lock with a “click” sound. If the left and right insert tongues are not inserted firmly into the buckle, the child may tumble out of the child car seat in the event of a collision or a loose belt may wrap around the...

  • Page 22: Unseating The Child

    Unseating the child ① While pulling up the belt adjustment lever, ② Pull both the left and right baby belts forward to loosen the baby belts. ※ Do not pull on the shoulder belt covers, as this will not loosen the baby belts.

  • Page 23: Preparation Of Installation

    Preparation of installation Continue ● Do not install the child car seat by a method other than described in this user manual and indicated on the main body. ● When using in Group 1 mode, the child car seat cannot be secured using the vehicle seatbelt.
  • Page 24 Preparation of installation Fit the ISOFIX insertion guides onto the ISOFIX anchors. ISOFIX insertion guide ISOFIX anchor Vehicle seat backrest Use the supplied ISOFIX insertion guides for easier child car seat installation when the ISOFIX anchors are hidden by the vehicle seat and di cult to see.

  • Page 25: Installing To The Vehicle

    Installing to the vehicle Continue ① Take out the top tether hook and tensioner from the top tether storage bag. ② Place the main body on the vehicle seat and extend the top tether hook and tensioner toward the back of the vehicle seat. ①...
  • Page 26 Installing to the vehicle ① Fit the ISOFIX connectors onto the left and right ISOFIX anchors and push until they lock with a “click” sound. ② Check that the color indicator B shows the locked condition (“green” is visible). ISOFIX anchor ①...
  • Page 27 Continue If the vehicle seat backrest can be reclined, adjust the reclining angle to make the gap with the back of the main body as small as possible. While pressing the tensioner release button, pull to loosen the tether belt. Tether belt Release button...
  • Page 28 Installing to the vehicle Secure the top tether hook to the top tether anchor. ※The illustration shows the case with the top tether anchor on the back of the vehicle seat. Top tether hook Top tether anchor The top tether anchor position differs according to the vehicle. Read the user manual of the vehicle for details of installing the top tether hook.

  • Page 29: Checklist After Installation

    ④ Check that the left and right of the main body are parallel with the vehicle seat. (Check that an ISOFIX connector is not pushed in excessively on only one side.) If you have any questions, please contact Combi’s Customer Service Center. WARNING ②...

  • Page 30: Uninstalling From The Vehicle

    Uninstalling from the vehicle ① While pressing the tensioner release button, pull to loosen the tether belt. ② Release the hook from the top tether anchor. Tether belt Release button Tensioner ① Press the left and right connector release buttons and release the ISOFIX connectors from the ISOFIX anchors.

  • Page 31: Converting To Group 2 And Group 3 Mode

    Converting to Group 2 and Group 3 mode Remove the baby belt and buckle that were used in [Group 1] mode. Operate the reclining adjustment lever and adjust the reclining angle so that the child car seat is as upright as possible. (Refer to “Using in Group 1 mode : Using the reclining function”.) Reclining adjustment...
  • Page 32 Converting to Group 2 and Group 3 mode ① Open the user manual storage pocket and arrange the belt adjustment metal as illustrated. ② Store the belt adjustment metal clasped by the user manual storage pocket. Belt adjustment metal ① ②...
  • Page 33 Continue ① While pulling up the adjustment lever on the back of the main body (Group 1), ② Remove the left and right shoulder belt cover attachment loops from the adjustment shaft. ③ Pull out the left and right shoulder belt cover attachment loops from the shoulder belt slots on the front of the main body.
  • Page 34 Converting to Group 2 and Group 3 mode ① Pull out the seat cover from around the belt adjustment lever cover. ② Pull out the seat cover from inside the left and right waist belt guides. ③ Pull out the crotch belt from the seat cover and remove the seat cover from the seat surface.
  • Page 35 ① Remove the baby belt attachment metal from the seat surface, ② Remove the baby belt from the slit in the center of the attachment metal. ③ Pull out the baby belt from the waist belt slots. ※ Perform this procedure for both the left and right baby belts. Attachment Baby belt metal...

  • Page 36: Adjusting The Headrest Position

    Adjusting the headrest position Adjustment lever on back of main Pull up the adjustment Headrest body (Group 1) lever on the back of the main body (Group 1) to the highest position. (Refer to “Using in Group 1 mode : Adjusting the baby shoulder belt position and headrest position”.)

  • Page 37: Preparation Of Installation

    Preparation of installation ● Do not install the child car seat by a method other than described in this user manual and indicated on the main body. ● Do not install the child car seat to a vehicle seat equipped with a front airbag.

  • Page 38: Installing To The Vehicle

    Installing to the vehicle Do not use the top tether in Group 2 and Group 3 mode. The child car seat will not function properly, which is dangerous to the child. When using in [Group 2・Group 3] mode, the child car seat can be installed by the two methods of <Installing with the ISOFIX connectors and the vehicle seatbelt>...
  • Page 39 Continue Pull up the adjustment lever on the back of the main body (Group 1) to the highest position. (Refer to “Using in Group 1 mode: Adjusting the baby shoulder belt position and headrest position”.) Headrest Adjustment lever on back of main body (Group 1) When using in Group 2 and Group 3 mode, adjust the adjustment lever on the back of the main body to the highest position.
  • Page 40 Installing to the vehicle ① While pulling the connector adjustment lever on the side of the main body, ② Pull out the ISOFIX connectors as far as possible. ③ Release the connector adjustment lever and check that the color indicator A is “green”. ※...
  • Page 41 Continue ① While pulling the left and right connector adjustment levers, ② Push the main body firmly using your knee, etc. or push the main body one side at a time until the back of the main body contacts the vehicle seat backrest, then release the main body. ③...
  • Page 42 The child car seat may become unstable if the seatbelt buckle or insert tongue contacts the main body and causes looseness in the vehicle seatbelt. Do not use the child car seat in an unstable condition. If you have any questions, please contact Combi’s Customer Service Center.
  • Page 43 Installing with only the vehicle seatbelt Install the child car seat by following the procedure described in “Installing with the ISOFIX connectors and the vehicle seatbelt” without steps 5 to 7. ※ For how to retract the ISOFIX connectors, refer to the procedure described in “Uninstalling from the vehicle”...

  • Page 44: Seating The Child

    Seating the child Remove the seatbelt insert tongue from the seatbelt buckle, seat the child deeply into the child car seat, and adjust the height of the headrest according to the child. (Refer to “Using in Group 2 and Group 3 mode : Adjusting the headrest position”.) Adjustment lever Headrest...
  • Page 45 Pull out the vehicle seatbelt and insert the seatbelt insert tongue into the seatbelt buckle until it locks with a “click” sound. ● Make sure that the vehicle Vehicle seatbelt is not twisted or loose. seatbelt ● Always adjust the vehicle seatbelt (waist belt) so that it holds the child’s pelvis.

  • Page 46: Checklist After Installation

    Checklist after installation Check the following once the child is seated in the child car seat and the vehicle seatbelt is fastened. ① Check that there is not a large gap between the vehicle seat and the main body. ② Check that the reclining angle is adjusted so that the child car seat is as upright as possible.

  • Page 47: Returning To Group 1 Mode

    Returning to Group 1 mode Continue * Prepare the parts removed in “Converting to Group 2 and Group 3 mode”. Remove the seat cover and seat urethane from the seat surface. (Refer to “Converting to Group 2 and Group 3 mode”.) ①...
  • Page 48 Returning to Group 1 mode ① Pass the crotch belt through the crotch belt slot in the seat surface as illustrated, making sure that the buckle is oriented correctly. ② Attach the attachment metal to the crotch belt. ③ Fit the attachment metal into the recesses of the seat surface. Attachment metal ③...
  • Page 49 Continue ① Pass the crotch belt through the seat urethane and attach the seat urethane to the seat surface. ② Pass the crotch belt and the baby belt through the seat cover and attach the seat cover to the seat surface. (Refer to “Converting to Group 2 and Group 3 mode”.) ①...
  • Page 50 Returning to Group 1 mode ① Pass the left and right baby belts through the shoulder belt covers. ② While pulling up the adjustment lever on the back of the main body (Group 1), ③ Pass the left and right baby belts through the shoulder belt slots, making sure they are not twisted.

  • Page 51: Attaching And Removing The Covers

    Attaching and removing the covers Attaching and removing the head cover ① Remove the baby belt and the shoulder belt covers from the shoulder belt slots. (Refer to “Converting to Group 2 and Head cover Group 3 mode”.) ② Pull up the headrest. (Refer to “Using in Group 2 and Group 3 mode : Adjusting the headrest position”.)

  • Page 52: Maintenance Method

    Maintenance method Washing the seat cover and other sewn parts Be sure to follow the washing instructions and cautions below. ● Follow the instructions noted on the washing label sewn onto the sheet cover. ● Wash by hand with cold or lukewarm water. ●...

  • Page 53: Storage And Disposal

    Storage and disposal Storage Main body When the child car seat will not be used for a long period of time, uninstall it and store in a well-ventilated place out of direct sunlight and away from children. User manual Be sure to read and understand this user manual before use. Always keep this user manual in the user manual storage pocket on the back of the main body.
  • Page 54 memo...
  • Page 55 memo...
  • Page 56 SAVETREK 178836030 20.04...
