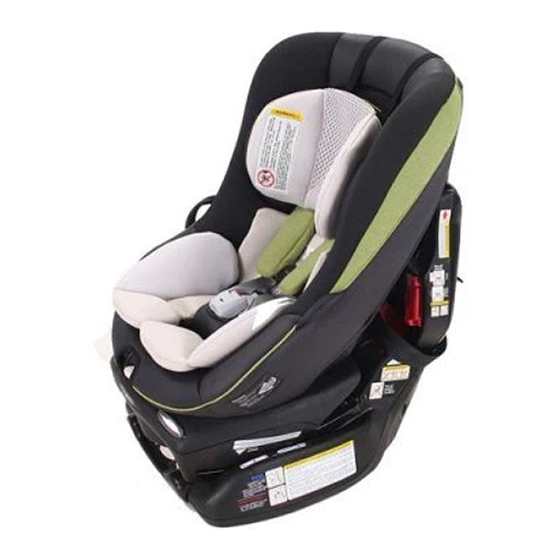

Zeus Turn Convertible Car Seat
Zeus Turn 8815 Series
All manuals and user guides at all-guides.com
Keep this instruction manual for future use.
• www.combi-intl.com
Instruction Manual
Zeus Turn Convertible Car Seat
5 to 40 lbs.
(2.3 to 18 kg)
WARNING
Correct installation and use can
be a matter of Life or Death!
Read and understand these
instructions before using this
car seat.
Z
T
C
t bl C
S t
I
t
t
M
l
WARNING
• Certified for use in motor vehicles
and aircraft.
• Meets or exceeds all applicable
requirements of Federal Motor
Vehicle Safety Standard 213.
Para instrucciones en Español,
llamar al: 1-800-992-6624
Zeus Turn 8815 Series
or log onto www.combi-intl.com.
Pocket
Instruction Manual
WARNING
Correct installation and use can
be a matter of Life or Death!
Read and understand these
instructions before using this
car seat.
• Certified for use in motor vehicles.
• Meets or exceeds all applicable
requirements of Federal Motor
Vehicle Safety Standard 213.
Para instrucciones en Español,
llamar al: 1-800-992-6624
or log onto www.combi-intl.com.
CCS0172 - 10/07
5 to 40 lbs.
(2.3 to 18 kg)
