Importantplanninginformationforbathtubsandwhirltubs
 P laceofinstallation
• Check the width of the doors to ensure that the bathtub will fit
through and into the bathroom.
• There must be no floor heating below the bathtub.
• The floor must be absolutely flat and horizontal.
• Install bathtubswithpanellingafter tiling.
• Install bathtubswithoutpanellingeither before or after tiling.
• Whirltubs:depending on the combination of bathtub and whirl-
system, system components might protrude beyond the rim of the
bathtub. This is why we recommend installation in a bathtub casing.
• Toleranceswithacrylic: as a result of the manufacturing process,
deviations from the specified nominal dimensions are possible within
the scope of the tolerances as per DIN 198. Please take this into
account during planning.
Inspectionopeningsandventilationgrates
Tilingthebath
• Provision must be made for the following inspection openings:
• Outlet and overflow fitting 200 x 200 mm
• Aggregates
• For the position, see chapter "Whirl systems product information".
• Whirl tub or bathtub with coloured light: for the air supply, allow an
opening with an area of approx. 15 cm2 (e.g. 3 x 5 cm or 2 x 7.5 cm)
in the panel.
BathtubwithDuravitpanelling
• It must be possible to remove the panelling for inspection purpo-
ses. For this reason, allow a certain amount of space in front of the
panelling.
• For the air supply, an opening is pre-installed in the panelling; this
must not be covered.
Waterconnection
The water may only be connected by a qualified plumber. Country-spe-
cific standards and local regulations must be observed in full.
Waterconnection
• Connect the inlet and outlet according to current standards and local
regulations.
• Ensure that the connecting sleeve is flush with the floor.
500 x 500 mm
Electricalinstallationforbathtubswithcolouredlight
andwhirltubs
The electricity may only be connected by a qualified electrician.
Country-specific standards, local regulations and low-voltage guide-
lines must be observed in full.
Electricalconnection

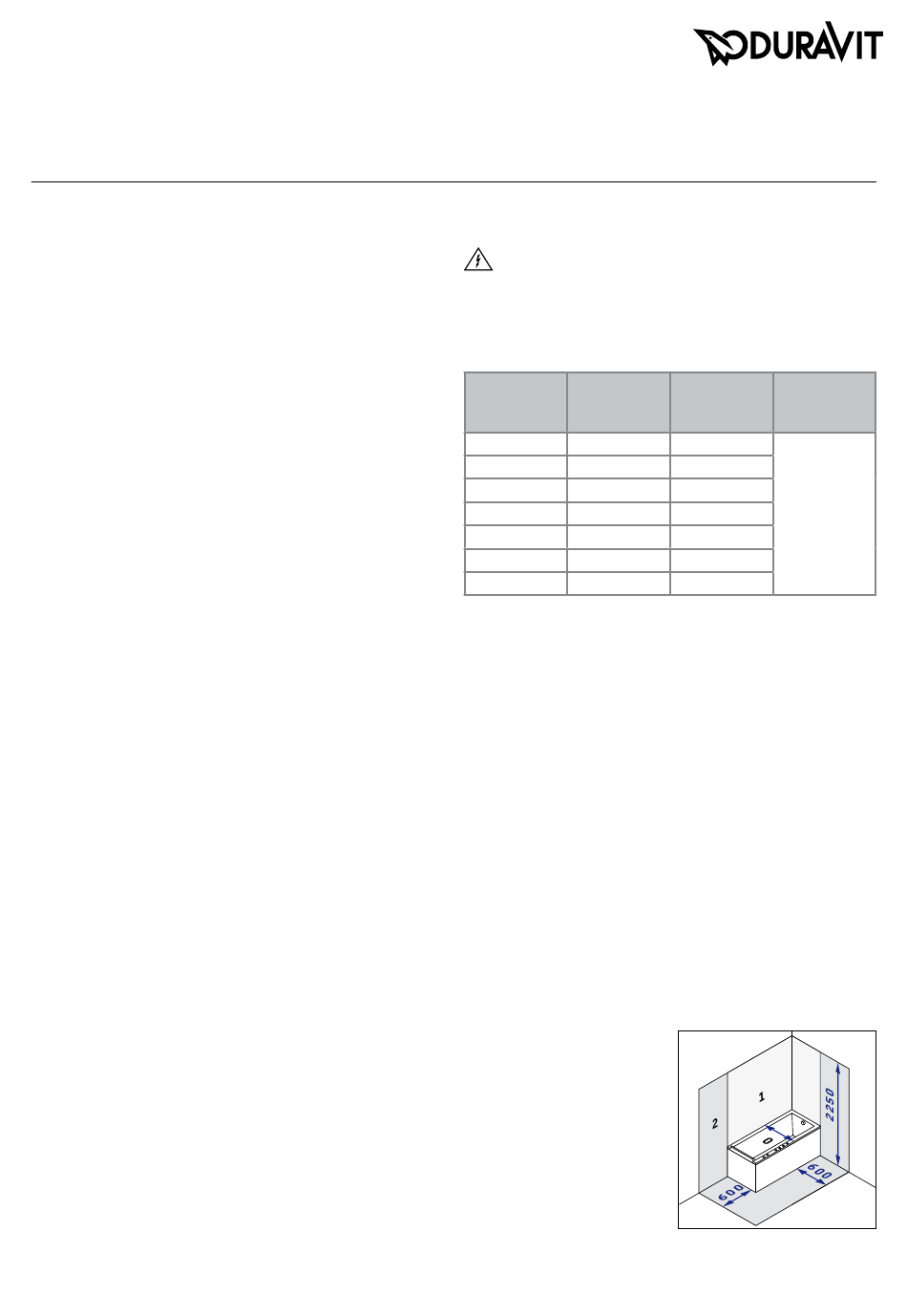

Electrical data
Whirlsystem Max. rated
power without
heating
Air 1,08 kW
Jet 0,74 kW
Combi P 2,19 kW
Combi E 2,74 kW
Combi L 2,38 kW
Jet E 1,69 kW
Jet L 1,36 kW
• Pote ntial equalisation installed, 3000 mm
• Install supply line in acc. with the following requirements (two supply
lines for combi system L with temperature module):
• Fuse protection I = 16 A,
N
RCD max. 30 mA
• Switched via all-pole disconnecting mains switch, outside zones 0,
1 and 2 (see Fig. I)
• Cable length 3000 mm
Max. rated Frequency
power with Voltage
heating
-
-
50 Hz:
-
230 V~AC
3,50 kW
60 Hz:
5,34 kW
220 V~AC
2,69 kW
4,36 kW
I
Pre-installation_Product Information
1
