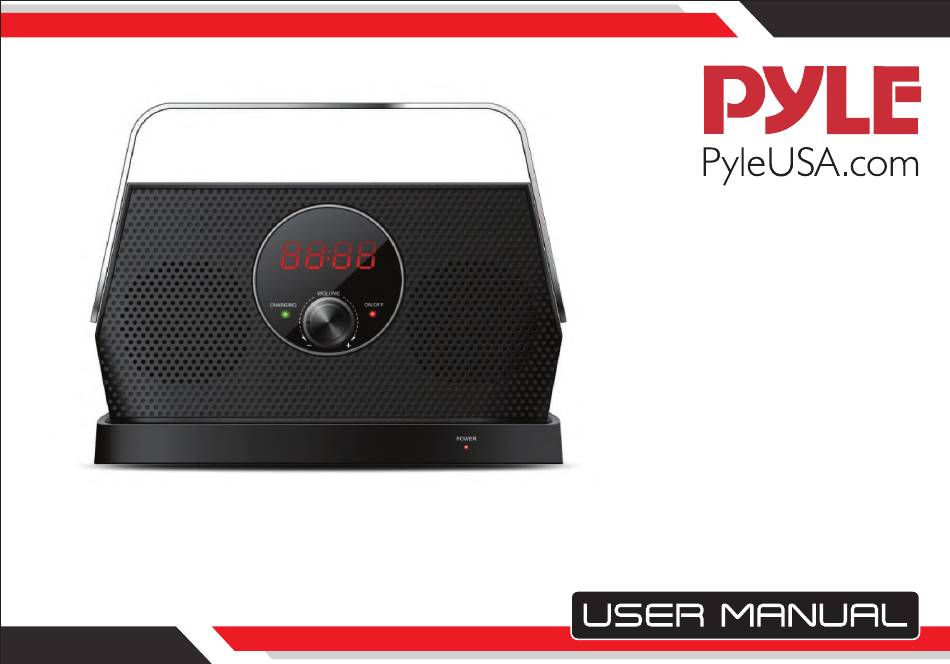

- Page 1 PTVSP50BK Bed-Side Hearing TV Speaker 2.4GHz Wireless Audio Comfort TV Speaker...
-
Page 2: Important Safety Instructions
Please read this operating guide carefully before use and keep it for future reference. If you have any questions, please feel free to contact our Customer Service department IMPORTANT SAFETY INSTRUCTIONS Please read these instructions carefully before using the Wireless TV Speaker. •... -
Page 3: Package Contents
Package Contents Features Identi cation Receiver Clock display Wireless audio transmission mode indicator light Low battery/ ON/OFF & charging volume control indicator 1 Wireless Receiver 2 AC Adapter (Speaker) Headset port Pairing button AC adapter jack Reset key Audio input port Tone control 1 Transmitter Base 1 Audio Cord... -
Page 4: Connection And Setup
Wireless audio transmission mode operation description CONNECTION AND SET UP For TV'S, with audio-output ports: Select an Audio Connection: If your TV has a headphone jack, it's an analog output. Locate the Audio Out connector on the back of your TV. Connect the base of the Wireless TV Speaker to the TV using the provided audio cable, as shown in the figure below. - Page 5 Wireless audio transmission mode operation description For TVs with Audio-Out Ports (RCA Type) For TV's with Digital Output port (optical): If your TV has audio output RCA type ports on the back If your TV has a digital optical audio output port , using of your TV, it is an analog output.
-
Page 6: Battery Charging
Wireless audio transmission mode operation description Placement of Transmitter Base Battery Charging Place the receiver on the base (as shown) for charging for For best results, place the Transmitter Base on top of 6+ hours before first use. During charging, the Low your TV stand, or on top of your TV, as shown below. -
Page 7: Operation
Wireless audio transmission mode operation description OPERATION 4. Set the Tone Control to a position that enables you to ON/OFF, Volume and Tone Control hear and understand the dialog best. 1. Rotate the switch knob to turn the receiver on or off Pairing Additional Receivers and adjust its volume, and rotate the mode switch to You can add up to 50 receivers to work with your base. - Page 8 Wireless audio transmission mode operation description Pairing Additional Receivers (continued) 1. Turn the new receiver ON. 2. Press and hold (about 5 seconds) the PAIRING button on the bottom of the receiver until the ON/OFF indicator starts blinking. Pairing period is approximately 20 seconds.
- Page 9 Wireless audio transmission mode operation description HOUR RUN: Regular working when the Key is on the "RUN" side Short press to add the number of hour slowly CLOCK: Push the Key to "CLOCK" side to make clock setting Press and hold to add the number of hour rapidly MINUTE OFF: Don't display the time Short press to add the number of minute slowly...
-
Page 10: Troubleshooting
TROUBLESHOOTING FCC INFORMATION FOR U.S. CUSTOMERS ONLY PART 15 OF FCC RULES INFORMATION • No sound from the receiver This device complies with Part 15 of the FCC rules. Check all connections to ensure that all the cords are Operation is subject to the following two conditions: firmly connected at the back of the base and TV. -
Page 11: What's In The Box
FEATURES: 3. Connect the cordless phone AC adapter into a different electrical outlet. • Perfect for Bed-Side TV Listening • Enjoy Wireless Audio from a Distance 4. Consult the dealer or an experienced radio/TV technician • Connects to Your TV for Comfortable Sound Levels for help. - Page 12 Questions? Issues? We are here to help! Phone: (1) 718-535-1800 Email: support@pyleusa.com...
Need help?
Do you have a question about the PTVSP50BK and is the answer not in the manual?
Questions and answers
What do I need to get sound on Bulo from my smart TV
You can connect the Pyle PTVSP50BK speaker to your smart TV using one of the available audio input options:
1. Optical Input – Use a digital optical audio cable to connect your TV’s optical output to the speaker’s optical input.
2. Audio In (3.5mm or RCA) – Use a 3.5mm audio cable or RCA cable to connect the TV's audio output to the speaker’s AUX input.
3. Wireless Connection – The speaker comes with a charging transmitter base. Ensure the base is connected to the TV using one of the above wired methods and pair the speaker with the transmitter.
Once connected, adjust the volume using the speaker’s controls.
