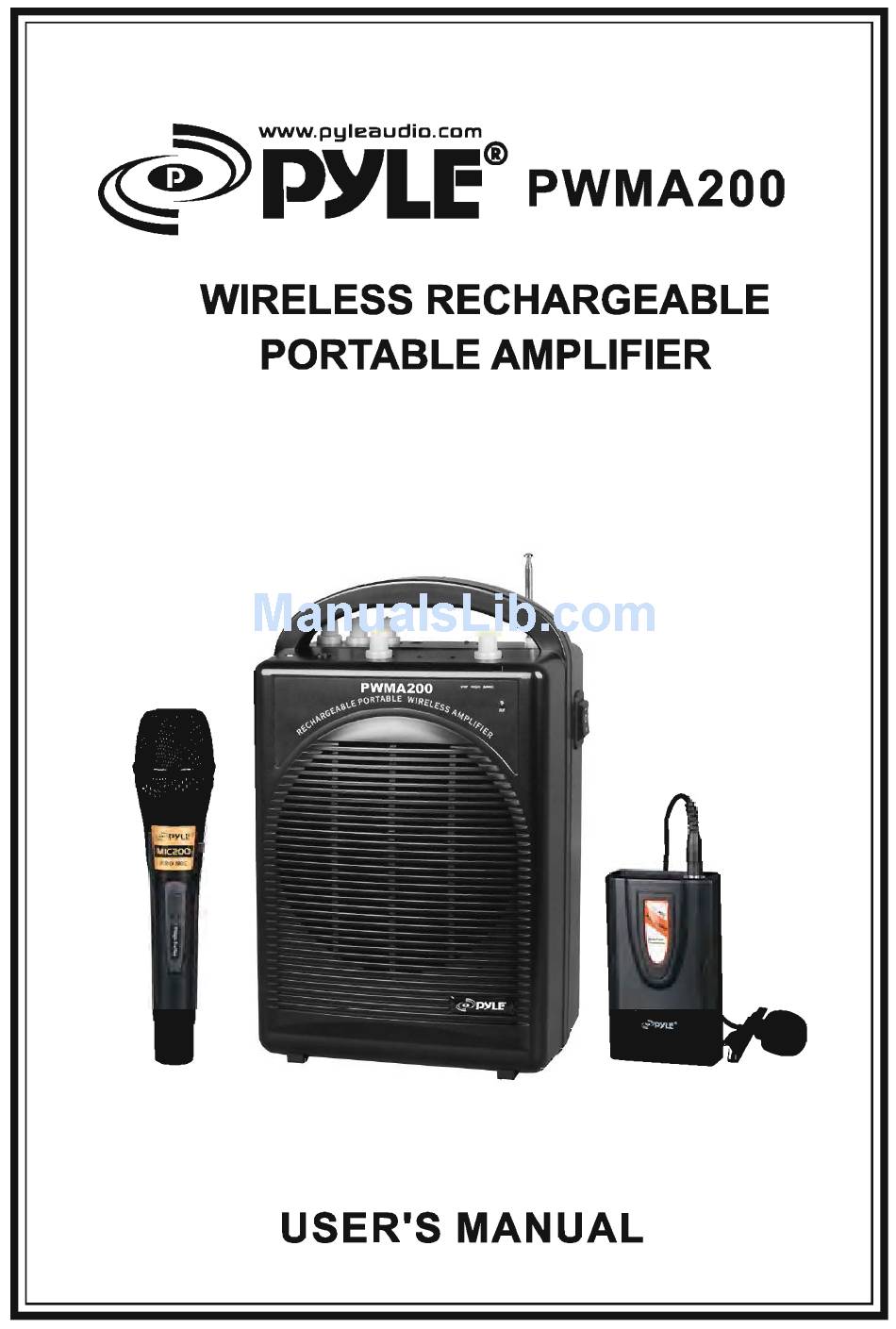

- Page 1 WIRELESS RECHARGEABLE PORTABLE AMPLIFIER USER'S MANUAL...
- Page 2 system. We thank you for your purchasing this amplifier Before start to use this amplifier system please read the manual book thoroughly and carefully. Please keep this instruction book in a safe place after reading for future reference. WARNING • To prevent fire or shock hazard, do not expose the unit to rain or moisture.
- Page 3 This unique designed amplifier speaker system with microphone is perfect for the followimg applications. • Used as lecturing amplifier indoor or outdoor.(Especialiy for dancing and gym teachers}. • A perfect address delivery system for in and out door meeting, tourism and churches.
- Page 4 PWMA200 (single channel main frame) standard match 1. One set of main frame. 2. Apiece of Lavalierwireless MIG with transmitter 3. One headset MIG. 4.Wired microphone Note: custome~s I.Lavalier or handheld wireless microphones for optional. 2.The same channel microphones can't work at the same time in single channel receiver.
- Page 5 The system FM TURNING speaker PWMA200 Single channel main frame(With Battery Wired Mic Input status LED Built-in Rechargeable battery) Audio Output Wired microphone volume control power [ ]][!] Radio Tuning FM (optional) Belt Pack Transmitter Headset Microphone PWMA200 Single channel MAIN...
- Page 6 You have to plug the system off the main power after each use. System works DC p-ower.. 1.Turn on the main switch to ON and the power LED will indicate the battery works well. 2.You may use the car cigarette light power connector to connect the car and the main receiving machine or use an external 12V DC power connector to connect the main receiving machine and the external...
- Page 7 5. Be careful to adjust the main control of the transmitter, start from least volume and slowly turn it to a appropriate level to hear your voice clearly and with feed back. The system is ready to use. 6. After use, you have to take the battery out of the transmitter to avoid battery leaking to damage the transmitter.
- Page 8 VOlum' , .wntroliJ How to use a wired ~~~'" Just plug the microphone to the wired mic input jack, you hear your voice immediately. --=J How to adjust ttie You may turn the Tone knob to its best position for your satisfactory. Audio output will go to the recording system and you can record while using the amplifier system.
- Page 9 1. Tum the main power on, then adjust the speaker volume to a proper level. 2. TUrn the FM radio to your station. It covers 88-108 MHz. 3. Adjust the volume to a proper sound level. How to charge the built in? batte~ 1.
- Page 10 Noise or abrupt stop 1. Check the accumulator to see if it is low in voltage. 2. Built-in battery low, please useAC power instead to power the system. 3. Check the cable connection to the speaker. The cable might be broken after a long time use.
- Page 11 Options of accessories 12V/1.2AH Lavalier Microphone Built-in battery Headset Microphone Belt Pack Transmitter 9V battery Wired Microphone...
- Page 12 AMPLIFIER Output power: BOW(MAX) Frequency Range: 1 BO-270MHz SIN: BOdB Power supply: AC110V BOHz DC 12V-15V Output Impedance: BOO 0 Effective Distance: UPTO 100FT TRANSMITTER Frequency Range: 1 BO-270MHz Dynamic Range: BOdB Frequency Response: 100-10KHz -10"C -45"C Working Temperature: Power supply: 9V battery Battery life: B-10 hours...
- Page 13 " 100%recycled paper 1 00% papler recycle PLEASE APPROPR~TE TAKE CARE OF www.pyleaudio.com...
