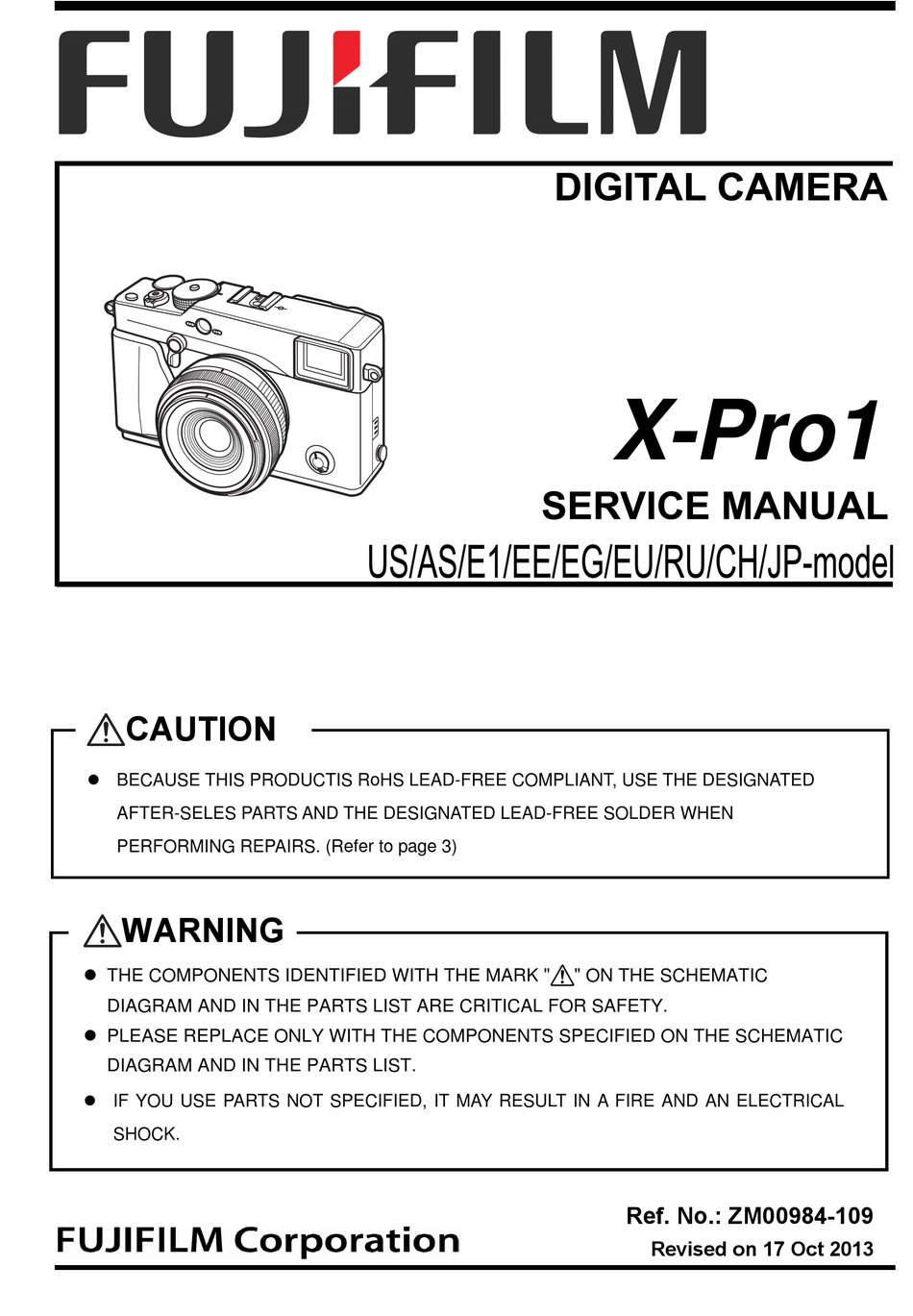

CAUTION
 BECAUSE THIS PRODUCTIS RoHS LEAD-FREE COMPLIANT, USE THE DESIGNATED
AFTER-SELES PARTS AND THE DESIGNATED LEAD-FREE SOLDER WHEN
PERFORMING REPAIRS. (Refer to page 3)
WARNING
 THE COMPONENTS IDENTIFIED WITH THE MARK "
DIAGRAM AND IN THE PARTS LIST ARE CRITICAL FOR SAFETY.
 PLEASE REPLACE ONLY WITH THE COMPONENTS SPECIFIED ON THE SCHEMATIC
DIAGRAM AND IN THE PARTS LIST.
 IF YOU USE PARTS NOT SPECIFIED, IT MAY RESULT IN A FIRE AND AN ELECTRICAL
SHOCK.
Confidential: FUJIFILM Service Center Use Only
X-Pro1
" ON THE SCHEMATIC
Ref. No.: ZM00984-109
1
X-Pro1 Service Manual
Revised on 17 Oct 2013

Advertisement

loading
Need help?

Need help?

Do you have a question about the X-Pro1 and is the answer not in the manual?

Questions and answers

Related Manuals for FujiFilm X-Pro1

Summary of Contents for FujiFilm X-Pro1

  • Page 1 Confidential: FUJIFILM Service Center Use Only X-Pro1 Service Manual X-Pro1 CAUTION  BECAUSE THIS PRODUCTIS RoHS LEAD-FREE COMPLIANT, USE THE DESIGNATED AFTER-SELES PARTS AND THE DESIGNATED LEAD-FREE SOLDER WHEN PERFORMING REPAIRS. (Refer to page 3) WARNING  THE COMPONENTS IDENTIFIED WITH THE MARK "...
  • Page 2 Confidential: FUJIFILM Service Center Use Only X-Pro1 Service Manual SAFETY CHECK-OUT After correcting the original problem, perform the following safety check before return the product to the customer. 1. Check the area of your repair for unsoldered CAUTION: FOR or poorly soldered connections. Check the...
  • Page 3 Confidential: FUJIFILM Service Center Use Only X-Pro1 Service Manual RoHS lead-free compliance With the exception of parts and materials expressly excluded from the RoHS directive, all the internal connections and component parts and materials used in this product are lead-free compliant under the European RoHS directive (*1). Use the designated after-sales parts and the designated lead-free solder when performing repairs.
  • Page 4 Confidential: FUJIFILM Service Center Use Only X-Pro1 Service Manual MEMO...

  • Page 5: Table Of Contents

    Confidential: FUJIFILM Service Center Use Only X-Pro1 Service Manual CONTENTS 1. Disassembly ......................1-1 2. Schematics ......................2-1 3. Adjustments ......................3-1 4. Inspection ........................4-1 5. Parts List 1 ..............5-1 (Packing and Accessories) 6. Parts List 2 .................6-1 (Mechanical Block) 7. Electrical parts ......................7-1 8.
  • Page 6 Confidential: FUJIFILM Service Center Use Only X-Pro1 Service Manual MEMO 6 ...

  • Page 7: Disassembly

    Confidential: FUJIFILM Service Center Use Only   X-Pro1 Service Manual 1. Disassembly Removing the CASE 1-1. (1) Remove the DECO PLATE LEVER. (2) Remove the 1 screw.（MS2M 1.4X2.0） (3) Remove the LEVER FINDER.              ...
  • Page 8 Confidential: FUJIFILM Service Center Use Only   X-Pro1 Service Manual   (8) Peel off the SHEET GRIP R LEFT. (9) Peel off the SHEET GRIP R RIGHT. (10) Peel off the SHEET GRIP F RIGHT. (11) Peel off the SHEET GRIP F LEFT.
  • Page 9 Confidential: FUJIFILM Service Center Use Only   X-Pro1 Service Manual CONST REAR 1-2. Removing the (1) Remove the 1 screw.（N-MSGM 1.7X2.5） (2) Remove the 4 screws.（N-MSGM 1.7×2.5D）                          ...
  • Page 10 Confidential: FUJIFILM Service Center Use Only   X-Pro1 Service Manual   (5）Open the CONST REAR in the direction of the arrow. (6）Remove the REAR FFC from the  MAIN PWB ASSY.                    ...
  • Page 11 Confidential: FUJIFILM Service Center Use Only   X-Pro1 Service Manual 1-3.    Removing the CONST FRAME MAIN (1) Remove the 1 screw.（MSGM 1.7×2.5）                               (2) Remove the CONST PWB SIDE.
  • Page 12 Confidential: FUJIFILM Service Center Use Only   X-Pro1 Service Manual   (4) Remove the 4 screws.（N-MSGM 1.7×2.5D）                         (5) Remove the 1 screw.（N-MS2M 1.7×3.0）          ...
  • Page 13 Confidential: FUJIFILM Service Center Use Only   X-Pro1 Service Manual   (7) Remove the 5 screws.（MSGM 1.7×2.5）           (8) Remove the 4 screws.（BT2M 1.7×3.5）                        ...
  • Page 14 Confidential: FUJIFILM Service Center Use Only   X-Pro1 Service Manual CONST TOP 1-4. Removing the (1) Unlock the connector and remove the  CONST TOP FPC.     (2) Remove the EYE SENSOR FPC.     (3) Remove the 1 screws.（N-MSGM 1.7×2.5）...
  • Page 15 Confidential: FUJIFILM Service Center Use Only   X-Pro1 Service Manual   (4) Remove CONST TOP in the direction of the arrow.                              [Assembly] Assemble by performing the disassembly procedure in reverse.  ...
  • Page 16 Confidential: FUJIFILM Service Center Use Only   X-Pro1 Service Manual 1-5. CONST FPC COMMAND Removing the (1) Remove the CONST FPC、 COMMAND FPC                               (2) Remove the 2 screws.（BT2M 1.7×5.0）...
  • Page 17 Confidential: FUJIFILM Service Center Use Only   X-Pro1 Service Manual MAINPWB ASSY 1-6. Removing the (1) Remove the solder in 6 locations.                               (2) Remove the FPC AF.
  • Page 18 Confidential: FUJIFILM Service Center Use Only   X-Pro1 Service Manual   (9) Remove the 2 screws.（BT2M 1.7×3.5）                       (10)Lift off theY-10241MAINPWB ASSY in the direction of the arrow. (11) Remove the EVF FPC.
  • Page 19 Confidential: FUJIFILM Service Center Use Only   X-Pro1 Service Manual UNIT MOUNT 1-7. Removing the (1) Peel off the ULTAPE. (2) Peel off the SHEET INSULATE SINK. (3) Peel off the SHEET COND SINK. (4) Peel off the SHEET CU SINK.
  • Page 20 Confidential: FUJIFILM Service Center Use Only   X-Pro1 Service Manual   (6) Remove the 1 screw.（MSGM 1.7×2.5）     (7) Remove the 2 screws.（MS2M 1.7×4.0）     (8) Peel off the SHEET COVER FPS.           1-14 ...
  • Page 21 Confidential: FUJIFILM Service Center Use Only   X-Pro1 Service Manual   (9) Remove the SPEKER.     (10) Remove the 1 screw.（MSGM 1.7×2.5）                             [Assembly] Assemble by performing the disassembly procedure in reverse.  ...
  • Page 22 Confidential: FUJIFILM Service Center Use Only   X-Pro1 Service Manual HOLDER SYNCHRO 1-8. Removing the (1) Peel off the BONDO. (2) Remove the solder in 1 location.     (3) Remove the NUT.   (4) Remove the PLATE SYNCHRO.    ...
  • Page 23 Confidential: FUJIFILM Service Center Use Only   X-Pro1 Service Manual   (5) Remove the SYNCHRO TERMINAL from the HOLDER SYNCHRO.                             [Assembly] Assemble by performing the disassembly procedure in reverse.  ...
  • Page 24 Confidential: FUJIFILM Service Center Use Only X-Pro1 Service Manual  1-9. Disassembling the UNIT MOUNT (1) Remove the screw (MS2M1.7X4.0). (2) Remove the 4 screws (MS2M1.7X5.0B). (3) Remove the FINDER UNIT in the direction of the arrow. [Notes] Be careful not to lose the NUT.
  • Page 25 Confidential: FUJIFILM Service Center Use Only X-Pro1 Service Manual (4) Remove the 2 screws (MS2M1.7X4.0). (5) Remove the FINDER BASE in the direction of the arrow. (6) Remove 4 solders. (7) Peel off the SHEET CU. [Notes on Assembly] SHEET CU is not reusable.
  • Page 26 Confidential: FUJIFILM Service Center Use Only X-Pro1 Service Manual (8) Remove the 3 screws (MS2M1.7X4.0). [Tightening torque when assembly] 10N•cm Tight the screws in the order show in the right picture. (9) Remove the CMOS UNIT. 1-20...
  • Page 27 Confidential: FUJIFILM Service Center Use Only X-Pro1 Service Manual [Notes] • Be careful not to lose the SHIM. • The thickness and the number of SHIMs vary depending on their positions. Be sure to write down the positions beforehand so that the same SHIMs will always be set to the same positions during assembly as the original positions.
  • Page 28 Confidential: FUJIFILM Service Center Use Only X-Pro1 Service Manual (12) Raise the DR GLASS UNIT in the direction of the arrow. (13) Peel off the TAPE FPC, and remove the DR GLASS UNIT. [Notes on Assembly] • TAPE FPC is not reusable.
  • Page 29 Confidential: FUJIFILM Service Center Use Only X-Pro1 Service Manual (14) Remove the 3 screws (MS2M1.7X4.0). (15) Remove the FP SHUTTER. [Tightening torque when assembly] 10N•cm (15) Remove 10 solders. (16) Remove the screw (MS2M1.7X2.0). [Tightening torque when assembly] 10N•cm 1-23...
  • Page 30 Confidential: FUJIFILM Service Center Use Only X-Pro1 Service Manual (17) Remove the MOUNT FPC. (18) Remove the 6 screws (MS7M1.7X6.0). (19) Remove the MOUNT RING. [Tightening torque when assembly] 18N•cm Tight the screws in the order show in the right picture.
  • Page 31 Confidential: FUJIFILM Service Center Use Only X-Pro1 Service Manual (20) Remove the PSP MOUNT. [Notes on Assembly] Be sure to apply the lubricant to the PSP MOUNT. Lubricant: ZS00185-100 (HI-LUBE FG-600T) Good Example Bad Example (21) Remove the MOUNT LOCK.
  • Page 32 Confidential: FUJIFILM Service Center Use Only X-Pro1 Service Manual [Notes on Assembly] Be sure to apply the lubricant to the MOUNT LOCK. Lubricant: ZS00135-200 (LUBRICANT CFD-409Z) (22) Remove the CSP MOUNT-LOCK. (23) Remove the screw (MS2M1.7X3.0N). [Tightening torque when assembly] 10N•cm...
  • Page 33 Confidential: FUJIFILM Service Center Use Only X-Pro1 Service Manual (24) Remove the HOLDER MOUNT ASSY in the direction of the arrow. [Precautions when replacing HOLDER MOUNT ASSY] MASK_MOUNT is not reusable. [Assembly] Assemble procedure is reverse of the disassembly procedure.
  • Page 34 Confidential: FUJIFILM Service Center Use Only X-Pro1 Service Manual 1-10. Removing the CONST ASSY FRONT and CONST BATT, COVER BATTERY (1) Remove the 3 screws （MSAM 1.4×2.5N）. (2) Remove the SHAFT in the direction of the arrow and then remove the COVER BATTERY.
  • Page 35 Confidential: FUJIFILM Service Center Use Only X-Pro1 Service Manual 1-11. Attachment locations (1) Affix the SHEET CU SINK as shown in the figure. Right and left direction standard Top and bottom direction standard 1-29...
  • Page 36 Confidential: FUJIFILM Service Center Use Only X-Pro1 Service Manual (2) Affix the SHEET COND SINK as shown in the figure. Right and left direction standard Top and bottom direction standard 1-30...
  • Page 37 Confidential: FUJIFILM Service Center Use Only X-Pro1 Service Manual (3) Affix the SHEET INSULATING SINK as shown in the figure. Right and left direction standard Top and bottom direction standard (4) Affix the UL_TAPE as shown in the figure. Top and bottom...
  • Page 38 Confidential: FUJIFILM Service Center Use Only X-Pro1 Service Manual (6) Affix the SHEET CU SINK （2 pieces）as shown in the figure. SHEET CU SINK（2 pieces） (7) Affix the UL_TAPE (19X37mm) as shown in the figure. （UL TAPE：ZS00143-100） UL TAPE 1-32...
  • Page 39 Confidential: FUJIFILM Service Center Use Only X-Pro1 Service Manual  (8) Affix the MASK_MOUNT on the HOLDER MOUNT ASSY as shown in the figure. (9) Affix the TAPE FPCs on the MOUNT as shown in the figure.  : Revised...
  • Page 40 Confidential: FUJIFILM Service Center Use Only X-Pro1 Service Manual  (10) Affix the TAPE FPC on the BASE CMOS as shown in the figure. (11) Affix the SHEET CU on the CMOUS UNINT as shown in the figure.  : Revised...
  • Page 41 Confidential: FUJIFILM Service Center Use Only X-Pro1 Service Manual 1-12. Putting of leather sheet 【Attention】 ●Ethanol with much higher density more than 81.4 vol% is not recommended for cleaning. When the surface of synthetic leather must be cleaned up to remove some dirt and dust, please use "ethanol"...
  • Page 42 Confidential: FUJIFILM Service Center Use Only X-Pro1 Service Manual 1-13. Procedure1 (1) I stick a seat and clean a part with ethanol. <Clean an arrow part in particular chiefly.> (2) I stick SHEET GRIP F RIGHT（①）on takeoff, CASE F. Pasting standard: Top and bottom direction:CONST TOP insinuation.
  • Page 43 Confidential: FUJIFILM Service Center Use Only X-Pro1 Service Manual (4) I press the LENS side SHEET tip in push Tool (Grip press tool Type A: ZJ01923-100) Type A (5) I press it with a big part of push Tool in the arrow direction.
  • Page 44 Confidential: FUJIFILM Service Center Use Only X-Pro1 Service Manual (6) I commute in the arrow direction with a curve part of push Tool and press it. *1: I press it by coming and going until I press it until I expose it to (2) red lines region in the state that let you comply with curve part (1) of LENS side GRIP and am accompanied and expose it to (3) red lines side and am accompanied.
  • Page 45 Confidential: FUJIFILM Service Center Use Only X-Pro1 Service Manual (2) I press it in spite of all SHEET GRIP F LEFT laps in Tool. *1: A SHEET not having the mixture such as alien substances. *2: To the ups and downs side get, and there not being advance.
  • Page 46 Confidential: FUJIFILM Service Center Use Only X-Pro1 Service Manual (4) I press it with a big part of push Tool in the arrow direction. *1: I press it until I expose it to (2) red horizontal lines region in the state that I hinted to the red bar side of upper wall (1) and am accompanied.
  • Page 47 Confidential: FUJIFILM Service Center Use Only X-Pro1 Service Manual 1-15. Procedure3 (1) I take out SHEET GRIP R RIGHT ( ① ) and stick it on CASE R. Pasting standard: Top and bottom direction : CONST TOP insinuation. Right and left direction: I make an insinuation at a lateral ups and downs shape.
  • Page 48 Confidential: FUJIFILM Service Center Use Only X-Pro1 Service Manual (3) I press it with a big part of push Tool in the arrow direction. *1: I press it until I put it and am assigned to the red bar side of the right wall (1).
  • Page 49 Confidential: FUJIFILM Service Center Use Only X-Pro1 Service Manual 1-16. Procedure4 (1) I stick SHEET GRIP R LEFT (①) on takeoff, CASE R. Pasting standard: Top and bottom direction:CONST TOP insinuation. Right and left direction: I make an insinuation at a lateral ups and downs shape.
  • Page 50 Confidential: FUJIFILM Service Center Use Only X-Pro1 Service Manual (3) I press the lower finder tip of SHEET GRIP R LEFT and the tip of each SW penumbra of DRIVE/AF/AE in push Tool. *1: SHEET not having the mixture such as alien substances.
  • Page 51 Confidential: FUJIFILM Service Center Use Only X-Pro1 Service Manual (5) I commute in the arrow direction with a curve part of push Tool and press it. *1: I press it until I expose it to (2) red line region in the state that let the R LEFT side grip curve part (1) go and am accompanied and press it by coming and going until I expose it to (3) red line side and am accompanied.
  • Page 52 Confidential: FUJIFILM Service Center Use Only X-Pro1 Service Manual (7)Press of press tool in the arrow direction. *1: Divide it into 13 times and push it *2: Divide it into four times and push it (Grip press tool Type D: ZJ01926-100) Type D Revised:21.Feb.2012...
  • Page 53 Confidential: FUJIFILM Service Center Use Only X-Pro1 Service Manual 1-17. Procedure5 (1) I take out BASE GRIP F (①), and possess CASE F of the camera body and close a screw (②) to CASE F. *1: I tighten a screw while approaching to the thickness direction of the camera body and lose it.
  • Page 54 Confidential: FUJIFILM Service Center Use Only X-Pro1 Service Manual (3) I stick GRIP F (④) on takeoff BASE GRIP F/TAPE GRIP F. Pasting standard: Direction of right and left: Chart below standard A part insinuation Top and bottom direction: Chart below standard B part insinuation *1: GRIP F to BASE GRIP F runs;...
  • Page 55 Confidential: FUJIFILM Service Center Use Only X-Pro1 Service Manual 1-18. Disassembling the FINDER ＊ Do the dissolution of finder department, in the case that the garbage, dirt removal inside the finder are necessary. ＊ Clean environment where garbage is not in if possible.
  • Page 56 Confidential: FUJIFILM Service Center Use Only X-Pro1 Service Manual MEMO 1-50...

  • Page 57: Schematics

    Confidential: FUJIFILM Service Center Use Only X-Pro1 Service Manual 2. Schematics 2-1. Block Diagram 1.8V 3.3V I2C_SCL1 JTAG Current I2C_SDA1 3.3V L3.3V -1.5V 1.8V 4.5V 1.0V FLASH 1.1V COPRO_PW_EN SENSER Vout MEDIA 1Gbit (NAND) SD or SDXC LENS MOUNT CMOS...
  • Page 58 Confidential: FUJIFILM Service Center Use Only X-Pro1 Service Manual 2-2. Overall connection Diagram...
  • Page 59 Confidential: FUJIFILM Service Center Use Only X-Pro1 Service Manual 2-3. Mounted Parts Diagrams 2-3-1. MAIN PWB ASSY...
  • Page 60 Confidential: FUJIFILM Service Center Use Only X-Pro1 Service Manual 2-3-2.  SHOEFPC ...

  • Page 61: Adjustments

    Confidential: FUJIFILM Service Center Use Only X-Pro1 Service Manual 3. Adjustments 3-1. Important point before adjustment (the internal memory deployment model) 3-1-1. The handling of image files in internal memory Image files contained in the internal memory should be handled as described below.
  • Page 62 Confidential: FUJIFILM Service Center Use Only X-Pro1 Service Manual 3-1-2. Adjustment when replacing major parts <Note> Depending on the temperature inside the camera (approx. 15°C or below or 50°C or above) a "Temperature NG" error may occur during X-Pro1 adjustment.
  • Page 63 Confidential: FUJIFILM Service Center Use Only X-Pro1 Service Manual 3-2-1. Installing .NetFramewark Version 2.0 <Step 1> Download .NET Framework Version 2.0 from Microsoft. (See the address below and light picture.) http://www.microsoft.com/downloads/details.aspx?familyid=0 856EACB-4362-4B0D-8EDD-AAB15C5E04F5&displaylang=e <Step 2> After downloading the software, complete the installation as directed by the Install wizard.
  • Page 64 ･Precision : ±1mm/10m ･Line Point laser : X direction/Y direction *1: Please downloaded from Web server (https://denhin.fujifilm.co.jp/csg_en/index.htm or http://fujifilm-di.intranets.com/). *2: Select one the power cable suitable each country. *3: Marketing product. Please purchase it in a general merchandising store. Revised:13.April.2012...
  • Page 65 Confidential: FUJIFILM Service Center Use Only X-Pro1 Service Manual 3-4. Calibration method of pattern box <Use the pattern box for Camera adjustment> Turn on the power supply in the pattern box. Afterwards, wait for about ten minutes so that the source of light may stabilize.
  • Page 66 Confidential: FUJIFILM Service Center Use Only X-Pro1 Service Manual 3-5-2. Various downloading software decompressions, preservation methods, and notes The PC adjustment softwares are in a specified Web server, and both of these are the compression of ZIP form files. Therefore, after downloading these compression files from the Web server, the decompression of the file is X-Pro1 W PC Soft Ver.*.**...
  • Page 67 Confidential: FUJIFILM Service Center Use Only X-Pro1 Service Manual <Step 6> When installation ends and the window shown on the right appears, click [Finish]. 3-5-3. Uninstalling X-Pro1 W PC Soft Ver.*.** <Step 1> Click : Start ↓ Programs ↓ FUJIFILM REPAIR SERVICE ↓...
  • Page 68 Confidential: FUJIFILM Service Center Use Only X-Pro1 Service Manual 3-5-4. X-Pro1 SD BOOT card making The SD BOOT softwares are in a specified Web server, and both of these are the compression of ZIP form files. Therefore, after downloading these compression files from the Web server, the decompression of the file is necessary.
  • Page 69 “ZJ01970-***” is a compression of “ZIP type” file. The “X-Pro1 SD BOOT Soft” folder can be done by extracting it by “Compression software”. Copy the “X-Pro1 SD BOOT Soft” folder to the “C” drive on the Adjustment PC. <Step4> Copy the “ffboot.bin” file and “ffsys.bin” file, which are stored in the extracted “X-Pro1 SD BOOT Soft”...
  • Page 70 Confidential: FUJIFILM Service Center Use Only X-Pro1 Service Manual 3-6. QR Code reader（ZJ01134-100） Setup Initialize the QR code reader used to carry out the LENS DATA read. Connect the QR code reader to the USB port on the Wait until the PC recognizes the QR code reader (the QR code reader emits a beep).
  • Page 71 Confidential: FUJIFILM Service Center Use Only X-Pro1 Service Manual 3-8. Launching the Adjustment Software 3-8-1. Launching the Adjustment Software when MAIN PWB Initialize <Step 1> Start ↓ Programs ↓ FUJIFILM REPAIR SERVICE ↓ X-Pro1_W Adjustment Software ↓ X-Pro1_W（BOOT） The adjustments are the same whichever option is selected.
  • Page 72 Confidential: FUJIFILM Service Center Use Only X-Pro1 Service Manual <Step 4> [Adjustment Software Start-up Screen] Check the details and then press the [Enter] key to proceed. X-Pro1_W Adjustment Software Start-up Screen Press the [Enter] key. ----＞The adjustment software starts. <Step 5>...
  • Page 73 Confidential: FUJIFILM Service Center Use Only X-Pro1 Service Manual 3-8-2. Launching the Adjustment Software other then [I]:MAIN PWB Initialize [Adjustment environment and precautions] • When "OK" and "NG" window is displayed and adjusts the same camera again, switch camera power off once, and please switch camera power on with a jig mode again.
  • Page 74 Confidential: FUJIFILM Service Center Use Only X-Pro1 Service Manual <Step 4> [Adjustment Software Start-up Screen] Check the details and then press the [Enter] key to proceed. X-Pro1_W Adjustment Software Start-up Screen Press the [Enter] key. ----＞The adjustment software starts. <Step 5>...
  • Page 75 Confidential: FUJIFILM Service Center Use Only X-Pro1 Service Manual <Step 7> [Displaying the firmware version] Firmware＝1.98 If a firmware upgrade is required, separate instructions will be provided. Check the details and then press the [Enter] key to proceed. Vendor Name = FUJIFILM...
  • Page 76 Confidential: FUJIFILM Service Center Use Only X-Pro1 Service Manual 3-9. [I]:MAIN PWB Initialize [Adjustment environment and precautions] • When the MAIN PWB ASSY has been replaced, always carry out the "MAIN PWB Initialize" procedure before performing any other adjustments. The adjustments cannot be made correctly without first carrying out the "MAIN PWB Initialize" procedure.
  • Page 77 Confidential: FUJIFILM Service Center Use Only X-Pro1 Service Manual <Step 2> (1) Connect Power cable (or jig). (2) Connect the camera to the PC using the “USB cable”. (3) Switch camera power ON while pressing the shutter button and up key.
  • Page 78 Confidential: FUJIFILM Service Center Use Only X-Pro1 Service Manual 3-10. [F9]:Mount Data Write [Adjustment environment and precautions] • Do not vibrate the camera during adjustment. [Required items] Camera fixing jig If there are no problems with the adjustment environment, a tripod or X-Y stage can be used.
  • Page 79 Confidential: FUJIFILM Service Center Use Only X-Pro1 Service Manual <Step 2> Download the ZIP file of top four digits from Web server (https://denhin.fujifilm.co.jp/csg_ccd/index.htm). Open [ZJ01979-100] in the LENS data folder, and download “LX10Mount_7000.zip”. <Step 3> Decompress “LX10Mount_7000.zip”. --> “7000051.txt” is made.
  • Page 80 Confidential: FUJIFILM Service Center Use Only X-Pro1 Service Manual 3-11. [L]:Level Adjustment(Normal temperature) [Adjustment environment and precautions] • Adjust the lighting to give a brightness of 9.0 to 11.0 EV on the Level chart surface.. • Because the likelihood of adjustment failure increases as the internal camera temperature rises, when adjustment fails you should first try turning the camera off for a while and then carrying out the adjustment again.
  • Page 81 Confidential: FUJIFILM Service Center Use Only X-Pro1 Service Manual <Step 1> In the adjustment item select screen, select [L]: Level Adjustment(Normal temperature). <Step 2> Level Adjustment(Normal temperature) [Preparing for Level Adjustment(Normal temperature)] (1) Prepare the Level chart. (2) Mount the camera on the Level jig so that it is facing the (1) Prepare a Level chart (1000mm x 700mm or more)..
  • Page 82 Confidential: FUJIFILM Service Center Use Only X-Pro1 Service Manual <Step 5> (1) Set the Level jig in 20 degree. Set up the posture of the camera in the angle of 20 degree. When you have completed the preparations, press the [Enter] key to proceed.
  • Page 83 Confidential: FUJIFILM Service Center Use Only X-Pro1 Service Manual <Step 8> (1) Set the Level jig in 270 degree. Set up the posture of the camera in the angle of 270 degree. When you have completed the preparations, press the [Enter] key to proceed.
  • Page 84 Confidential: FUJIFILM Service Center Use Only X-Pro1 Service Manual 3-12. [F4]:CMOS Defect Correction [Adjustment environment and precautions] • Darken the surroundings during adjustments (a darkroom environment is ideal). Alternatively, prepare a box that is painted black on the inside and perform the adjustments with the camera enclosed in the box. Please be careful so that a fluorescent light does not enter.
  • Page 85 Confidential: FUJIFILM Service Center Use Only X-Pro1 Service Manual <Step 3> [Inspection for S/N main] Inspection for S/N main (1) Set the distance between the camera and pattern box. (2) Place the LB140 filter in front of the lens. Maximum Maximum When preparations are complete, press the [Enter] key.
  • Page 86 Confidential: FUJIFILM Service Center Use Only X-Pro1 Service Manual 3-13. [F5]:Camera Adjustment [Adjustment environment and precautions] • Darken the surroundings during adjustments (a darkroom environment is ideal). Alternatively, prepare a box that is painted black on the inside and perform the adjustments with the camera enclosed in the box. Please be careful so that a fluorescent light does not enter.
  • Page 87 Confidential: FUJIFILM Service Center Use Only X-Pro1 Service Manual <Step 3> Shutter adjustment main [Shutter adjustment] (1) Set the camera to designated distance. (1) Set the distance between the camera and pattern box. (2) Remove the LB145 filter and the R60 filter from front of the lens.
  • Page 88 Confidential: FUJIFILM Service Center Use Only X-Pro1 Service Manual 3-14. [H]:Level Adjustment (High temperature) [Adjustment environment and precautions] • Adjust the lighting to give a brightness of 9.0 to 11.0 EV on the Level chart surface. • Check that Level Adjustment(Normal temperature), AF Adjustment, CMOS Defect Correction and Camera Adjustment have finished.
  • Page 89 Confidential: FUJIFILM Service Center Use Only X-Pro1 Service Manual <Step 1> In the adjustment item select screen, select [H]: Level Adjustment(High temperature). <Step 2> Level Adjustment(High temperature) [Preparing for Level Adjustment(High temperature)] (1) Prepare the Level chart. (2) Mount the camera on the Level jig so that it is facing the (1) Prepare a Level chart (1000mm x 700mm or more)..
  • Page 90 Confidential: FUJIFILM Service Center Use Only X-Pro1 Service Manual <Step 5> (1) Set the Level jig in 20 degree. Set up the posture of the camera in the angle of 20 degree. When you have completed the preparations, press the [Enter] key to proceed.
  • Page 91 Confidential: FUJIFILM Service Center Use Only X-Pro1 Service Manual 3-15. [E]:EVF Adjustment [Adjustment environment and precautions] • Use an AC cable to supply power to the sensor on the LCD adjustment jig. [Required items] Camera fixing jig If there are no problems with the adjustment environment, a tripod or X-Y stage can be used.
  • Page 92 Confidential: FUJIFILM Service Center Use Only X-Pro1 Service Manual <Step 1> In the adjustment item select screen, select [F3]:EVF Adjustment. <Step 2> EVF Adjustment [Preparing for EVF Adjustment] (1) Turn the camera off. (1) Turn off power switch. (2) Unplug the power cord from the camera.
  • Page 93 Confidential: FUJIFILM Service Center Use Only X-Pro1 Service Manual 3-16. [F1]:Battery Voltage Adjustment [Adjustment environment and precautions] • If you have not been using the battery jig up until the immediately preceding adjustment, briefly pause the adjustment software (press "X" in the adjustment item select screen) and then turn the camera off.
  • Page 94 Confidential: FUJIFILM Service Center Use Only X-Pro1 Service Manual <Step 1> In the adjustment item select screen, select [F1]: Battery Voltage Adjustment. <Step 2> Battery Voltage Adjustment [Preparing for Battery Voltage Adjustment] Launch the adjustment software and connect the PC to the <Preparations>...
  • Page 95 Confidential: FUJIFILM Service Center Use Only X-Pro1 Service Manual <Step 5> Battery Voltage Adjustment [Restoring the Battery Voltage Adjustment default voltage] Adjust the voltage from the regulated power supply so that [7.20V(±0.1V)] is displayed on the digital voltmeter. Apply an input voltage of 3.70V(+-0.1V) in the battery jig.
  • Page 96 Confidential: FUJIFILM Service Center Use Only X-Pro1 Service Manual 3-17. [F8]: Firmware Download [Adjustment environment and precautions] • Carry out a firmware download when instructed to do so. Depending on the firmware that is upgraded, it may be necessary to make adjustments to the camera or to reset the EEPROM.
  • Page 97 Confidential: FUJIFILM Service Center Use Only X-Pro1 Service Manual <Step 1> Firmware Download In the adjustment item select screen, select [F8]: Firmware Firmware Download Download. LED lights to orange while downloading the firmware. Do not turn off the power while downloading the firmware.
  • Page 98 Confidential: FUJIFILM Service Center Use Only X-Pro1 Service Manual 3-18. [F12]:End Setting [Details] • Default camera destinations The serial number is used as a guide to setting the default destination for a camera. • USB_ID Write Every USB device (the camera in this case) must be globally unique as a USB device. To ensure this, the USB standard requires that a device-specific ID be assigned to each device.
  • Page 99 Confidential: FUJIFILM Service Center Use Only X-Pro1 Service Manual <Step 1> End Setting In the adjustment item select screen, select [F12]: End Setting. The End settings consist of the destination setting, <Step 2> the USB_ID write, and product mode settings (= Mass Storage recognition).
  • Page 100 Confidential: FUJIFILM Service Center Use Only X-Pro1 Service Manual MEMO 3-40...

  • Page 101: Inspection

    Confidential: FUJIFILM Service Center Use Only X-Pro1 Service Manual 4. Inspection 4-1. Required Measuring Equipment Parts number Measuring equipment Remarks Power supply Regulated power supply Digital voltmeter For general use Ammeter For general use (able to measure 1mA or less)
  • Page 102 Confidential: FUJIFILM Service Center Use Only X-Pro1 Service Manual 4-3. Inspection and Factory Settings Measuring Preparations for adjustment Method of adjustment Item Mode equipment S e q u e n c e (measurement points, subject, other) (VRs, waveforms, required values)
  • Page 103 Confidential: FUJIFILM Service Center Use Only X-Pro1 Service Manual Manual focus check P mode (1) Set the manual focus(MF) mode. (1) Select the MF of a MF/S-AF/C-AF (2) Turn the focus ring. changeover switch. (3) Set the AF-S mode. (2) Focus change.
  • Page 104 Confidential: FUJIFILM Service Center Use Only X-Pro1 Service Manual Erase mode check Erase (1) Select “Erase” -> (1) Check that an erase message such “ALL FRAMES” from the menu as the following appears: and then press the “OK” button. Overseas: “ERASE ALL OK?”...
  • Page 105 PC to the camera (ensure that the PC is switched ON). (2) Switch power ON (POWER_ON) while pressing the shutter button and button. (3) Switch power OFF (POWER_OFF). (4) Check that the date has been cleared. * Please downloaded from Web server (https://denhin.fujifilm.co.jp/csg_en/index.htm or http://fujifilm-di.intranets.com/).
  • Page 106 Confidential: FUJIFILM Service Center Use Only X-Pro1 Service Manual 4-4. Resolution Check <Settings for Resolution Check > (1) It cuts it like figure 2, and please stick FxX100 Line Illumination of the resolution chart Chart (ZJ01848-100) on a board of 1,204.1mm X Center :500～850LX...
  • Page 107 Confidential: FUJIFILM Service Center Use Only X-Pro1 Service Manual ＜STEP 2＞ [Resolution Check] (1) Check the resolution at the center and periphery of the photography image with the monitor of the PC. Periphery Center Periphery [SPEC] * Check an image at actual size Center : What the line of the part to say 20 can distinguish.
  • Page 108 Confidential: FUJIFILM Service Center Use Only X-Pro1 Service Manual 4-5. Finder dust check < Finder appearance > Finder appearance inspection (1) Wipe the dust dirt of the lens surface, finder window. (2) Comparative size is measured appearance inspection sample chart and dust.
  • Page 109 Download the inspection software from WEB and install the software in a PC. X-Pro1 W Dust Inspection Soft Ver.*.** ZJ02093-***.zip We have uploaded the “X-Pro1 W Dust Inspection Soft Ver.*.** (ZJ02093-***.zip)” on our website: (https://denhin.fujifilm.co.jp/csg_en/index.htm). <Step 2> “ZJ02093-***” is a compressed file of “ZIP”.
  • Page 110 Confidential: FUJIFILM Service Center Use Only X-Pro1 Service Manual  <Step 5> When the window in the right appears, click [Install]. (Then, installation begins.) <Step 6> When the installation completes and the window in the right appears, click [Finish]. ...
  • Page 111 Confidential: FUJIFILM Service Center Use Only X-Pro1 Service Manual  4-6-3. Uninstalling X-Pro1 W Dust Inspection Soft Ver.*.** <Step 1> Click: Start ↓ Programs ↓ FUJIFILM REPAIR SERVICE ↓ X-Pro1 W Dust Inspection Soft ↓ Uninstall X-Pro1 W Dust Inspection Soft <Step 2>...
  • Page 112 Confidential: FUJIFILM Service Center Use Only X-Pro1 Service Manual  4-6-4. Inspection of Dusts by the Shooting Test <Step 1> Mount XF35mmF1.4R lens on the camera. <Step 2> Click: Start ↓ Programs ↓ FUJIFILM REPAIR SERVICE ↓ X-Pro1 W Dust Inspection Soft ↓...
  • Page 113 Confidential: FUJIFILM Service Center Use Only X-Pro1 Service Manual  <Step 5> (1) Place the VIEWER at a distance of 24mm or less from the lens-face of the camera. (2) Adjust the position of the camera so that the camera LCD shows the center of the VIEWER is displayed.
  • Page 114 Confidential: FUJIFILM Service Center Use Only X-Pro1 Service Manual  [NG] If the inspection is NG, the window in the right will appear showing the location of dusts. (1) Check the location of dusts and close the window. (2) Remove dusts and inspect again.

  • Page 115: Parts List 1(Packing And Accessories)

    Confidential: FUJIFILM Service Center Use Only X-Pro1 Service Manual 5 Parts List 1(Packing and Accessories) 5-1. US-Model •Black model Ref No. Parts No. Description Comment A101 FBB23163-100 MANUAL BAG A102 FBB23194-100 BARCODE LABEL A103 FBB23777-100 US WARRANTY CD-SIZE1 A104 FBB23779-100...
  • Page 116 Confidential: FUJIFILM Service Center Use Only X-Pro1 Service Manual 5-2. AS-Model •Black model Ref No. Parts No. Description Comment A101 FBB23163-100 MANUAL BAG A102 FBB23194-100 BARCODE LABEL A103 FBB23334-100 PRG ACC CDSIZE 01 A104 FBB23781-100 WWN PRINT CD-SIZE2 A105 FBB24290-200 LABEL PRODUCT E A106 FBB24527-100 U.BOX Y-10241...
  • Page 117 Confidential: FUJIFILM Service Center Use Only X-Pro1 Service Manual 5-3. E1-Model •Black model Ref No. Parts No. Description Comment A101 FBB23163-100 MANUAL BAG A102 FBB23193-100 BARCODE LABEL A103 FBB23334-100 PRG ACC CDSIZE 01 A104 FBB23781-100 WWN PRINT CD-SIZE2 A105 FBB24290-200 LABEL PRODUCT E A106 FBB24527-100 U.BOX Y-10241...
  • Page 118 Confidential: FUJIFILM Service Center Use Only X-Pro1 Service Manual 5-4. EE-Model •Black model Ref No. Parts No. Description Comment A101 FBB23163-100 MANUAL BAG A102 FBB23193-100 BARCODE LABEL A103 FBB23334-100 PRG ACC CDSIZE 01 A104 FBB23781-100 WWN PRINT CD-SIZE2 A105 FBB24290-200 LABEL PRODUCT E A106 FBB24527-100 U.BOX Y-10241...
  • Page 119 Confidential: FUJIFILM Service Center Use Only X-Pro1 Service Manual 5-5. EG-Model •Black model Ref No. Parts No. Description Comment A101 FBB23163-100 MANUAL BAG A102 FBB23193-100 BARCODE LABEL A103 FBB23334-100 PRG ACC CDSIZE 01 A104 FBB23781-100 WWN PRINT CD-SIZE2 A105 FBB24290-200 LABEL PRODUCT E A106 FBB24527-100 U.BOX Y-10241...
  • Page 120 Confidential: FUJIFILM Service Center Use Only X-Pro1 Service Manual 5-6. EU-Model •Black model Ref No. Parts No. Description Comment A101 FBB23163-100 MANUAL BAG A102 FBB23193-100 BARCODE LABEL A103 FBB23334-100 PRG ACC CDSIZE 01 A104 FBB23781-100 WWN PRINT CD-SIZE2 A105 FBB24290-200 LABEL PRODUCT E A106 FBB24527-100 U.BOX Y-10241...
  • Page 121 Confidential: FUJIFILM Service Center Use Only X-Pro1 Service Manual 5-7. RU-Model •Black model Ref No. Parts No. Description Comment A101 FBB21384-101 RU STICKER A102 FBB23163-100 MANUAL BAG A103 FBB23193-100 BARCODE LABEL A104 FBB23334-100 PRG_ACC_CDSIZE_01 A105 FBB23781-100 WWN_PRINT CD-SIZE2 A106 FBB24290-200...
  • Page 122 Confidential: FUJIFILM Service Center Use Only X-Pro1 Service Manual 5-8. CH-Model •Black model Ref No. Parts No. Description Comment 正規品証明シール A101 FBB19104-105 A102 FBB23163-100 MANUAL BAG A103 FBB23193-100 BARCODE LABEL A104 FBB23780-101 CH SERVICE NETWORK 1 A105 FBB24290-100 LABEL PRODUCT W...
  • Page 123 Confidential: FUJIFILM Service Center Use Only X-Pro1 Service Manual 5-9. JP-Model •Black model Ref No. Parts No. Description Comment A101 FBB21304-100 WARRANTY JP A102 FBB23163-100 MANUAL BAG A103 FBB23193-100 BARCODE LABEL A104 FBB24290-100 LABEL PRODUCT W A105 FBB24527-100 U.BOX Y-10241...
  • Page 124 Confidential: FUJIFILM Service Center Use Only X-Pro1 Service Manual MEMO 5-10 ...

  • Page 125: Parts List 2(Mechanical Block)

    Confidential: FUJIFILM Service Center Use Only X-Pro1 Service Manual 6. Parts List 2(Mechanical Block) 6-1. US/AS/E1/EE/EG/EU/RU/CH/JP-Model （X-Pro1） ・Black model M201 M201 M209 M209 Ref No. Parts No. Description Commen M201 FBB17681-300 BT2M1.7X3.5 M209 M209 M202 FBB17681-600 BT2M1.7X5.0 M203 FBB20523-100 MSAM1.4X2.5N...
  • Page 126 Confidential: FUJIFILM Service Center Use Only X-Pro1 Service Manual ・ B la c k m o d e l R e f N o . P a rts N o . D e s c rip tio n C o m m e n t...
  • Page 127 Confidential: FUJIFILM Service Center Use Only X-Pro1 Service Manual  Ref No . Part s N o. D escrip ti on Co m me n M 401 FBF 095 88-1 00 H OLDER MOUN T ASSY M 402 FF Z 09378- 100...
  • Page 128 Confidential: FUJIFILM Service Center Use Only X-Pro1 Service Manual MEMO...

  • Page 129: Electrical Parts

    Confidential: FUJIFILM Service Center Use Only X-Pro1 Service Manual 7. Electrical parts [Note] * Due to standardization, replacement in the parts list may The components indicated by mark are critical for safety. be different from the parts list specified in the circuit or the components used on the set.
  • Page 130 Confidential: FUJIFILM Service Center Use Only X-Pro1 Service Manual MEMO...

  • Page 131: Appendix

    Confidential: FUJIFILM Service Center Use Only X-Pro1 Service Manual 8. Appendix 8-1. List of Related Technical Updates Issued To ensure that after-sales service is performed accurately, keep a record here of the technical updates issued that cover this device. Technical Update No.
  • Page 132 Confidential: FUJIFILM Service Center Use Only X-Pro1 Service Manual...
