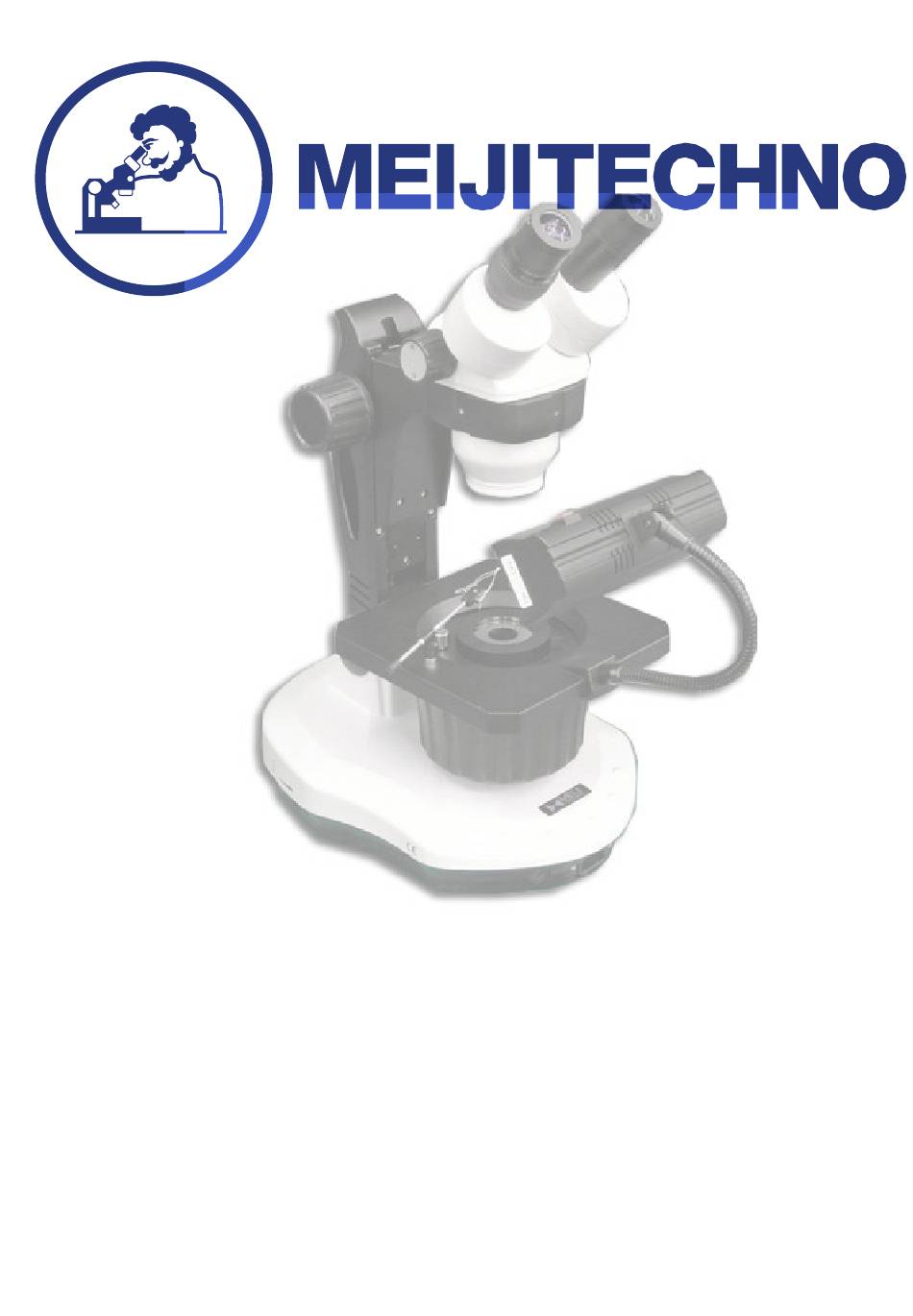

- Page 1 GMZT/PT/76 GMZ-40 BF/DF GMZT/PT/85 GMZ-41 BF/DF GMZ-50 BF/DF GMZ-5 BF/BD GMZ-51 BF/DF GMZ-5TR BF/BD GMT-1 BF/DF GMZ-8TR BF/BD GMT-2 BF/DF GMT-3 BF/DF GMZ-13 BF/BD GMZ-13TR BF/BD...
-
Page 2: Table Of Contents
Contents SZG Series Before use 1. Nomenclature …………………………………………………………………………..1 2. Assemblage ………………………………………………………………………………3 3.Operation ………………………………………………………………………………4 3-1. Illumination…………………………………………………………………………..4 3-2. Adjust observation tube & base………………………………… ……… ………. .. 4 3-3. Adjust focusing tightness ………………………………………………………….4 3-4. Diopter & focusing ………………………………………………………………..5 3-5. Interpupillary distance……………………………………………………………….5 3-6. Auxiliary lens ………………………………………………………………………..5 3-7. -
Page 3: Before Use
Before use SZG series Operation 1. As the microscope is precision instruments, it should be taken carefully and avoid impact during transportation. 2. The microscope should be set in dry and clean place. Do not expose in the sun directly and avoid high temperature and violent vibration. -
Page 4: Nomenclature
1. Nomenclature SZG series Microscope head Lock screw Eyepiece Focusing knob Microscope stand Gem clamp... - Page 5 SZG series Tri-tube Light path selection pole Switch for top light Diopter Zoom knob Screw to hold top light Focusing knob Switch for iris diaphragm Stand Knob for darkfield/brightfield Plug Power switch Lock screw for light holder Screw for Base...
-
Page 6: Assemblage
2. Assemblage SZG series Below is the assemblage scheme for SZN series, the numbers show assemblage order. Before assemblage, please make sure that every part is clean. And keep them clean during ★ assemblage. 135 camera PK mount C type monitor... -
Page 7: Operation
3. Operation SZG series Illumination ⑴ Connect main power supply and set main switch at “-”. ⑵ Use bottom light: Turn brightness adjusting knob to suitable. The direction showed. (Fig. 1) ⑶ 7W fluorescent bulb for top light and it can not adjusted for brightness. -
Page 8: Diopter & Focusing
SZG series Diopter & focusing ⑴ Turn the focusing knob to Max. magnification. Left diopter Right diopter ⑵ Turn the both eyepiece tube at “0” position. ⑶ Observe through right tube. If the image is not clear, use focusing knob to make it clear. -
Page 9: Mount And Remove Micrometer
SZG series Mount and remove micrometer ⑴ Take off the mounting ring from eyepiece. (Fig. 8) ⑵ Clean the micrometer and mount it into mounting ring, make sure the inscription side up. (Fig. 8) ⑶ Mount the mounting ring into eyepiece. -
Page 10: Iris Diaphragm
SZG series 3-11 Iris diaphragm Turn switch for iris diaphragm to change the aperture of bottom light. The aperture for iris diaphragm is Φ3mm～ Φ44mm. (Fig. 12) Soft tube Knob for 3-12 Switch Bright-field & Dark-field B/D field Turn the knob for bright-field and dark-field to select bright-field and dark-field. -
Page 11: Replace Bulb For Top Light
系列 3-16 Replace bulb for top light Please shut off power supply before replace bulb. Loose the screw on cover and turn over it. Pull out the bulb for replacement. (Fig. 15) ★ Please wait the bulb cool down for replacement. ★... -
Page 12: Technical Parameter
、 Technical parameter SZG series Optics Standard objective Objective for selection Auxiliary lens 1.5X Auxiliary lens 2X Auxiliary lens 0.75X WD 100mm Eyepiece WD 47mm WD 26mm WD 120mm Field Field Field Field Mag. Mag. Mag. Mag. 6.7X 32.8 10.1X 21.9... -
Page 13: Troubleshooting
5. Troubleshooting SZG series The performance of the microscope can’t be made fully because of unfamiliar using, this table will give some advices: Trouble Cause Remedy 1. Optical parts ⑴ Brightness too bright or Adjustment of brightness is not Adjust it correctly...
