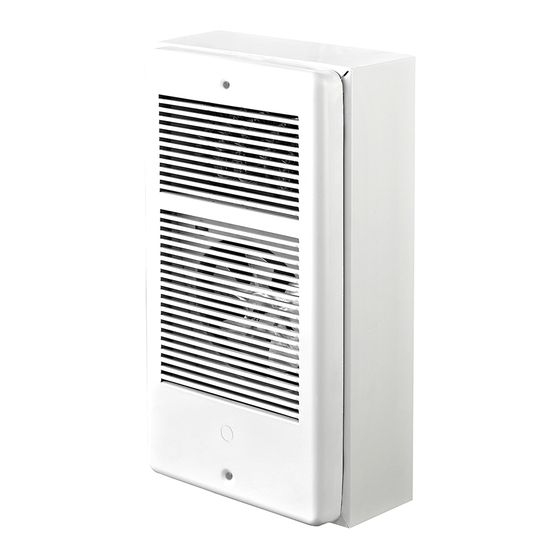

Modèle/Model: 68125109 ECH106 WALL-MOUNTED FAN HEATER 1,000 / 2,000 W Operators’ Manual p. 1 AÉROCONVECTEUR MURAL year/an 1 000 / 2 000 W warranty garantie Guide de l'utilisateur p. 9 Customer Service / Service à la clientèle : 1-866-206-0888 Our Customer service staff is available to help you. For help with product assembly, to report damaged or missing parts, or for any other information about this product, please call our toll-free number.
IMPORTANT SAFETY INSTRUCTIONS • Read all instructions before using this convection heater. SAVE THESE INSTRUCTIONS! • In Canada, the installation of this product must be carried out by a qualified electrician. When using electrical appliances, basic precautions should always be followed to reduce the risk of fire, electric shock, and injury to persons, including the following: 1.
The heater has a thermal cut-off protection. If the thermal cut-off protection trips, switch off the power at the main. The unit should reset automatically after 10 minutes. If the thermal cut-off protection trips again, determine the reason for overheating. 68125109 Model ECH106 Volts 240(CD1)V AC Watts 1,000/2,000 W Amps 4.16 / 8.33 Amp...
INSTALLATION INSTRUCTIONS MOUNTING THE RECESS BOX 1) Unit must be positioned at least 6" (15.3 cm) away from any adjacent horizontal or vertical surface. This minimum distance must be maintained. (Fig.A). 2) Once the mounting position is decided, make the opening space in wall : 8.25" W x 14.5"...
Page 6
INSTALLATION INSTRUCTIONS • This convection heater is to be used on a 240 V AC power supply and connected with a 12-gauge, 2-conductor wire with ground. • All electrical connections MUST be made inside the junction box located at the back of the unit.
MAINTENANCE & CLEANING Maintenance 1. Always turn off heater before cleaning or repairs. 2. Do not knock against or rub the appliance to avoid damaging the exterior coating, which may allow rust to appear. 3. Never immerse the appliance in water for cleaning. •...
WARRANTY Thank you for investing in a UBERHAUS product. These products have been made to quality standards and are guaranteed for domestic use against manufacturing faults for a period of 1 year (10 years for heating element) from the date of purchase.
PARTS LIST Please refer to the Schematic Drawing, on the following page. DESCRIPTION DESCRIPTION Fan blade Shell Temperature limiter Base plate Fixed plate Coaming Motor Support Fixed iron Heating element Electric wire Front panel Indicator light • Repairs should be made by an authorized repair centre. Opening this tool could invalidate your warranty.
LISTE DES PIÈCES Veuillez consulter le schéma à la page suivante. DESCRIPTION DESCRIPTION Pales du ventilateur Shell Limiteur de température Plaque de base Plaque fixe Panneaux Moteur Support Fer fixe Élément chauffant Fil électronique Panneau avant Lumière d'indicateur • Toutes les réparations doivent être exécutées par le personnel d'un centre de service autorisé.
Page 12
TABLE DES MATIÈRES • SCHÉMA ....................9 • LISTE DES PIÈCES .................10 • RÈGLES DE SÉCURITÉ IMPORTANTES ..........12 • CARACTÉRISTIQUES TECHNIQUES ............13 • INSTRUCTIONS D'INSTALLATION ............14 • ENTRETIEN ET NETTOYAGE ..............16 • GARANTIE ....................17...
RÈGLES DE SÉCURITÉ IMPORTANTES • Lisez toutes les instructions avant d'utiliser le convecteur. CONSERVEZ CES INSTRUCTIONS. • Au Canada, la pose de cet appareil doit être effectuée par un électricien qualifié. Pour utiliser un appareil électrique, vous devriez toujours observer des mesures de précaution de base, afin de réduire les risques d'incendie, de décharges électriques et de blessures corporelles, dont les suivantes: 1.
L'appareil se remet automatiquement en marche après 10 minutes. Si le circuit de protection thermique est activé, déterminez la raison de la surchauffe. 68125109 Modèle ECH106 Tension CA 240V Watts 1 000/2 000 W 4,16A/8,33A Ampères...
INSTRUCTIONS D'INSTALLATION • L'installation doit être effectuée en conformité avec les exigences de CEC par le personnel autorisé seulement. Outils requis (non fournis) • Perceuse électrique • Tournevis à tête cruciforme • Ruban à mesurer • Coupez l'alimentation électrique principale avant de commencer l'instalation pour éviter un choc électrique.
Page 16
INSTRUCTIONS D'INSTALLATION MONTAGE DU CONVECTEUR Insérer le convecteur dans le boîtier encastré et le fixer en place à l'aide des vis fournies. • Ce convecteur doit être installé par un électricien qualifié et conformément aux codes de l’électricité régionaux et nationaux. •...
INSTRUCTIONS D'INSTALLATION POSE DU PANNEAU AVANT 1. Installer le panneau avant sur le convecteur et le fixer en place avec les deux vis du panneau avant. S'assurer que la grille et le ventilateur sont alignés. TROUSSE FACULTATIVE VE POUR BOÎTIER EN SURFACE 1.
GARANTIE Merci d’avoir acheté cet appareil UBERHAUS. Ces produits ont été conçus pour répondre à des normes de qualité et sont garantis pour usage domestique contre tout défaut de fabrication pour 1 an (10 ans pour l'élément chauffant) suivant la date d’achat.
