Pressalit R360070 Mounting Instruction

Pressalit R360070 Mounting Instruction

Hide thumbs Also See for R360070:

Advertisement

Quick Links

R360070
R360085
EN
Mounting instruction
DK
Monteringsvejledning
DE
Montageanleitung
FR
Notice de montage
Subject to alteration without further notice. Ret til ændringer forbeholdes.· Recht auf Änderungen sind vor-
behalten. ·Nous nous réservons le droit d'apporter toutes modifications sans préavis. · Wijzigingen voorbe-
houden. ·Rätten till ändringar förbehålles.· Vi forbeholder oss rett til endringer. · Salvo variaciones.
NL
Montage-voorschrift
SV
Monteringsanvisning
NO
Monteringsveiledning
ES
Instrucciones de montaje
Call 1300 369 273
www.enware.com.au
Enware Australia Pty Limited
9 Endeavour Rd Caringbah NSW 2229 Australia
Ph: 02 8536 4000 info@enware.com.au
Page 1/10
2019-12-05

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the R360070 and is the answer not in the manual?

Questions and answers

Summary of Contents for Pressalit R360070

  • Page 1 R360070 R360085 Page 1/10 2019-12-05 Mounting instruction Montage-voorschrift Monteringsvejledning Monteringsanvisning Montageanleitung Monteringsveiledning Notice de montage Instrucciones de montaje Subject to alteration without further notice. Ret til ændringer forbeholdes.· Recht auf Änderungen sind vor- behalten. ·Nous nous réservons le droit d’apporter toutes modifications sans préavis. · Wijzigingen voorbe- houden.
  • Page 2 Brailleschrift verfügbar. Une signalétique opérationnelle (guide rapide) à l’attention des personnes présentant des diffi cultés de lecture ou des défi ciences cognitives est téléchargeable sur le site www.pressalit.com. Les informations utilisateur ne sont pas disponibles en braille Voor mensen met lees- of begripsproblemen kan een visuele handleiding op www.pressalitcare.com worden gedownload.
  • Page 3 WARNING: If you suspect that any individual parts may be damaged, contact your Pressalit dealer or service provider. Do not remove, attempt to repair or install parts yourself, unless directed to do so by Pressalit or its agents.
  • Page 4 R360070 R360085 Page 7/10 2019-12-05 (EN) Concrete >B25 (DK) Beton >B25 V8604 Ø8 x 70 fischer SX 10 (DE) Beton >B25 (FR) Mur de béton >B25 (NL) Betonwanden >B25 (SV) Massiv betong >B25 (NO) Betonveg >B25 (ES) Paredes de hormigón >B25 (EN) Solid Brick >= Mz12...
  • Page 5 R360070 R360085 Page 8/10 2019-12-05 R360070 R360085 max 150 kg 330 lbs max 150 kg 330 lbs ( 2 0 ⁄ ” Ø 1 ( ⁄ ⁄ ) ⁄ ) ( 2 3 ⁄ ) ⁄ ⁄ ) ⁄ )
  • Page 6 R360070 R360085 Page 9/10 2019-12-05 (7 ⁄ ) ( ⁄ ) 850 (33 ⁄ ) 1630 (1 ⁄ ) (64 ⁄ ) 700 (27 ⁄ ) 1480 (58 ⁄ ) 1580 (62 ⁄ ) 1430 (8 ⁄ ) (56 ⁄ ) 1460 (33 ⁄...
  • Page 7 R360070 R360085 Page 10/10 2019-12-05 R360070 3 ⁄ 7 0 0 ⁄ 8 ⁄ 1 6 8 6 ⁄ R360085 3 ⁄ 8 5 0 ⁄ 8 ⁄ 1 6 8 6 ⁄ Pressalit Telephone: +45 87 88 87 88...
  • Page 8 2019-06-07 · 1/7 Load bearing installation recommendations Pressalit can only be held responsible for installations carried out by Pressalit’s own installers. Pressalit can not be held responsible for reinforcements made in a faulty manner. The below recommendations are based on experience and internal test results.
  • Page 9 This advisory document shows the maximum load capacity for individual bolts and other types of anchors that can be used for fixing Pressalit’s products to the wall. The maximum load capacities shown below are per bolt/anchor and must be considered in relation to the information provided for the product that is being fitted.
  • Page 10 65 kg. fischer FTP M 8 M8 X 35 65 kg. fischer FTP K 6 M5 x 50 40 kg. Pressalit Care Telephone: +45 87 88 87 88 Pressalitvej 1 Telefax: +45 87 88 87 89 DK 8680 Ry E-mail: pressalit@pressalit.com...
  • Page 11 Maximum load per anchor (2 X 12,5 mm) water-resistant fischer KD8 toggle 85 kg. Wingit 85 kg. Snaptight 85 kg. Pressalit Care Telephone: +45 87 88 87 88 Pressalitvej 1 Telefax: +45 87 88 87 89 DK 8680 Ry E-mail: pressalit@pressalit.com...
  • Page 12 Wall cross-section Plasterboard (2 X 12,5 mm) Plasterboard (other side) Hollow between walls Washer Anchor to fit wall type Wood (40-50 mm) Pressalit Care Telephone: +45 87 88 87 88 Pressalitvej 1 Telefax: +45 87 88 87 89 DK 8680 Ry E-mail: pressalit@pressalit.com...
  • Page 13 Plasterboard (2 X 12,5 mm) Plasterboard (other side) Washer Hollow between walls Screw to fit wall type Plywood (1 X 22 mm) Pressalit Care Telephone: +45 87 88 87 88 Pressalitvej 1 Telefax: +45 87 88 87 89 DK 8680 Ry E-mail: pressalit@pressalit.com...
  • Page 14 Plasterboard (2 X 12,5 mm) Washer Screw to fit wall type Hollow between walls NO GO Steel plate (1 X 2 mm) Pressalit Care Telephone: +45 87 88 87 88 Pressalitvej 1 Telefax: +45 87 88 87 89 DK 8680 Ry E-mail: pressalit@pressalit.com...

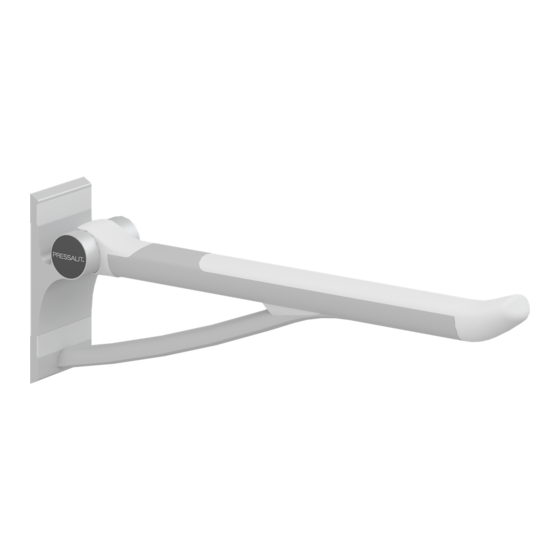

  • Page 15 R360070/R360085 R370370/R370385 R370470/R370485 R371370/R371385 R371470/R371485 R381470/R381485 R391370/R391385 R391470/R391485 PLUS support arm – Operation and maintenance manual PLUS toiletstøtte – Brugs- og vedligeholdelsesvejledning PLUS Stützklappgriff – Gebrauchs- und Pflegeanleitung PLUS barre de relèvement – Manuel d’utilisation et d’entretien PLUS toiletsteun – Gebruiks- en onderhoudshandleiding PLUS toalettarmstöd –...
  • Page 16 English . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 Dansk .
  • Page 17: Table Of Contents

    Disposal and recycling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21 Mounting instruction A mounting instruction is included with the product . It can also be downloaded from www .pressalit .com . Operational signage An operational signage can be downloaded from www .pressalit .com .
  • Page 18: Symbols Used In This Manual

    Symbols used in this manual The following symbols are used in this manual as well as the associated documentation supplied with the product . WARNING WARNING indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury . CAUTION CAUTION indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury .
  • Page 19: General Safety

    • The information in this manual is based on correct fitting of the product in accordance with our Assembly instruction . • Pressalit Care cannot be held liable if the product is used in any way which differs from that described in the guide .
  • Page 20: Product Label

    Name and address of manufacturer ⑦ Safe working load ⑧ Consult manual for use This product is CE-marked in accordance with the European ⑨ A declaration of Medical Device Regulation 2017/745. conformity can be found at www .pressalit .com .
  • Page 21: Versions

    Versions Product label placement ①. R360070 R360085 R371370 R371385 R371470 R371485 R370370 R370385...
  • Page 22 Versions Product label placement ①. R370470 R370485 R381470 R381485 R391370 R391385 R391470 R391485...
  • Page 23: Intended Use

    Intended use The support arm is used as support for a person when he or she sits down or gets up from a toilet . Intended user profile The product can be used by all - adults, children, young and old . Operating environment For indoor use in a wet environment, such as a bathroom or wash room, in private homes, nursing homes and hospitals .
  • Page 24: Operating Instructions

    Operating instructions All support arms Fold the support arm fully down . Fold it back up when not in use . You can hear a click when the support arm is correctly folded up . Take care to avoid injury to hands when in the vicinity of closing moveable parts .
  • Page 25: Sideways Adjustable Support Arms

    Sideways adjustable support arms Release the locking handle and move the support arm sideways . Tighten ① the locking handle again to secure the support arm in place . Height and sideways adjustable support arms Use the locking handle and the ②...
  • Page 26: Dismounting From Wall Track

    Dismounting from wall track To remove the support arm from the wall track, release the locking handle ① and lift the support arm upwards . Mounting on wall track Hook the upper part of the support arm on the wall track . Click the lower part of the support arm firmly to the wall track .
  • Page 27: Dismounting From Vertical Track

    Dismounting from vertical track Remove the set screw and slide ① the support arm upwards and free of the vertical track . Mounting on vertical track Pinch the locking button and hold it closed while sliding the support arm down on the vertical track . Release the locking button to secure the support arm in place .
  • Page 28: Cleaning

    Cleaning The product is to be cleaned with hot water or a mild soapy cleaning agent . A list of suitable cleaning agents tested by Pressalit can be found on www .pressalit .com . CAUTION Always read the material safety data sheet (MSDS) and supplied...
  • Page 29: Maintenance

    Maintenance Remove dust from the wall mount of the sideways adjustable support arm at a regular basis . Wipe with lubricant . Expected service life of the support arm is 10 years . Trouble-shooting Symptom Cause Action The product can’t be There might be dirt or Clean the walltrack and moved sideways .
  • Page 30: Dimensions, Mm

    Dimensions, mm R360070 R360085 R371370 R371385 R370370 R370385 R371470 R371485 R370470 R370485...
  • Page 31 R381470 R381485 R391370 R391385 R391470 R391485...
  • Page 32: Dimensions, Inches

    Product weights Model number Product mass [kg] Product mass (lbs) R360070 2,78 6 .12 R360085 3,10 6,83 R371370 2,78 6 .12 R371385 3,34 7 .36 R371470 2,78 6 .12 R371485 5,20 11 .46 R370370 4,00 8 .81 R370385 4,34 9 .57...
  • Page 33: Disposal And Recycling

    Disposal and recycling The unit contains reusable materials . There are no known hazards or risks associated with disposal of the product . All components can be discarded after having been cleaned and disinfected . When disposing of the product, we recommend that it be disassembled and broken down into different waste groups for recycling or combustion .
