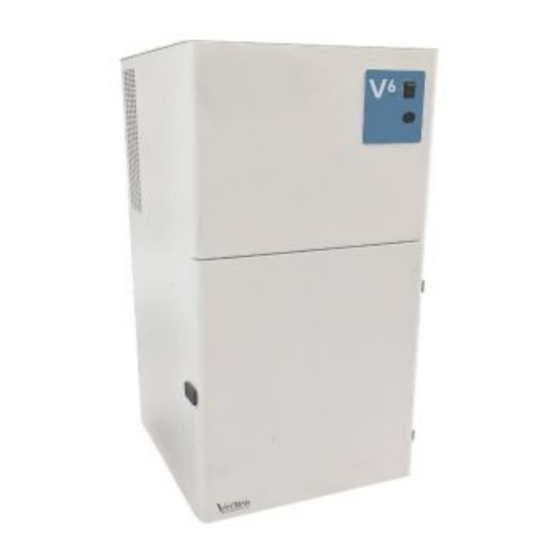

PACKING LIST
1 - V-Six Dust Collector
1 - Power Cord
1 to 3 - Port Caps (dependent on inlet configuration)
IMPORTANT SERVICE INFORMATION:
SAVE SHIPPING BOX AND FOAM FOR FUTURE
SERVICE. SHIPPING WITHOUT PROPER FOAM
MAY CAUSE DAMAGE TO UNIT
ASSEMBLY INSTRUCTIONS
1. Remove the unit and other parts from the packaging and check against the packing list.
2. Open the front door of the unit to access the filter compartment cover plate. Remove the four black
thumb screws and remove the cover plate. Locate the wing nut at the bottom of the cartridge filter
and check to make sure it has not come loose during shipping. Tighten if necessary.
3. The V-Six requires 110 -120V, 15A, at 50/60 Hz. It is designed to only be operated indoors in a dry
environment, and at an altitude below 300 meters and a temperature below 150⁰F. This unit is a
Overvoltage Catagory II and Polution Degree II product and should only be used as intended.
4. Plug the removable power cord into the socket on the back of the unit labeled Power Cord. Plug the
other end into a standard grounded wall socket. Switch the Main Power Disconnect switch on the
back of the unit into the ON position. Test the unit by turning the ON/OFF/REMOTE switch on the
front of the unit to the ON position.
5. When required to remove the power cord from the unit, first flip the switch in the front of the unit into
the OFF position. Then flip the Main Power Disconnect switch in the back of the unit into the OFF
position. Confirm that both swtiches are in the OFF position, then remove the power cord.
6. The Air Blast filter cleaner requires compressed air to operate. Connect a 1/4 inch NPT male con-
nector air fitting to the brass female connector located on the back. DO NOT SUPPLY MORE THAN
100 PSI TO THE UNIT.
7. The ideal location for the unit is in a well ventilated area, as close as possible to the workstations
to be served. The unit requires clearance of at least 6 inches on all sides and top for adequate air
movement to prevent the motor from overheating. DO NOT fully enclose the unit in a cabinet without
consulting the manufacturer first.
25799 Jefferson Ave. Murrieta, CA 92562
1-800-VANIMAN (826-4626)
www.vaniman.com
sales@vaniman.com
Page 1
V-SIX
120V
V-SIX 08/20
Advertisement
Related Manuals for Vaniman V-SIX
Summary of Contents for Vaniman V-SIX
- Page 1 Tighten if necessary. 3. The V-Six requires 110 -120V, 15A, at 50/60 Hz. It is designed to only be operated indoors in a dry environment, and at an altitude below 300 meters and a temperature below 150⁰F. This unit is a Overvoltage Catagory II and Polution Degree II product and should only be used as intended.
