Nodes: Connecting Juggler Systems
Temperature
For internal monitoring of the Juggler.
Unit ID
Last 2 digits of the Juggler module's IP address, to provide an identifier within the Project
Group.
IP Address
Full IP address of the Juggler module.
Internal Comms
Indicates the status of communication within the Juggler module.
The four Juggler channels
Every Juggler has four channels of processing: 4 × Rx, 4 × Tx. Available processing channels are
arranged left to right and coloured; unavailable channels (e.g. being utilised for the bus) are grey.

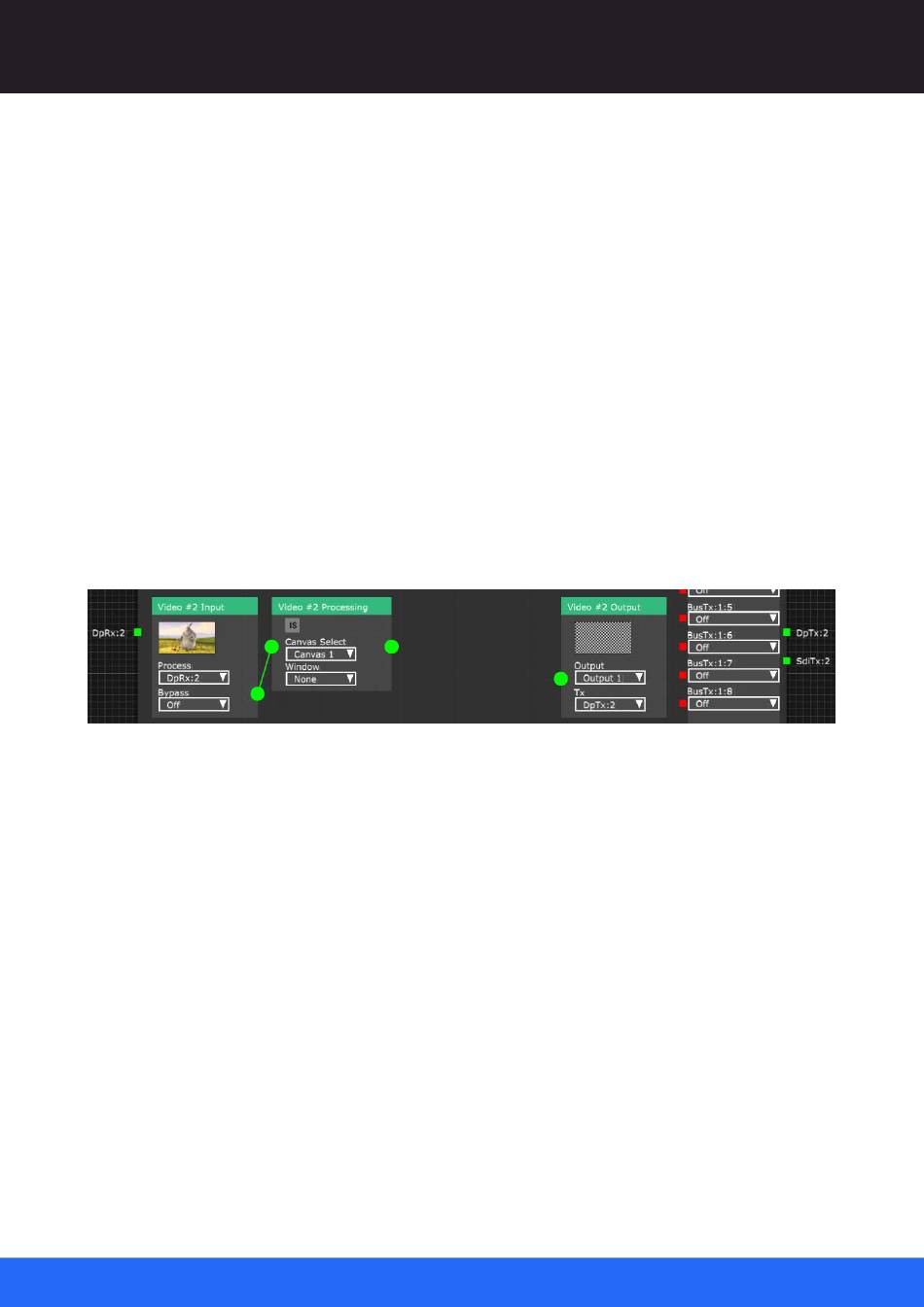

Here are the essential parts of channel 2:
On the left is the square green Juggler module input pin, here DisplayPort #2 (DpRx : 2). It is showing
green because a valid media feed has been detected on it.
Hint: Click any input or output pin to show its properties in the Properties panel.
Video Input
This block is used to connect the video channel to an input (shown here with DpRx : 2 selected). This
has connected it automatically to the Video Processing block, adding the green connecting link. You
might equally want to take a media stream from the bus as an input for this channel to process.
Process: this selector chooses the source for this channel to process.
Bypass: media can, if required, bypass all processing and go straight to the same-numbered channel
output. This direct routing reduces bandwidth if no processing is required. A warning is given if the
resolutions do not match.
