Nodes: Connecting Juggler Systems

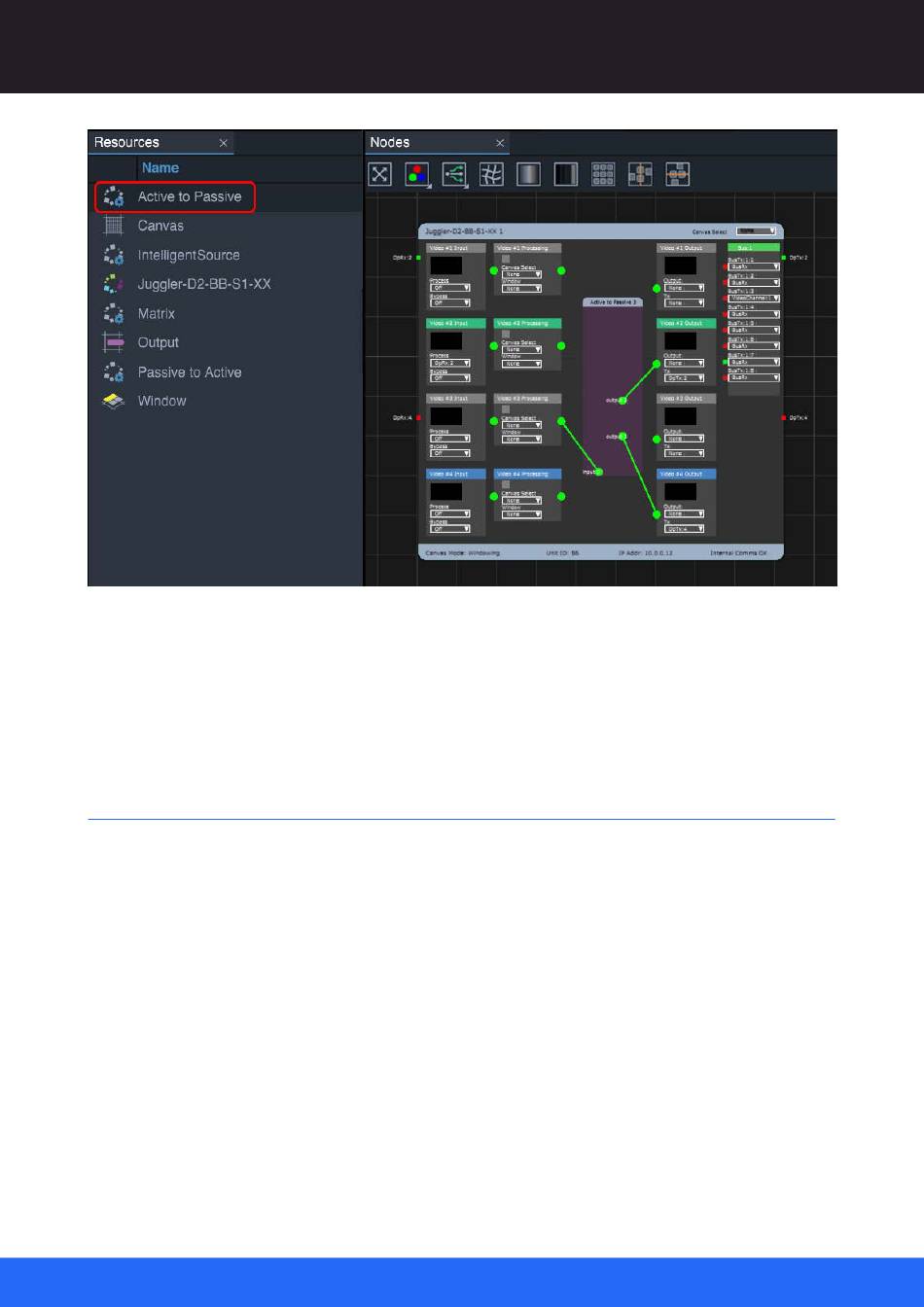

The resource is added to the Juggler in the Project tree, from where it can also be renamed or
deleted. Connect the appropriate processing input pin and the required video output pins.
This node has the effect of directing interleaved frames to two independent 2D output channels. To
use this 3D converter, a 3D sync input is required.

IntelligentSource

7thSense IntelligentSource™ is a method of inserting data into the top line of source frames in order
to detect frame sequence breaks and trigger same-frame failover to a backup stream. This can work
across Juggler modules to provide either an automatic or manual loop option for source failover. Use
of the 7thSense IntelligentSource API in conjunction with this allows both sync and video data
monitoring.
IntelligentSource detection is seen in the selected video channel as an 'IS' icon:
