Sealey SA32 Instructions

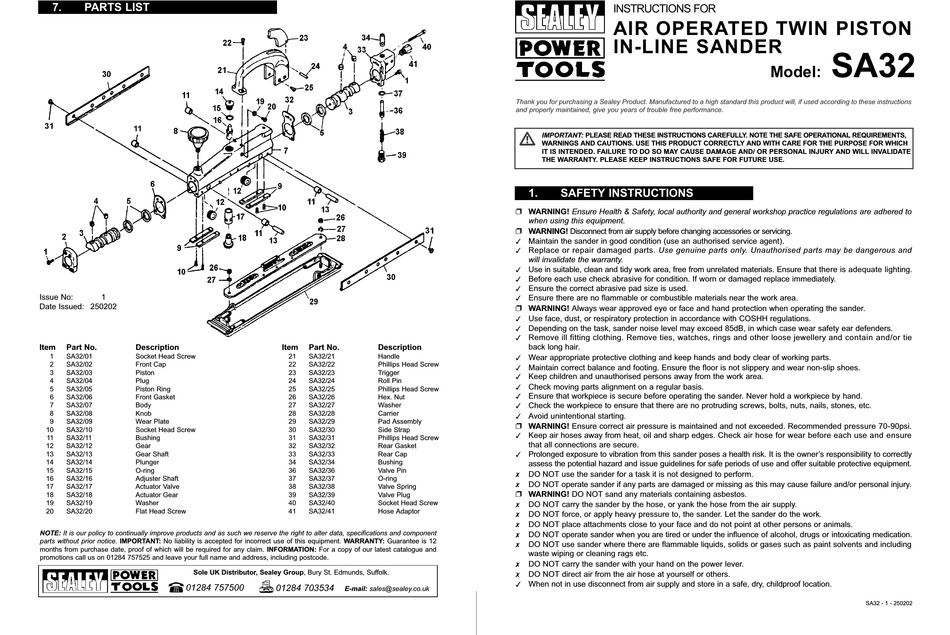

7. PARTS LIST
Issue No: 1
Date Issued: 250202
Item Part No. Description
1 SA32/01 Socket Head Screw
2 SA32/02 Front Cap
3 SA32/03 Piston
4 SA32/04 Plug
5 SA32/05 Piston Ring
6 SA32/06 Front Gasket
7 SA32/07 Body
8 SA32/08 Knob
9 SA32/09 Wear Plate
10 SA32/10 Socket Head Screw
11 SA32/11 Bushing
12 SA32/12 Gear
13 SA32/13 Gear Shaft
14 SA32/14 Plunger
15 SA32/15 O-ring
16 SA32/16 Adjuster Shaft
17 SA32/17 Actuator Valve
18 SA32/18 Actuator Gear
19 SA32/19 Washer
20 SA32/20 Flat Head Screw
NOTE: It is our policy to continually improve products and as such we reserve the right to alter data, specifications and component
parts without prior notice. IMPORTANT: No liability is accepted for incorrect use of this equipment. WARRANTY: Guarantee is 12
months from purchase date, proof of which will be required for any claim. INFORMATION: For a copy of our latest catalogue and
promotions call us on 01284 757525 and leave your full name and address, including postcode.
Sole UK Distributor, Sealey Group, Bury St. Edmunds, Suffolk.
01284 757500
Item Part No. Description
21 SA32/21 Handle
22 SA32/22 Phillips Head Screw
23 SA32/23 Trigger
24 SA32/24 Roll Pin
25 SA32/25 Phillips Head Screw
26 SA32/26 Hex. Nut
27 SA32/27 Washer
28 SA32/28 Carrier
29 SA32/29 Pad Assembly
30 SA32/30 Side Strap
31 SA32/31 Phillips Head Screw
32 SA32/32 Rear Gasket
33 SA32/33 Rear Cap
34 SA32/34 Bushing
36 SA32/36 Valve Pin
37 SA32/37 O-ring
38 SA32/38 Valve Spring
39 SA32/39 Valve Plug
40 SA32/40 Socket Head Screw
41 SA32/41 Hose Adaptor
01284 703534
E-mail: sales@sealey.co.uk
INSTRUCTIONS FOR
AIR OPERATED TWIN PISTON
IN-LINE SANDER
Thank you for purchasing a Sealey Product. Manufactured to a high standard this product will, if used according to these instructions
and properly maintained, give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS,
WARNINGS AND CAUTIONS. USE THIS PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH
IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/ OR PERSONAL INJURY AND WILL INVALIDATE
THE WARRANTY. PLEASE KEEP INSTRUCTIONS SAFE FOR FUTURE USE.
1. SAFETY INSTRUCTIONS
F WARNING! Ensure Health & Safety, local authority and general workshop practice regulations are adhered to
when using this equipment.
F WARNING! Disconnect from air supply before changing accessories or servicing.
Maintain the sander in good condition (use an authorised service agent).
!
Replace or repair damaged parts. Use genuine parts only. Unauthorised parts may be dangerous and
!
will invalidate the warranty.
Use in suitable, clean and tidy work area, free from unrelated materials. Ensure that there is adequate lighting.
!
Before each use check abrasive for condition. If worn or damaged replace immediately.
!
Ensure the correct abrasive pad size is used.
!
Ensure there are no flammable or combustible materials near the work area.
!
F WARNING! Always wear approved eye or face and hand protection when operating the sander.
Use face, dust, or respiratory protection in accordance with COSHH regulations.
!
Depending on the task, sander noise level may exceed 85dB, in which case wear safety ear defenders.
!
Remove ill fitting clothing. Remove ties, watches, rings and other loose jewellery and contain and/or tie
!
back long hair.
Wear appropriate protective clothing and keep hands and body clear of working parts.
!
Maintain correct balance and footing. Ensure the floor is not slippery and wear non-slip shoes.
!
Keep children and unauthorised persons away from the work area.
!
Check moving parts alignment on a regular basis.
!
Ensure that workpiece is secure before operating the sander. Never hold a workpiece by hand.
!
Check the workpiece to ensure that there are no protruding screws, bolts, nuts, nails, stones, etc.
!
Avoid unintentional starting.
!
F WARNING! Ensure correct air pressure is maintained and not exceeded. Recommended pressure 70-90psi.
Keep air hoses away from heat, oil and sharp edges. Check air hose for wear before each use and ensure
!
that all connections are secure.
Prolonged exposure to vibration from this sander poses a health risk. It is the owner’s responsibility to correctly
!
assess the potential hazard and issue guidelines for safe periods of use and offer suitable protective equipment.
DO NOT use the sander for a task it is not designed to perform.
%
DO NOT operate sander if any parts are damaged or missing as this may cause failure and/or personal injury.
%
F WARNING! DO NOT sand any materials containing asbestos.
DO NOT carry the sander by the hose, or yank the hose from the air supply.
%
DO NOT force, or apply heavy pressure to, the sander. Let the sander do the work.
%
DO NOT place attachments close to your face and do not point at other persons or animals.
%
DO NOT operate sander when you are tired or under the influence of alcohol, drugs or intoxicating medication.
%
DO NOT use sander where there are flammable liquids, solids or gases such as paint solvents and including
%
waste wiping or cleaning rags etc.
DO NOT carry the sander with your hand on the power lever.
%
DO NOT direct air from the air hose at yourself or others.
%
When not in use disconnect from air supply and store in a safe, dry, childproof location.
!
SA32
Model:
SA32 - 1 - 250202
