DG8SAQ VNWA 3 - Expansion board Manual v1.3
1.
Introduction:
The DG8SAQ VNWA 3 Expansion Board is a small optional Printed Circuit Board which provides the
DG8SAQ Vector Network Analyzer with additional functionality as follows:
 2nd Audio Codec allowing S11 and S21 measurements to be performed in a single sweep
instead of 2 sweeps.
 2.7V Switched mode power supply for DDS Supply - USB power consumption reduced to from
0.41 Amp without Expansion board to 0.33 Amp despite additional power consumption of 2nd
Audio Codec on the Expansion board.
 RJ11 connector making the VNWA3 control signals and power accessible to the outside world
 Optional SMA connector to obtain the multiplied 12 MHz internal TCXO clock or to feed in an
external 36 MHz clock source.
This document describes how to fit the Expansion Board into the VNWA 3 and how to configure the
VNWA Software to obtain full performance.
2.
Important Information
Copyright notice
The design of the VNWA 3 and Expansion Board is copyright by Thomas Baier DG8SAQ & SDR-Kits -
all rights reserved -
SDR-Kits

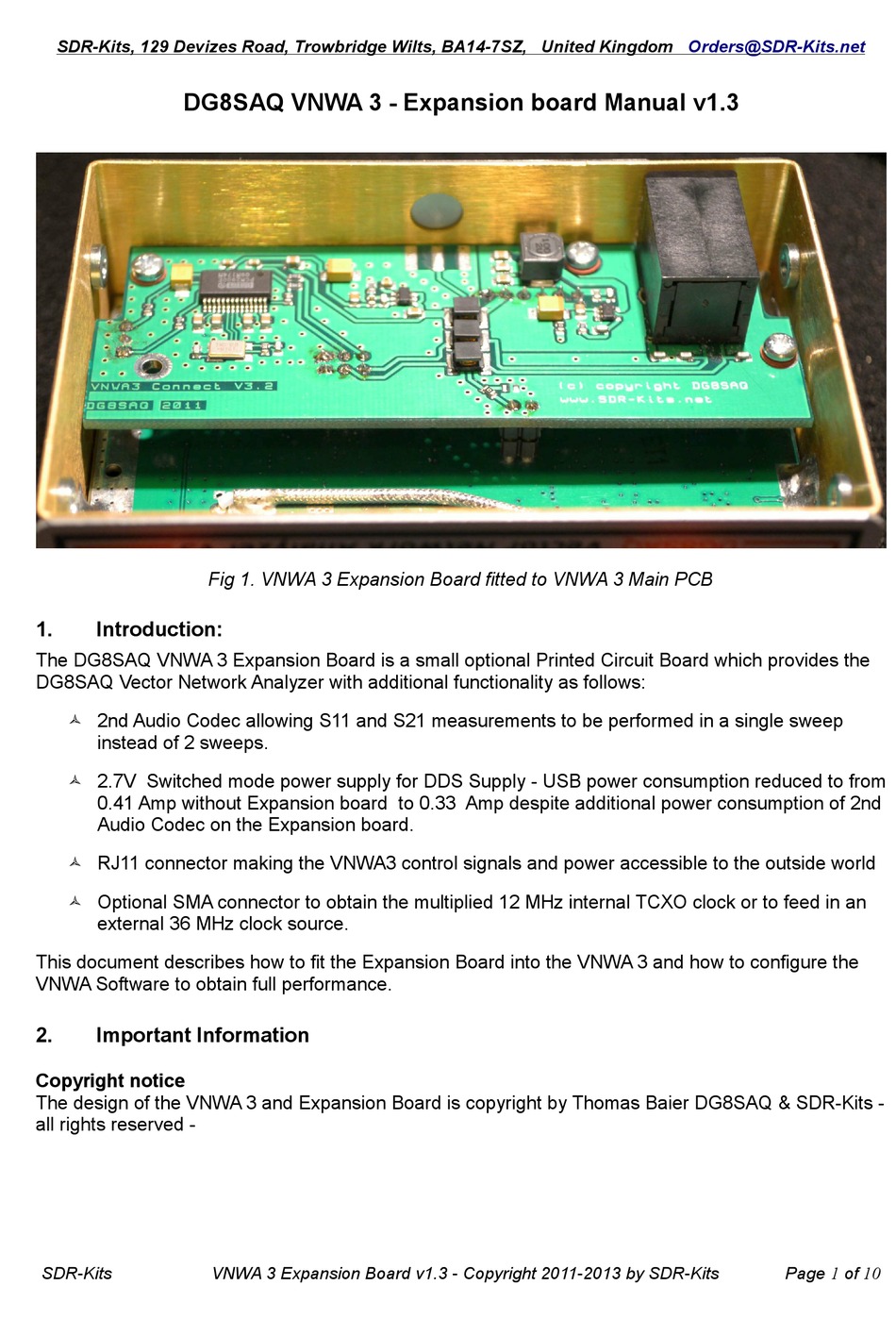

Fig 1. VNWA 3 Expansion Board fitted to VNWA 3 Main PCB
VNWA 3 Expansion Board v1.3 - Copyright 2011-2013 by SDR-Kits
Orders@SDR-Kits.net
Page 1 of 10

Advertisement

loading
Need help?

Need help?

Do you have a question about the DG8SAQ VNWA 3 and is the answer not in the manual?

Questions and answers

Summary of Contents for SDR-Kits DG8SAQ VNWA 3

  • Page 1 VNWA Software to obtain full performance. Important Information Copyright notice The design of the VNWA 3 and Expansion Board is copyright by Thomas Baier DG8SAQ & SDR-Kits - all rights reserved - SDR-Kits VNWA 3 Expansion Board v1.3 - Copyright 2011-2013 by SDR-Kits...
  • Page 2: Caution - Safety Information

    Exercise caution when connecting external equipment to the RJ11 connector of the Expansion Board. Carefully review the information given in section 7. of this Manual. If in doubt ask first 7. Always check the SDR-Kits Website for current Product information including Safety Information and latest Product Updates. http://www.sdr-kits.net/VNWA/VNWA_Documentation.html...
  • Page 3  Small crosshead screwdriver  Sharp Scalpel or hobby knife  Tweezers  25W or 40W soldering - preferably temperature controlled  small inspection mirror SDR-Kits VNWA 3 Expansion Board v1.3 - Copyright 2011-2013 by SDR-Kits Page 3 of 10...
  • Page 4  2.5 mm fibre washer on top of the PCB  then 2.5mm steel wash below the PCB  followed by the 8mm long spacer SDR-Kits VNWA 3 Expansion Board v1.3 - Copyright 2011-2013 by SDR-Kits Page 4 of 10...
  • Page 5 The best method is to remove excess solder with solder wick first and heat both ends of the resistor at the same time. The resistor can now be "swiped sideways" and removed. Fig 5. VNWA 3 - Removing Jumper A SDR-Kits VNWA 3 Expansion Board v1.3 - Copyright 2011-2013 by SDR-Kits Page 5 of 10...
  • Page 6 VNWA 3 Breakout board installation 5.1.3 Start the VNWA Application, then goto "File" and "Setup" "USB Settings" and perform "Test SDR-Kits VNWA 3 Expansion Board v1.3 - Copyright 2011-2013 by SDR-Kits Page 6 of 10...
  • Page 7 Reference signal and blue Reflected signal are as shown in fig 8. Do not worry about the lighter red Aux Audio signal, which may also be visible. SDR-Kits VNWA 3 Expansion Board v1.3 - Copyright 2011-2013 by SDR-Kits Page 7 of 10...
  • Page 8 Stereo 48 Kbps as described in the "Getting Started" booklet shipped with the VNWA or see t he VNWA Helpfile - Section "Configuration - Vista / Windows 7 audio issues" SDR-Kits VNWA 3 Expansion Board v1.3 - Copyright 2011-2013 by SDR-Kits Page 8 of 10...
  • Page 9 S-Parameter Test set Control 0 or 3.3V Logic DC Signal from AVR via 680 series Signal (output) resistor. See Helpfile for configuration details Pin 4: Not Connected green SDR-Kits VNWA 3 Expansion Board v1.3 - Copyright 2011-2013 by SDR-Kits Page 9 of 10...
  • Page 10 Note 1: resistor B shown in Fig 5. must be removed from the VNWA3 board Note 2: Cable colour refers to the colours of the optional RJ11 cable available from SDR-Kits Optional External Clock input/output An Optional SMA connector may be fitted for connecting an External 36 MHz Clock output or to tap the internal multiplied System clock.
