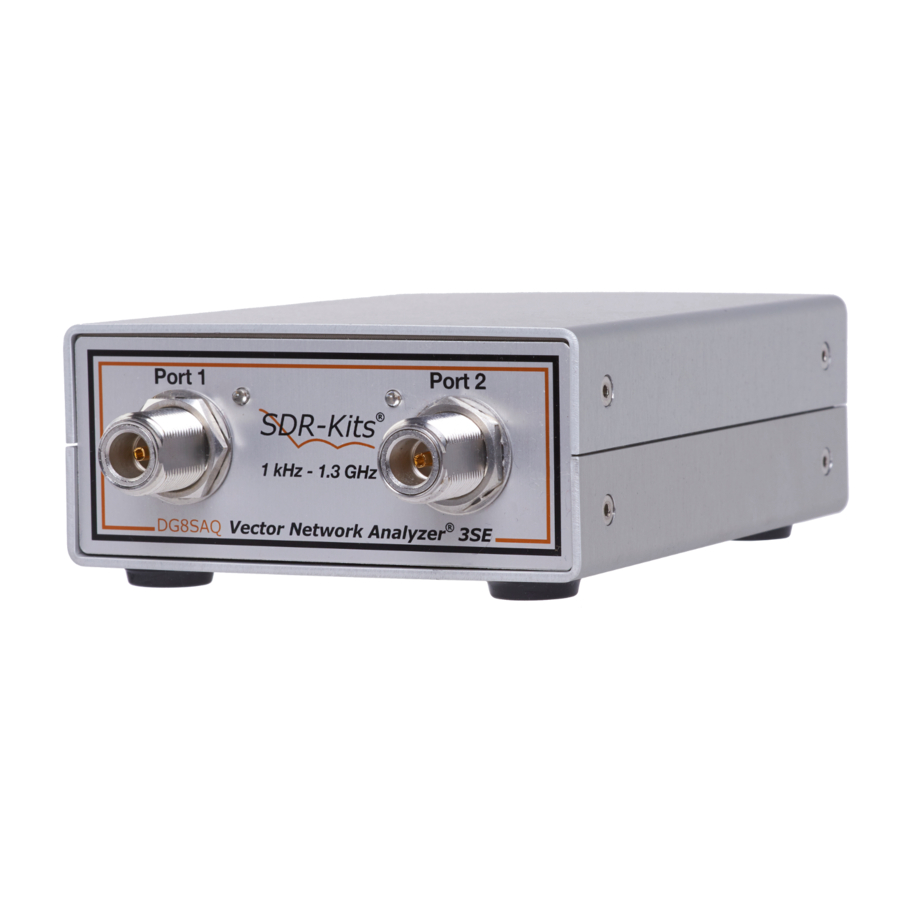

DG8SAQ VNWA 3SE 2 Port VNWA upgrade Kit assembly
1.

Introduction

Thank you for purchasing the VNWA 3SE 2 Port VNWA upgrade kit either in SMA or N-
Connector version. This leaflet contains additional user information how to perform the
hardware upgrade of a VNWA 3E to a VNWA 3SE.
This upgrade requires that the basic VNWA 3E, is fitted with the USB Expansion PCB and is in
good usable condition.
If you have a VNWA 3 then an upgrade to VNWA 3SE is possible by but first you have to fit the
VNWA Expansion board (stocked by SDR-Kits) and perform an upgrade to a VNWA 3E.
The VNWA 3 expansion board comes with a detailed upgrade manual. For all other questions it
is recommended to consult the VNWA help file by pressing the Help tab in the VNWA software.
A pdf version of this helpfile can be downloaded from:
http://www.sdr-kits.net/documents/VNWA_HELP.pdf

2. Important information

The design of the VNWA 3E and VNWA 3SE is copyright by Thomas Baier DG8SAQ and SDR-
Kits®. Reverse Engineering of the VNWA design is strictly forbidden. SDR-Kits® and the SDR-
Kits Logo are Registered Trademarks. All rights reserved.
You may wish to subscribe to the
from beginner to very experienced, this is the first place to look first if you have a question.

3. Preparation:

The VNWA 3SE upgrade kit consists of the following
1 pc assembled VNWA 3SE SMA or N upgrade assembly as ordered.

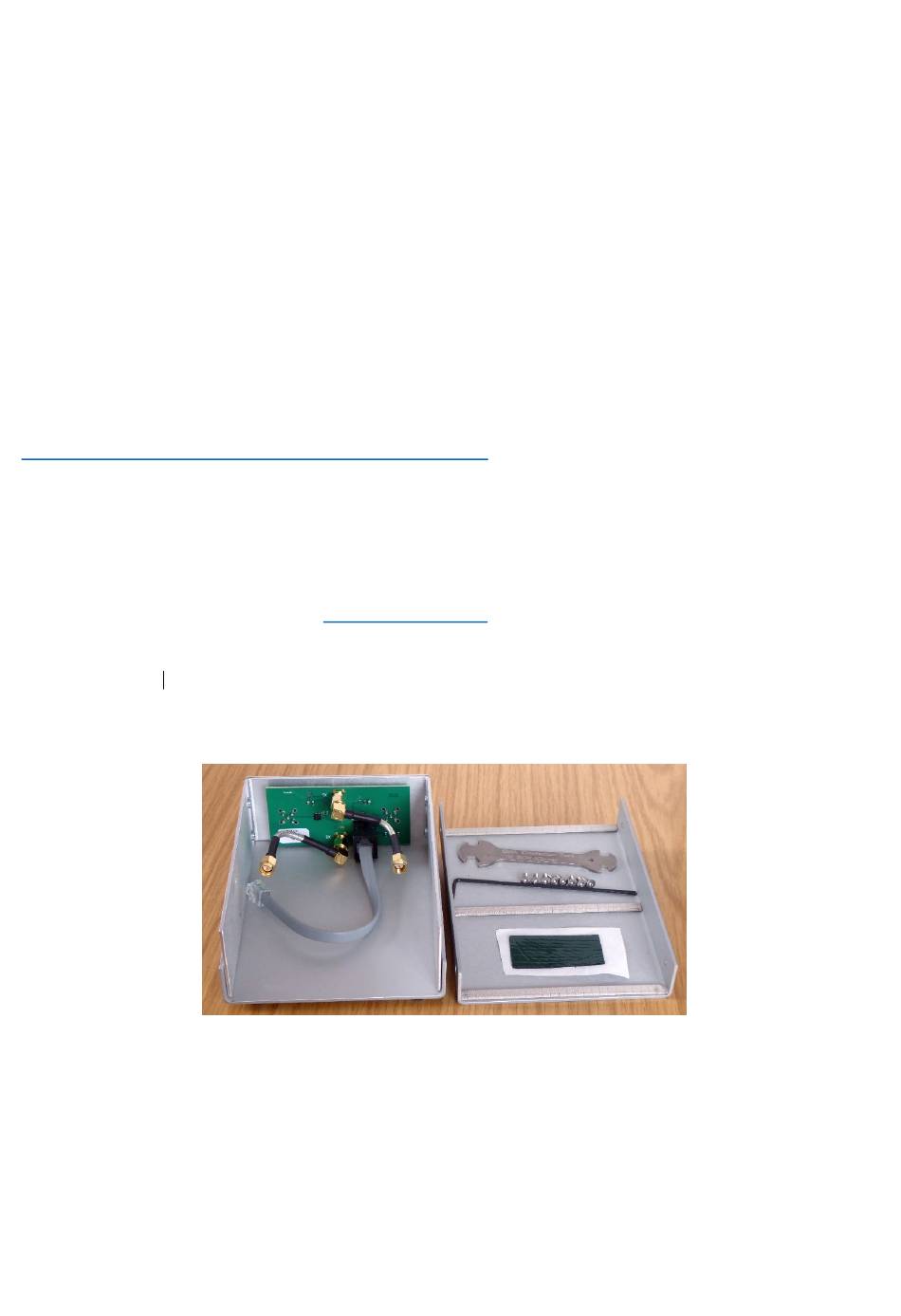

This assembled module is fitted with the S-Parameter PCB and 2 semirigid
cables and is already fitted into a new longer 2-part enclosure complete with 4
rubber feet and (3) EMC strips inside the top enclosure cover as shown.
1 pc RJ12 to RJ12 cable
8 pcs M3x8mm hex c/s screws
