SDR-Kits DG8SAQ Getting Started Manual

SDR-Kits

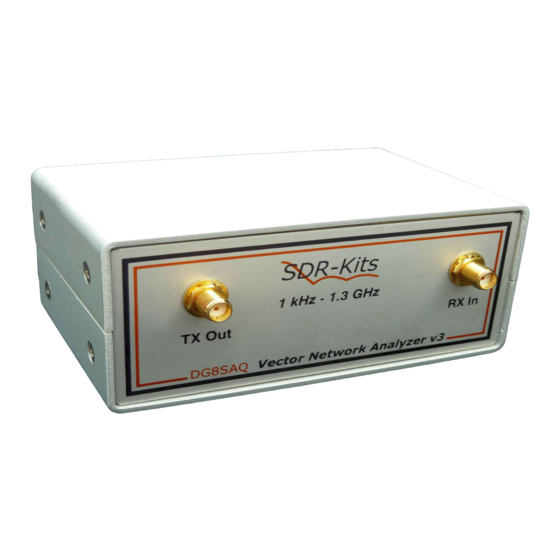

DG8SAQ Vector Network Analyzer
"Getting Started Manual" for Windows 10 – Windows 8.1 & Windows 7
For VNWA
License Code
see page 2
VNWA
Hints
see page 10
SDR-Kits ® , the SDR-Kits Logo & DG8SAQ Vector Network Analyzer
1. Introduction:
Thank you for purchasing the DG8SAQ VNWA 3 or VNWA 3E Vector Network Analyzer from SDR-
Kits ® . This manual is a concise "Getting Started" guide for release VNWA 36.7.0 onwards, showing
what steps are necessary to place the DG8SAQ VNWA in operation for the Microsoft Windows 10,
Vista, Windows 8, 8.1 or Windows 7 Operating Systems using VNWA Application 36.7.0 and later.
For Windows XP refer to:
The DG8SAQ VNWA has many advanced features and options, therefore VNWA Users are strongly
urged to study the VNWA pdf helpfile:
1.1 Shipment Damage:
You should receive the VNWA in good order, however in event of visible damage of the parcel, please
notify in first instance your Carrier or the Postal Service who delivered the shipment to you.
2. Important Information
The design of the VNWA 3.x is copyright by Thomas Baier DG8SAQ & SDR-Kits - All right reserved.
SDR-Kits ® , the SDR-Kits Logo and DG8SAQ Vector Network Analyzer
2.1 Caution - Safety Information:
1. The VNWA 3 or 3E is powered and controlled through the USB-cable supplied. The USB-
cable should be connected to the USB port of a Personal Computer capable of supplying
+5V DC at 500mA maximum.
2. Do NOT apply any DC Voltages to the RF Ports. The maximum safe input voltage into
the TX-out and Rx-in ports is an RF Voltage of 0dBm (225mV RMS with a frequency
between 1 kHz up to 1300 MHz). Exceeding this value may cause damage to the VNWA
and may invalidate product warranty.
3. Always check the SDR-Kits Website for current Product information including Safety
Information and latest Product Updates.
https://sdr-kits.net/index.php?route=web/pages&page_id=30_30
SDR-Kits ® VNWA 3 - 3E "Getting Started" Manual v1.05c - copyright 2015 - 2018 by SDR-Kits
, Office 11, Hampton Park West, Melksham, Wilts, SN12 6LH, United Kingdom
®
https://sdr-kits.net/index.php?route=web/pages&page_id=30_30
www.sdr-kits.net/documents/VNWA_HELP.pdf
Copyright and Registered Trademarks notice
® - VNWA 3E & 3
® are registered Trademarks
® are Registered Trademarks.
® Page 1 of 52
