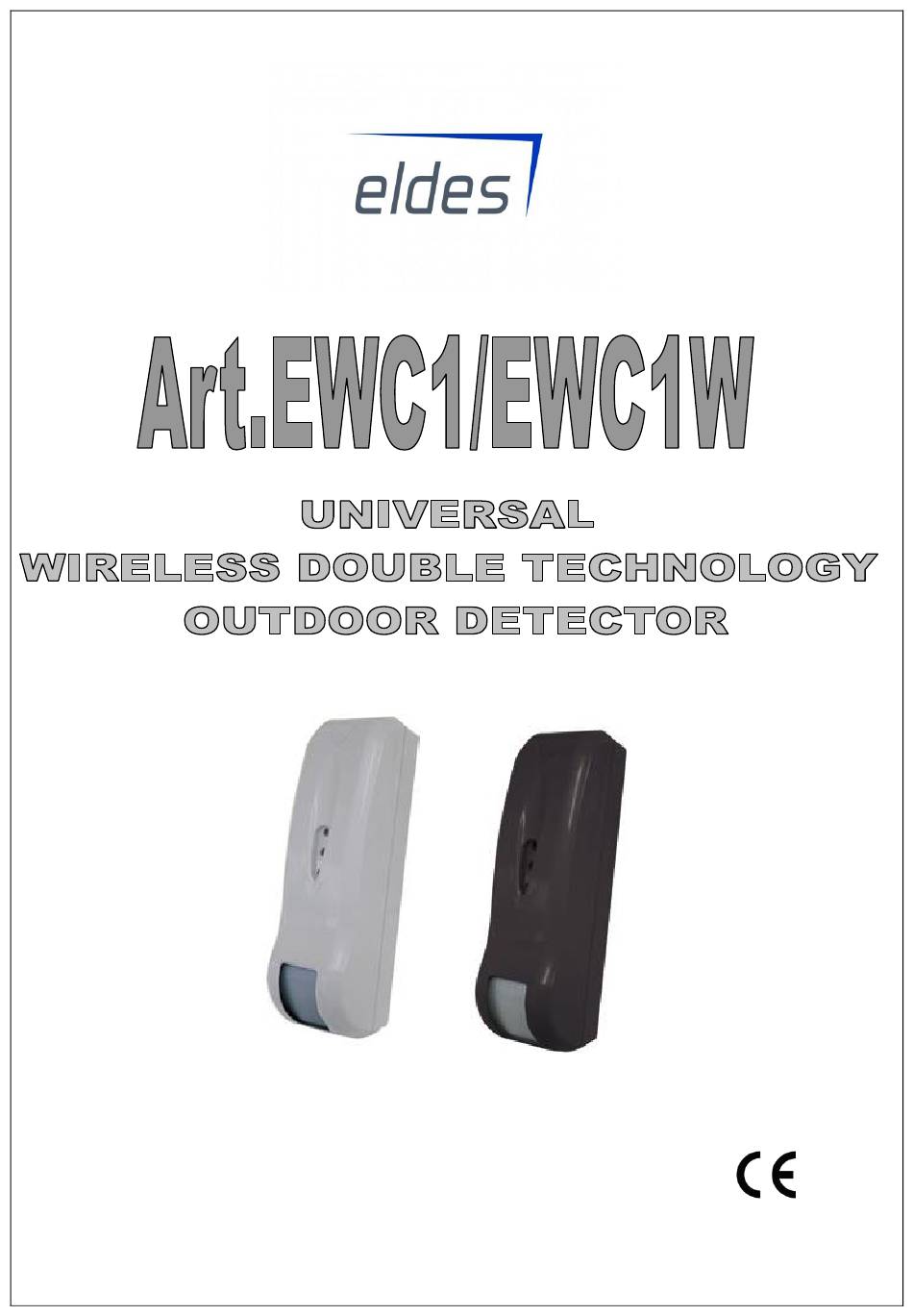

- Page 1 USER MANUAL Rev.1T10MM...
- Page 2 Thanks for having purchased our detector Art.9456/57 U the only one universal low consumption dual technology curtain detector for outdoor use. You can connect to 9456/57 U, any radio transmitter are placed in the slot, making it compatible with any existing wireless system Thanks to its low power consumption, can 'be powered by the same battery of the transmitter you wish to use, or, alternatively, with a battery 3.6 Volts Lithium.
- Page 3 DIAGRAM...
- Page 4 DECTION CHART Side view MW IR 30 cm 12 m Top view MW IR 7,5° 12 m MOUNTING Use a screw driver to remove hidden screw fixing cover (in upside detector)
- Page 5 General installation guide Installation example of wall protection. Install at about 2,1m. It can be installed also upper floors about 2,1m referring to an horizontal ground larger than 1,5m (for example balcony, ledge. Be sure no obstacles prevent detection (gutter pipe, shutter)
- Page 6 Example of installation on shutters . Install on shutter at a 2,1 m height from ground. TECHNICAL CHARACTERISTICS Parameter Condition Value Power supply standard 3-10V Max power supply 13,2 V Medium consumption 8 uA Max consumption 6 V sensor in allarm 52 mA Protection power supp.
