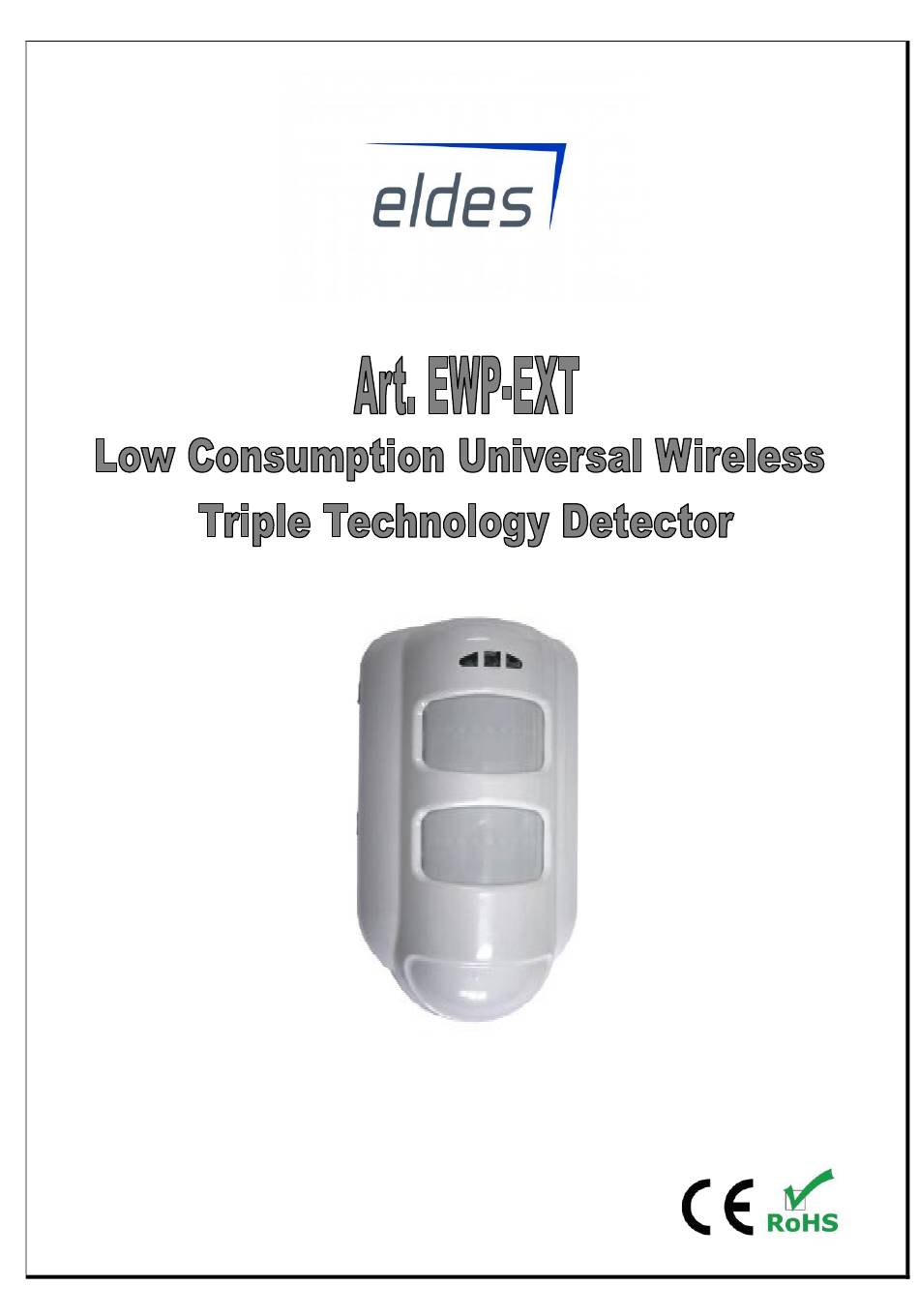

- Page 1 INSTRUCTION MANUAL Rev.1219MM...
-
Page 2: Item Description
Features: Coverage 15 m, angolo 90° Installation on the wall 10.525 GHz Frequency microwave DSP(Digital Signal Processing) Alarm technology From 5 to 15 m Detecting distance 8 zones for every detector Detection areas 0,8-1,4 m (suggested 1m) 2,1 m (with braket) Installation height Selectable: AND or triple AND Detecting mode... - Page 3 Height adjustment of the lower PIR sensor to perfectly adjust the flow and reduce false alarms, with three angles of inclination A - B - C. Immune to animals weighing less than 20 kg and height less than 80 cm if placed in AND and installed at 1 m height Coverage diagram: Plant view...
- Page 4 2AND configuration pos. 5 2AND configuration pos. 10 2AND configuration pos. 15 Using the bracket you can change Using the bracket you can change Using the bracket you can change the height of fixing the height of fixing the height of fixing Detections : AND configuration (3AND) pos.
-
Page 5: Installation
Installation For a correct functioning of the triple technology detector it is necessary to know that: • The microwave is sensitive to any movement, never point the detector towards hedges or tree fronds. Adjust the flow rate appropriately. • Metal surfaces reflect the microwave by changing its flow rate. •... - Page 6 DIP2 Triple AND (3AND) Detection in triple and is enabled. To generate an alarm, the two pyroelectric devices and the microwave must detect an intrusion at the same time. Recommended in the presence of animals. Detection in triple and disabled. To generate an alarm it is sufficient that one of the two pyroelectrics and the microwave detect an intrusion at the same time.
- Page 7 Inhibition time Between two alarm detections there is an inhibition time of about three minutes in which the sensor does not open the alarm contact. If during this time the sensor detects a further movement, the inhibition time is reset and starts again from zero. Installation suggest : Install the detector perpendicular to the ground so that the upper detection area is...
- Page 8 N.B. In the presence of hedges or bushes that can generate false alarms, use the supplied beam cover lens, covering the beams of the infrared to avoid it as shown in picture.
