MUV7-200QR

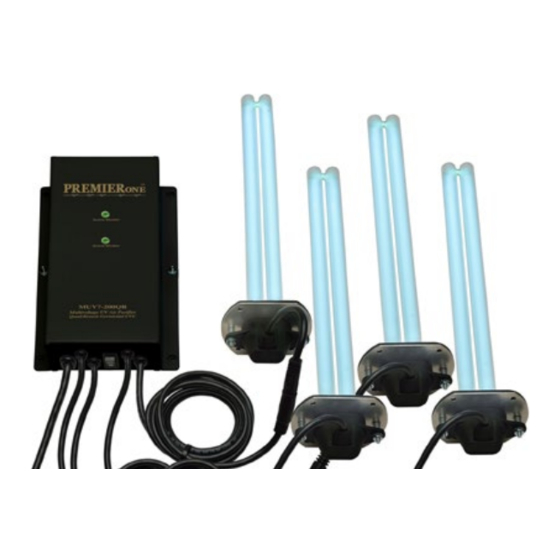

MultiVoltage UVC System
Installation & Maintenance Instructions
UNPACKING THE UNIT
Each unit is shipped with the germicidal lamps placed in a box with
protective packaging. When handling lamps take care to not touch
the glass portion of the lamp with bare hands. Oils from the hands
can cause "hot spots" which reduce lamp life. Handle by the end
caps or use a soft cloth. If you accidentally touch a lamp, use the
alcohol pad included or clean it using a soft cloth dampened with
rubbing alcohol. The lamp is fragile and proper care must be taken
when removing from packaging.
The following parts are included:
• Power Supply
• Four (4) Germicidal Twin H Lamps
(packed in lamp boxes)
• Twenty (20) Sheet Metal Screws
IMPORTANT: SAFETY INSTRUCTIONS
When installing and using this electrical equipment, basic safety precautions
1. READ AND FOLLOW ALL INSTRUCTIONS.
2. Always be sure the unit is unplugged during installation or service procedures.
3.
The ultraviolet light produced by the UV lamp is harmful to your eyes. Do not look directly at
the lamp. Should it become necessary to view the lamp, use UV-protected safety goggles.
Lors de l'installation et de l'utilisation de cet équipement, des précautions devront être suivies.
1- Lire et suivre les étapes attentivement.
2- Assurez vous de toujours débrancher avant l installation ou le service.
3-
Ne pas regarder la lampe directement avec les yeux. Si nécessaire de le faire,
veuillez porter les lunettes de soleil contre les rayons U.V.
Important: Instructions de securité
should always be followed including the following:
• Four (8) Caution Labels
• Strain Relief Connector
• Alcohol Pad for Cleaning Lamps
• Installation & Maintenance Instructions
Advertisement
Table of Contents
Related Manuals for PremierOne MUV7-200QR
Summary of Contents for PremierOne MUV7-200QR
- Page 1 MUV7-200QR MultiVoltage UVC System Installation & Maintenance Instructions UNPACKING THE UNIT Each unit is shipped with the germicidal lamps placed in a box with protective packaging. When handling lamps take care to not touch the glass portion of the lamp with bare hands. Oils from the hands can cause “hot spots”...
- Page 2 INSTALLATION: • Do not locate the germicidal lamps in direct sight of plastic material that will be exposed to the UV light, such as wiring, return-side humidifier or certain types of air filters. Check with the filter manufacturer to see if their material is UV resistant.
- Page 3 For best results, lamps need to be mounted on the same plain in order to get the combined microwatts to be sufficient for the air volume. Lamps should be mounted with as much distance upstream and downstream as possible. Example: in a ten (10) foot duct, lamps should be mounted at five (5) feet allowing five feet on each side of the lamps.
- Page 4 WIRING/FUSE The multivoltage ballast is self-adjusting and operates with voltages from 120 - 240 VAC. For 120V wiring connect the black wire to L1, white wire to neutral, green wire to ground. For 240V wiring install 5 amp inline fuses to both legs of power, then connect the black wire to L1, white wire to L2, green wire to ground. Be sure power cord is secured with included strain relief connector.
- Page 5 All returns are routed through your wholesaler and must be approved and accompanied by an RGA number. Please call PremierOne Products, Inc. at 800-982-1840 and we will guide you through the return procedure. This warranty gives you specific legal rights and you may also have other rights which vary from state to state.
- Page 6 Follow above procedure except #3 where you replace the lamps instead of cleaning them. (Note: standard off-the-shelf lamps are not compatible with this unit. Use of improper lamps will void warranty.) LSK200-16 LSK200-12 LAMP KITS FOR MUV7-200QR #LSK200-16 UVC lamp service kit with two (4) 16” UV lamps - 36-Watt each. #LSK200-12 UVC lamp service kit with two (4) 12”...
- Page 7 Product; or (b) repair the Product found approved accessories, pieces, hardware, and additions includ- to be defective. In the event that PremierOne elects to repair or ing, but not limited to, installation and use of other than a genuine replace the Product, such repaired or replaced Product shall be PremierOne lamp designed specifically for the Product;...
