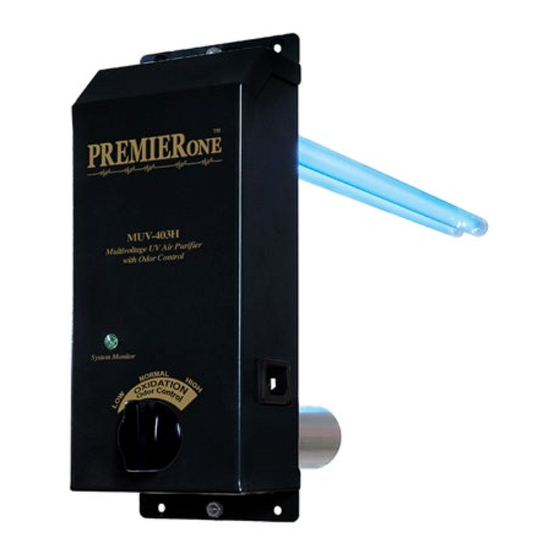

MUV-403H MultiVoltage
Oxidizing UVC System
Installation & Maintenance Instructions
UNPACKING THE UNIT
Each unit is shipped with the 5" lamp installed and the germicidal lamp
placed in a box with protective packaging. Carefully remove lamp from
the tube taking care to not touch the glass portion of the lamp with bare
hands. Oils from the hands can cause "hot spots" which reduce lamp life.
Handle by the end caps or use a soft cloth. If you accidentally touch
a lamp, clean it using the included alcohol cleaning pad or a soft cloth
dampened with rubbing alcohol. The lamp is fragile and proper care
must be taken when removing from packaging.
The following parts are included: • MUV-403H Unit
IMPORTANT: SAFETY INSTRUCTIONS
When installing and using this electrical equipment, basic safety precautions
1. READ AND FOLLOW ALL INSTRUCTIONS.
2. Minimum living space for this product is 1,200 square feet.
3. Always be sure the unit is unplugged during installation or service procedures.
4.
The ultraviolet light produced by the UV lamp is harmful to your eyes. Do not look directly at
the lamp. Should it become necessary to view the lamp, use UV-protected sunglasses.
Lors de l'installation et de l'utilisation de cet équipement, des précautions devront être suivies.
1- Lire et suivre les étapes attentivement.
2- Espace minimum d'une habitation pour ce produit est de 1,200 pi. carrés
3- Assurez vous de toujours débrancher avant l installation ou le service.
4-
Ne pas regarder la lampe directement avec les yeux. Si nécessaire de le faire,
veuillez porter les lunettes de soleil contre les rayons U.V.
• Germicidal Twin H Lamp (packed in lamp box)
• Four Sheet Metal Screws
• Installation & maintenance instructions
• 120 VAC Power Cord (PC-120)
• Alcohol pad for cleaning lamps
Important: Instructions de securité
should always be followed including the following:
3099107
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for PremierOne MUV-403H
Summary of Contents for PremierOne MUV-403H
- Page 1 The lamp is fragile and proper care must be taken when removing from packaging. The following parts are included: • MUV-403H Unit • Germicidal Twin H Lamp (packed in lamp box) • Four Sheet Metal Screws •...
- Page 2 If there is a device that creates ozone in the space such as an ionizing air cleaner, it is recommended the MUV-403H not be used in the application. For example, an MUV-401H could be substituted. Homes with multiple air handlers: install one MUV-403H on the main level air handler and an MUV-401H or MUV7-50PS on the other air handler(s).
- Page 3 If household odors are noticeable after 24 hours, increase the setting MUV-403H Shown installed on a furnace. 15 3/4” or 18 3/4” For best results,mount the AIR STREAM MUV-403H on the air return. 12” OR 16” Germicidal UVC Lamp Box size is 10.75 high x 4.25 wide.
- Page 4 10 3/4” INSTALLATION TEM Lamp 4” Use a 2” hole saw to cut 2 openi 1. Cut out area of template indicated by the two circles if using a hole saw. 2. Place template on the return path of the HVAC system and trace the hole pattern for the unit and mark centers for mounting screws.
- Page 5 MPLATE MUV-403H Oxidation Chamber ings indicated by the gray circles. LSK07403H-16/5 UVC16HCP-RF LAMP KITS FOR MUV-403H #LSK07403H-16/5 44-Watt UVC/UVV lamp service kit with 16” UV lamp. #LSK07403H-12/5 36-Watt UVC/UVV lamp service kit with 12” UV lamp. #UVC16HCP-RF 36-Watt 16” UV lamp with built in reflector.
-
Page 6: Troubleshooting
The original lamp is warranted for a period of two years. This warranty does not cover broken lamps due to shipping, installation or handling. All returns are routed through your wholesaler and must be approved and accompanied by an RGA#. Please call PremierOne Products, Inc. at 800-982-1840 and we will guide you through the return procedure.
