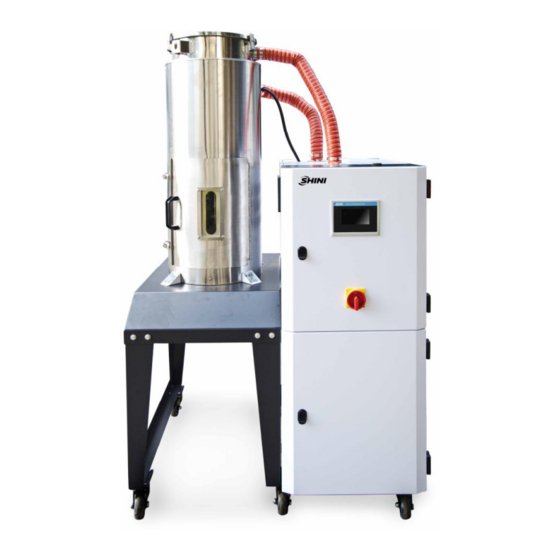

Dehumidifying dryer
Hide thumbs
Table of Contents

Advertisement

Quick Links

SDD
Series
Dehumidifying Dryer
Date: Oct. 2018
Version: Ver.F (English)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SDD Series and is the answer not in the manual?

Questions and answers

Related Manuals for Shini SDD Series

Summary of Contents for Shini SDD Series

  • Page 1 Series Dehumidifying Dryer Date: Oct. 2018 Version: Ver.F (English)

  • Page 3: Table Of Contents

    Contents General Description ..................7 1.1 Coding Principle ..................8 1.2 Feature ....................8 1.3 Technical Specifications ................ 10 1.3.1 Outline Drawing ................10 1.3.2 Specifications ................10 1.3.3 Drying Capacity ................11 1.4 Safety Regulations ................13 1.4.1 Safety Regulations for the Blowers ..........13 1.4.2 Safety Signs and Labels ..............
  • Page 4 4.1.1 System Initialization screen ............27 4.1.2 Dehumidification and Drying Monitor Page ......... 28 4.1.2.1 Drying Temperature Modification ........28 4.1.2.2 Start-up and Shutdown ........... 28 4.1.3 User Menu Screen ............... 29 4.1.3.1 Timer Setting ..............29 4.1.3.1.1 System Time Setting ............30 4.1.3.1.2 Weekly Timer Setting ............
  • Page 5 Table Index Table 1-1: Specifications .................. 10 Table 1-2: Drying Capacity 1 ................11 Table 1-3: Drying Capacity 2 ................12 Table 4-1: Project Setting Parameters .............. 34 Table 6-1: The useful life of the key parts of the product ........42 Picture Index Picture 1-1: Outline Drawing ................
  • Page 6 Picture 4-14: Project Setting Screen ..............33 Picture 4-15: Project General Setting Screen ........... 33 Picture 4-16: Project Detection Time Setting Screen ........34 Picture 4-17: Password Modification Setting Screen ........34 Picture 6-1: Filter ....................42 Picture 6-2: Honeycomb Rotor ................. 43 Picture 6-3: Installation of The Rotor ..............

  • Page 7: General Description

    Please read through this operation manual before using the machine to prevent damages of the machine or personal injuries. SDD series dehumidifying dryer combine dehumidifying and drying systems into a single unit. They have many applications in processing plastic materials, such as PA, PC, PBT, PET etc.

  • Page 8: Coding Principle

    This improves drying efficiency and reduces energy consumption while maintain a steady drying effect. l The dehumidifying section of the SDD series features two coolers to ensure a low return air temperature and low dew-point. l Compact in size for ease of movement and space saving.
  • Page 9 Chapter 6, which contains service instructions intended for service engineers. Other chapters contain instructions for the daily operator. Any modifications of the machine must be approved by SHINI in order to avoid personal injury and damage to machine. We shall not be liable for any damage caused by unauthorized change of the machine.

  • Page 10: Technical Specifications

    1.3 Technical Specifications 1.3.1 Outline Drawing SDD-40U/40H~230U/120H SDD-300U/200H~1200U/700H Picture 1-1: Outline Drawing 1.3.2 Specifications Table 1-1: Specifications Regen. Regen. Drying Drying Dry Air Model- Insulated Dimension (mm) Weight Ver. Heater (kW) Blower (kW) Heater Blower (kW) Volume (m /hr) Hopper (L) H×W×D (kg) (50/60Hz)

  • Page 11: Drying Capacity

    1.3.3 Drying Capacity Table 1-2: Drying Capacity 1 Drying Drying Drying Capacity (kg/hr) Material Temp. Time 120U 160U 230U 300U 450U (℃) (hr) /40H /40H /80H /80H /120H /120H /200H /200H PMMA IONOMER PA6/6.6/6.1 PA11 PA12 PETG PS(GP) SAN(AS) Note: 1. Please refer to above drying capacity of SCD machine, select the right model according to material usage of processing machine.
  • Page 12 Table 1-3: Drying Capacity 2 Drying Capacity (kg/hr) Drying Drying Time Material 600U 750U 900U 1200U Temp. (℃) (hr) /400H /400H /700H /700H PMMA IONOMER PA6/6.6/6.10 PA11 PA12 1062 PETG PS(GP) SAN(AS) Note: 1. Please refer to above drying capacity of SCD machine, select the right model according to material usage of processing machine.

  • Page 13: Safety Regulations

    1.4 Safety Regulations Warning! Electrical installation should be done by qualified technician only. Before connecting to AC Power Source, turn power switch to OFF position. While AC power source is connected, make sure specifications and overload protection rating of the power switch are suitable and reliable. When the machine is under care or maintenance status, turn both power switch and automatic operation switch to off.

  • Page 14: Safety Signs And Labels

    repair. 7) Don't manual discharge material inside the hopper while its not or opening cleaning door while the material is not. Picture 1-2: Safety Regulations for the Blowers 1.4.2 Safety Signs and Labels Danger! High voltage danger! This label is stuck on the electrical boxes. Attention! This label means that this area should be taken care! Warning!

  • Page 15: Signs And Labels

    1.4.4 Transportation and Storage of the Machine Transportation 1) SDD series dehumidifying dryer are packed in crates or plywood cases with wooden pallet at the bottom, suitable for quick positioning by fork lift. 2) After unpacked, castors equipped on the machine can be used for ease of movement.
  • Page 16 4) Plastic film should be used to protect the machine from dust and rains. Working environment Indoors in a dry environment with max. temperature +45℃ and humidity no more than 80%. Do not use the machine 1) If it is with a damaged cord. 2) On a wet floor or when it is exposed to rain to avoid electrical shock.

  • Page 17: Exemption Clause

    Shini (including employees and agents). Shini is exempted from liability for any costs, fees, claims and losses caused by reasons below: 1. Any careless or man-made installations, operation and maintenances upon machines without referring to the Manual prior to machine using.

  • Page 18: Structure Characteristics And Working Principle

    2. Structure Characteristics and Working Principle 2.1 Working Principle Moisture hot air from drying hopper is blown into rotor after flowing through cooler. Moisture from the air is dried by rotor and is then adsorbed by regeneration heating air. Two strands of airflow function on the rotor. And with the rotation, moisture from the air is absorbed and expelled after absorbed regeneration air to form stable low dew-point air, which is dried and heated to the drying temperature and then is blown into material barrel to closed circle to dry material.

  • Page 19: Why Choose Sdd

    2.3 Why Choose SDD For these quality deficiencies as bubble, crazing, cracking, poor transparency are due to insufficient drying of plastic materials before molding, and the engineering plastics such as: PC, PA, PBT, PET, Nylon, etc. The hygroscopic materials used in the plastics industry such as PC, PA, PBT, PET, Nylon, etc.

  • Page 20: Options

    2.4 Options l Built-in type, which meas that dew-point monitor is installed on the machine, is convenient to monitor dew-point temperature. Add "D" at the end of the model code. l Portable type, which meas that dew-point monitor is separate from the machine, is convenient to test dew-point temperature of different machines.

  • Page 21: Installation Testing

    3. Installation Testing This series of models only could be applied in working environment with good ventilation. 3.1 Machine Location Picture 3-1: Installation Drawing Installation Notice: 1) The machine can only be installed in the vertical position, make sure there’s no pipeline, fixed structure and other object which may obstruct machine installation or cause items, human injuries above the selected location and adjacent areas.

  • Page 22: Air Pipe And Material Pipe Connection

    3) Use independent power cable and ON/OFF switch. The cable's size should not smaller than those wired in the electrical requirement of control panel. 4) The power cable connection terminals should be tightened securely. 5) The machine requires a 3-phase 4-wire power source, connect the power lead (L1, L2, L3) to the live wires, and the earth (PE) to the ground.

  • Page 23: Cooling Water Connection

    Picture 3-3: Cooling Water Connection 3.4.1 Cooling Water Connection Connect through the cooling water before machine operation. For the efficiency, please follow below suggestions: 1) For easy maintenance and safety, install the ball valve at cooling water inlet and outlet. 2) Water pipe diameter should not less than the diameter of cooling water inlet and outlet.

  • Page 24: Condensation Drainage Pipe

    3.4.2 Condensation Drainage Pipe During normal operation, it will generate condensation water. Connect the water pipe at drainage outlet to remove the condensation water is necessary. 1) Drainage pipe inner diameter should not less than the diameter of drainage outlet. 2) Drainage pipe should be long enough to approach the drainage channel, and be the hose.

  • Page 25: Oil Filter

    3.6 Oil Filter Picture 3-5: Installation Dia. of Oil Filter Oil Filter Installation Steps: 1) Screw the oil filter on the top plate of the honeycomb dehumidifier. 2) Connect 1 and 2 with a heat-resistant duct and fixed both the ends with stainless steel tube.

  • Page 26: Plate Heat Exchanger

    3.7 Plate Heat Exchanger Picture 3-6: Plate Heat Exchanger Figure Each part is connected by heat-resistant air pipes and fixed by stainless steel pipes as shown in the diagram. 26(51)

  • Page 27: Application And Operation

    4. Application and Operation 4.1 Operation Procedure for HMI Picture 4-1: Description of Touch Panel Operation Notice： 1) Avoid violent collision of the touch screen when operating it. 2) In dry environment, static electricity may be produced on the touch screen, so a metal wire is needed to discharge it before operating.

  • Page 28: Dehumidification And Drying Monitor Page

    4.1.2 Dehumidification and Drying Monitor Page After a few seconds of countdown, the system initialization interface will enter the dehumidification and drying monitoring screen, as below figure: Picture 4-3: Drying Monitoring Screen 4.1.2.1 Drying Temperature Modification Directly click the <SV> of drying temperature, and the numerical keypad will pop up.

  • Page 29: User Menu Screen

    Note: in order to prolong the life of honeycomb-rotor, never stop the machine by cutting down the main power supply directly, you should turn off the machine by pressing <Button of Switch> firstly. later operation ensures honeycomb-rotor continuously run for a delaying time to cool down the rotor. This rotating time always is 3 minutes.

  • Page 30: System Time Setting

    Picture 4-7: User Menu Time Setting Screen 4.1.3.1.1 System Time Setting Enter timer screen by pressing <Time Set> on this screen, which can set current date and system time. Picture 4-8: System Time Setting 4.1.3.1.2 Weekly Timer Setting Enter into this page by pressing <WSET> once on Timer Screen. It is possible to set the starting and stopping time for each day in one week, and press <OFF>...

  • Page 31: Multilingual Setting

    Picture 4-9: WSET Screen Note: As to ensure normal working for weekly timing function, it is necessary to set the current time and date of system correctly before activating the weekly timing function. Multilingual Setting 4.1.3.2 Chinese, English or Turkish can be switched at any time. Picture 4-10: Multilingual Setting Screen 4.1.4 Alarm Message Checking Enter into this page by pressing <Button of Error Searching>...

  • Page 32: Project Setting

    Picture 4-11: Alarm Message Screen Picture 4-12: Alarm History Screen 4.1.5 Project Setting Quickly and continuously click the top-left corner three times on Drying Monitoring Screen, and a password input window will pop up. Input the correct password (Default password: 3588) to enter project password setting page, which consists three options: Nor.

  • Page 33: Picture 4-14: Project Setting Screen

    administrator or senior operator! Picture 4-14: Project Setting Screen Picture 4-15: Project General Setting Screen 33(51)

  • Page 34: Picture 4-16: Project Detection Time Setting Screen

    Picture 4-16: Project Detection Time Setting Screen Picture 4-17: Password Modification Setting Screen Table 4-1: Project Setting Parameters Remark Parameter Setting Range Open or close the onboard three-phase Three-phase detection se (use~forbidden) detection Use: The dehumidification and drying system works when external start switch input is effective.
  • Page 35 Drying overheat deviation 10.0℃（0.0～40.0℃） Drying overheat deviation First drying overheat 20.0℃（0.0～60.0℃） deviation First drying overheat deviation Regenerative overheat 10.0℃（0.0～40.0℃） deviation Regenerative overheat deviation First regenerative overheat 20.0℃（0.0～60.0℃） deviation First regenerative overheat deviation Delayed low temp. alarm 5 secs.（0～999 secs.） Delayed low temp alarm Drying low temp.

  • Page 36: Trouble-Shooting

    5. Trouble-shooting Symptom Possible causes Solution 1. The machine halts when alarm rings, and it is manually reset after faults are removed. Re-power on. If the alarm rings again, there is 2. The ROM will be detected after being EPROM Error something wrong with the controller.
  • Page 37 Check whether the setting of [regenerative EGO 1. Drying heating closes when alarm rings, overheat] and that of “normally open” and and it is automatically reset after faults are “normally close” of overheat signal are correct or removed. Return not. 2.
  • Page 38 1. When alarm rings, regenerative heating and overheat alarm output close. They are automatically reset when the regenerative temp < (regenerative set temp+ [regenerative overheat deviation]-1℃). 2. Detection when the machine is running: A. Error occurs when regenerative temp– Check whether the setting of parameter regenerative set temp >...
  • Page 39 (1) Error occurs when regenerative set temp– regenerative temp > [first regenerative low temp deviation] and [low temp alarm] is delayed. 1. When alarm rings, drying heating and overheat alarm output close. They are automatically reset when the drying temp < (drying temp+ [drying...
  • Page 40 (1) Error occurs when drying temp– drying set temp > [first drying low temp deviation] and [low temp alarm] is delayed. There is something wrong with the dew point Check whether the connection of dew point Dew- point Meter Error transducer, and the machine keeps running transducer is right, and whether the range is after error occurs...

  • Page 41: Maintenance And Repair

    6. Maintenance and Repair 41(51)

  • Page 42: The Useful Life Of The Key Parts Of The Product

    6.1 The Useful Life of the Key Parts of the Product Table 6-1: The useful life of the key parts of the product Name of the Parts Useful Life Blower Above 5 years Process heater Above 1 year Regen. heater Above 1 year Contactor Above 2000,000 act...

  • Page 43: Honeycomb-Rotor

    6.3 Honeycomb-rotor 6.3.1 What is Honeycomb-rotor The main body of the honeycomb-rotor is a honeycomb, made by ceramic fibre and organic additives, sintered under high temperature with molecular sieve and silica gel, to be strongly bonded together and form a solid and hard surface. Not like common molecular sieve, which will produce dusts and fines to pollute raw materials when aging or become saturated requiring regular replacement, the moisture of return air is quickly absorbed by numerous tunnels before coming out...

  • Page 44: Honeycomb Rotor Cleaning Steps

    9) 9) Install both the transmission belt (Fig. 13) and belt tension regulator (Fig. 14). 10) 10) Install micro-switch and fixed board firmly (Fig. 10). Picture 6-3: Installation of The Rotor 6.3.3 Honeycomb Rotor Cleaning Steps 1) Use a vacuum-cleaner with brush to suck up the dust on rotor surface. 2) Blow off the dust in the rotor channels with compressed air.

  • Page 45: Ego

    7~10 applied to molecular valve). Greasy dirt should be put into a detergent solution with xylene. 15 minutes cleaning is suggested. c. Take the rotor out of the liquid and let it rest with the channels vertically for 5 minutes so the liquid can run out. d.

  • Page 46: Dewpoint Monitor (Option)

    cooler fan and copper pipe should be dried with compressed air. 4) Make the cooler's upper and lower cover junction clean enough and smear the silica gel then fixed the covers with screws. 5) Put the cooler on the air at least 4 hours to make the silica gel drying enough then fix the cooler on the chiller and connect all pipes.

  • Page 47: Picture 6-7: Copper Joint Assembly Of Original Machine

    3) Remove the dew-point detector assembly from the machine, and mount it to another Φ28 hole on the controller. Install a dew-point monitor base on original hole, and mount two Teflon pipe connectors on the base. Via the copper pipe, one connector connects to the honeycomb and another connects to the dew-point detector assembly.

  • Page 48: Dew-Point Monitor Setting

    5) Insert the dew-point monitor into the hole on the panel and fasten it. Picture 6-10: Connection of Signal Wire 5) Connect signal wires of the transmitter and power lines of dew-point monitor with the according terminals. Connet contact No.1 and No.2 with power, supply is 220VAC. Contact No.3, No.4 and No.5 are idle.
  • Page 49 2) Adjust dew-point alarm setting value, and press “U” and “D” to adjust the value. 3) Press “E” and save setting value. 4) Press “S” to leave setting mode. 2. Special mode functional setting: Enter this mode. Firstly hold “U” “D” for three secs. and enter (after enter special mode, it displays F-X in which X means that different number.);...

  • Page 50: Maintenance Schedule

    6.7 Maintenance Schedule 6.7.1 General Machine Information Model Manufacture date Voltage Ф Frequency Power 6.7.2 Check after Installation Check that the conveying pipes are tightly locked. Check that the material clearance door is firmly closed. Check that the conveying pipes are correctly connected. Check if there are damages of honeycomb-rotor.

  • Page 51: Monthly Checking

    Check if there are loose electrical connections. Check and maintain compressed-air filter and regulator. Check solenoid valve. Check motor overload relay and anti-phase function. Check whether air pipe is shed, leaked and loose. 6.7.5 Monthly Checking Check if transmission belt is loose or not. Check the status of gear motor performance.
