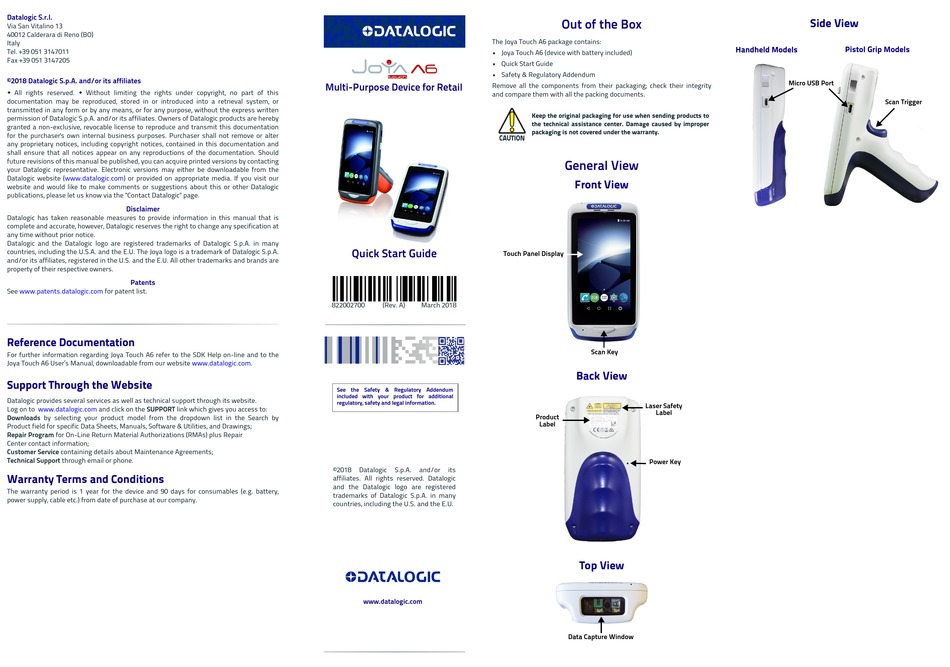

Datalogic Joya Touch A6 Quick Start Manual

Datalogic S.r.l.
Via San Vitalino 13
40012 Calderara di Reno (BO)
Italy
Tel. +39 051 3147011
Fax +39 051 3147205
©2018 Datalogic S.p.A. and/or its affiliates
 All rights reserved.  Without limiting the rights under copyright, no part of this
documentation may be reproduced, stored in or introduced into a retrieval system, or
transmitted in any form or by any means, or for any purpose, without the express written
permission of Datalogic S.p.A. and/or its affiliates. Owners of Datalogic products are hereby
granted a non-exclusive, revocable license to reproduce and transmit this documentation
for the purchaser' s own internal business purposes. Purchaser shall not remove or alter
any proprietary notices, including copyright notices, contained in this documentation and
shall ensure that all notices appear on any reproductions of the documentation. Should
future revisions of this manual be published, you can acquire printed versions by contacting
your Datalogic representative. Electronic versions may either be downloadable from the
Datalogic website (www.datalogic.com) or provided on appropriate media. If you visit our
website and would like to make comments or suggestions about this or other Datalogic
publications, please let us know via the "Contact Datalogic" page.
Disclaimer
Datalogic has taken reasonable measures to provide information in this manual that is
complete and accurate, however, Datalogic reserves the right to change any specification at
any time without prior notice.
Datalogic and the Datalogic logo are registered trademarks of Datalogic S.p.A. in many
countries, including the U.S.A. and the E.U. The Joya logo is a trademark of Datalogic S.p.A.
and/or its affiliates, registered in the U.S. and the E.U. All other trademarks and brands are
property of their respective owners.

Patents

See www.patents.datalogic.com for patent list.

Reference Documentation

For further information regarding Joya Touch A6 refer to the SDK Help on-line and to the
Joya Touch A6 User's Manual, downloadable from our website www.datalogic.com.

Support Through the Website

Datalogic provides several services as well as technical support through its website.
Log on to www.datalogic.com and click on the SUPPORT link which gives you access to:
Downloads by selecting your product model from the dropdown list in the Search by
Product field for specific Data Sheets, Manuals, Software & Utilities, and Drawings;
Repair Program for On-Line Return Material Authorizations (RMAs) plus Repair
Center contact information;
Customer Service containing details about Maintenance Agreements;
Technical Support through email or phone.

Warranty Terms and Conditions

The warranty period is 1 year for the device and 90 days for consumables (e.g. battery,
power supply, cable etc.) from date of purchase at our company.
The Joya Touch A6 package contains:
• Joya Touch A6 (device with battery included)
• Quick Start Guide
• Safety & Regulatory Addendum
Multi-Purpose Device for Retail Remove all the components from their packaging; check their integrity
and compare them with all the packing documents.
CAUTION
Quick Start Guide
Touch Panel Display
822002700 (Rev. A) March 2018
See the Safety & Regulatory Addendum
included with your product for additional
regulatory, safety and legal information.
©2018 Datalogic S.p.A. and/or its
affiliates. All rights reserved. Datalogic
and the Datalogic logo are registered
trademarks of Datalogic S.p.A. in many
countries, including the U.S. and the E.U.
www.datalogic.com

Out of the Box

Keep the original packaging for use when sending products to
the technical assistance center. Damage caused by improper
packaging is not covered under the warranty.

General View

Front View
Scan Key
Back View
Laser Safety
Label
Product
Label
Power Key
Top View
Data Capture Window
Side View
Handheld Models Pistol Grip Models
Micro USB Port
Scan Trigger
