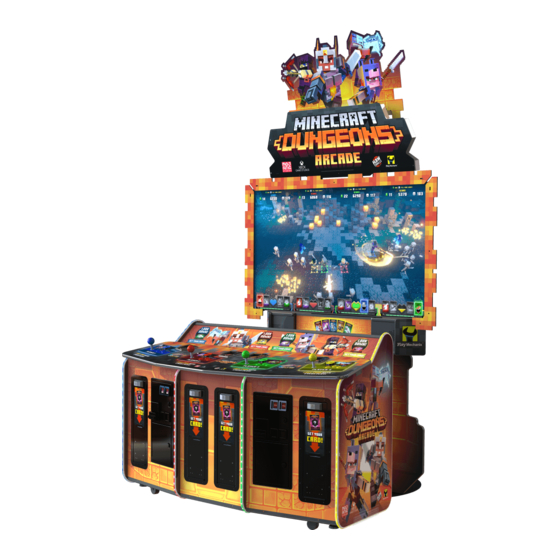

Minecraft Dungeons Arcade

Setup and Operaton

Service Manual

Revision MC-1.9-4.14.21

and Mojang are trademarks of the Microsoft group of companies.

This software is based in part on the work of the Independent JPEG Group.

This product includes software developed by the OpenSSL Project for use in the OpenSSL Toolkit. (http://www.openssl.org/)

This product includes cryptographic software written by Eric Young (eay@cryptsoft.com)

This product includes audio software developed by FMOD Studio. (https://www.fmod.com/)

Table of Contents

Need help?

Do you have a question about the Minecraft Dungeons Arcade and is the answer not in the manual?

Questions and answers

Summary of Contents for Play Mechanix Minecraft Dungeons Arcade

Page 1 Minecraft Dungeons Arcade Setup and Operaton Service Manual Revision MC-1.9-4.14.21 © 2021 Mojang AB. All Rights Reserved. Minecraftt Minecraft Dungeonst the Minecraft logot and Mojang are trademarks of the Microsoft group of companies. This software is based in part on the work of the Independent JPEG Group.
Page 2 Table of Contents Safety................................3 Product Specifcatons..........................5 Fuse Replacement Guide..........................5 Setup................................6 Game Software Setup..........................21 Online Registraton............................21 PC USB Connecton Guide..........................22 Maintenance..............................23 Troubleshootng............................26 Online Troubleshootng..........................28 Parts................................29 System Diagrams............................40 Contact Informaton..........................47 Copyright © 2021 Play Mechanix™ Inc. All rights reserved. Page 2...
Page 3 Do not install game near sprinkler or other water jet sources. Do not use water jet to clean game. Keep minimum clearance behind game and wall for proper ventlaton but also prevent accesss of liquid from spills and sprays from entering ventlaton holes. Page 3 Minecraft Dungeons Arcade Game Software copyright 2021 PlayMechanix™ Inc. All rights reserved.
Page 4: Specifications
For reasons such as performancet this product’s specifcatons may change without notce. Federal patentt copyright and other intellectual property laws protect the contentt devices and design of the game and its equipment. Copyright © 2021 Play Mechanix™ Inc. All rights reserved. Page 4...
Page 5 USE ONLY SPECIFIED FUSE TYPE AND JALUE. (9) 12J fuses: Please see unit for specifed fuse labeling. Abbreviatons: 5A 250J 5At 250JAC Fast Actng 3AG Fuse Littlefuse 0312005.MPP (or equivalent) Page 5 Minecraft Dungeons Arcade Game Software copyright 2021 PlayMechanix™ Inc. All rights reserved.
Page 20 Check that no component is excessively hot or emitng foul odors. If so, turn of AC power and disconnect line cord. Contact Betson service. Once software loadst you will be asked to setup the cabinet software. Copyright © 2021 Play Mechanix™ Inc. All rights reserved. Page 20...
Page 21: Initial Setup
8. Upon a successful re-boott you are ready to make adjustments to pricingt volume and other functons found in the Diagnostc menu. Minecraft Dungeons Arcade can be connected online. Keeping the unit online will allow it to update to new software releases automatcally and will provide performance reports on coinup.com.
Page 23: Hard Drive Recovery
7. After 30 secondst turn both cabinet power switches to ON. 8. After game restartst the game will proceed through the Setup wizard with factory defaults. Page 23 Minecraft Dungeons Arcade Game Software copyright 2021 PlayMechanix™ Inc. All rights reserved.
Page 24: Refilling Card Dispensers
5. Check cards for damage and discard any damaged cards. 6. Put the undamaged cards back into the card hopper. 7. Place the weight back into the card hopper. 8. Close the card dispenser door Copyright © 2021 Play Mechanix™ Inc. All rights reserved. Page 24...
Page 25 5. Wait for authorizaton process to completet which can take up to 30 seconds. Once completet an on-screen message will verify the new cards are authorized. 6. Remove the used RFID card. 7. Close the coin door. Page 25 Minecraft Dungeons Arcade Game Software copyright 2021 PlayMechanix™ Inc. All rights reserved.
Page 26: General Troubleshooting
(Game Operaton May Become Unstable.) Use “Test” Switch to Enter Test Mode and Run “File Test.” Press Start To Contnue. Game resets Bad fle. Run File Test. Restore hard drive. Copyright © 2021 Play Mechanix™ Inc. All rights reserved. Page 26...
Page 27 Check and replace fuse. Check for proper voltage No power to RIO2 board (+12J) at RIO2 P1 connector Replace RIO2 board with known Bad RIO2 Board functonal board Page 27 Minecraft Dungeons Arcade Game Software copyright 2021 PlayMechanix™ Inc. All rights reserved.
Page 28 Enable communicaton on ports 80t 443t 7786t and 7787. Database or File Server is down Wait 30 minutes and revisit Test Connecton screen. If stll reportng failuret call CoinUp® service. Copyright © 2021 Play Mechanix™ Inc. All rights reserved. Page 28...
Page 30 GRILL-WOOFER 600-02742-01 RETAINER-CONSOLE-MC-4P 600-02743-01 CLIP-TMOLDING-MC-4P 600-02766-01 BRACKET-CP-MOUNT-MC-4P 600-02767-01 RETAINER-CONSOLE-TOP-MC-4P 600-02768-01 RETAINER-CENTER-CONSOLE-BASE-MC-4P 600-02769-01 RETAINER-LT-RT-CONSOLE-BASE-MC-4P 600-02791-01 PETG-CONSOLE-MC-4P 606-01869-01 TRANSLITE-CONSOLE-MC-4P 603-01002-01 TMOLDING-CLIP-12INCH-CLEAR 606-01866-01 MC-4P-CARD-DISPENSER-DECAL CARD-DISPENSER-ASSY CARD-DISPENSER-ASSY CONTROL-PANEL-ASSY-MC-4P CONTROL-PANEL-ASSY-MC-4P 600-02770-01 BRACKET-CABLE-COJER-MC-4P POWER-PLATE-ASSY AC-POWER-PLATE-ASSY Copyright © 2021 Play Mechanix™ Inc. All rights reserved. Page 30...
Page 31 Large Round GREEN IPD (.187 Gold SWt 6J White LED) w/ “BuyCardOnly” Legend 702-00117-01 Large Round YELLOW IPD (.187 Gold SWt 6J White LED) w/ “BuyCardOnly” Legend 800-00080-01 49-WAY-JOYSTICK-CATAPULT-BLUE-KNOB 800-00081-01 49-WAY-JOYSTICK-CATAPULT-RED-KNOB 800-00082-01 49-WAY-JOYSTICK-CATAPULT-GREEN-KNOB 800-00083-01 49-WAY-JOYSTICK-CATAPULT-YELLOW-KNOB Page 31 Minecraft Dungeons Arcade Game Software copyright 2021 PlayMechanix™ Inc. All rights reserved.
Page 32 CD-1300 Card Dispenser w/ 340 Cassette 600-02073-01 Card Dispenser Mountng Plate 600-02062-01 Card Dispenser Left Stop Bracket 600-02061-01 Card Dispenser Right Stop Bracket 600-02060-01 Extended Card Dispenser Door Frame Plate 604-00036-01 T-HANDLE-LOCK-ASSY Copyright © 2021 Play Mechanix™ Inc. All rights reserved. Page 32...
Page 34 Card Reader Bezel 603-00855-01 Card Reader Camera Holder Card Reader Webcam (10CM focus) – 500-00213-01 CM-020-10CM 500-00162-01 White Flexible LED Tapet w/ FOAM (5 CM) 600-02072-01 Card Reader Glass Copyright © 2021 Play Mechanix™ Inc. All rights reserved. Page 34...
Page 35 Minecraft – Four Player – 65” LCD Assembly Part Numbers Item Part No. Descripton 65-LCD-SAMSUNG 65”LCD-SAMSUNG 600-02429-01 Corner LED Bracket 600-02428-01 Center LED Bracket 606-01860-01 SINTRA-LCD-LEFT-JERT-BEZEL-MC-4P 606-01861-01 SINTRA-LCD-HORZ-BEZEL-MC-4P 606-01885-01 SINTRA-LCD-RIGHT-JERT-BEZEL-MC-4P Page 35 Minecraft Dungeons Arcade Game Software copyright 2021 PlayMechanix™ Inc. All rights reserved.
Page 36 Minecraft – Four Player – 65” LCD Assembly Part Numbers Item Part No. Descripton QBR-QMR75-MINECRAFT SAMSUNG-75-LCD 600-00751-01 BRKT-UNIJ JERT LCD MOUNT 600-02428-01 Center LED Bracket 600-02429-01 Corner LED Bracket 606-01948-01 SINTRA-LEFT-LCD-BEZEL-MC-4P-75 606-01949-01 SINTRA-RIGHT-LCD-BEZEL-MC-4P-75 606-01950-01 SINTRA-TOP-LCD-BEZEL-MC-4P-75 Copyright © 2021 Play Mechanix™ Inc. All rights reserved. Page 36...
Page 37 5.25 FULL RANGE SPEAKER 100 cm LED Strip (WHITE) 100cm LED Strip (WHITE) 60CM-WHITE-LED-STRIP 60cm LED Strip (WHITE) 600-02750-01 RETAINER-SPEAKERBOP-MC-4P 600-02793-01 PETG-SPEAKER-BOP-MC-4P 600-02794-01 PETG-SPEAKER-BOP-BASE-MC-4P 600-02795-01 CABLE-COJER-SPEAKERBOP-MC-4P 606-01868-01 TRANSLITE-BELOW-LCD-NC-4P Page 37 Minecraft Dungeons Arcade Game Software copyright 2021 PlayMechanix™ Inc. All rights reserved.
Page 38 BRACKET-UPLIGHT-MC-4P 606-01872-01 PETG-SCREENED-MARQUEE-MC-4P 70CM LED STRIP 70cm LED Strip (WHITE) 100cm LED Strip (White) 100cm Flexible LED Strip (White) 160CM-RGB-LED-STRIP WHITE-LED-STRIP-MARQUEE-MC-4P 600-02746-01 BRACKET-MARQUEE-MOUNT-MC-4P 600-02747-01 STRAP-TUBE-MARQUEE-MC-4P 600-02792-01 PETG-MARQUEE-MC-4P 606-01867-01 TRANSLITE-MARQUEE-MC-4P Copyright © 2021 Play Mechanix™ Inc. All rights reserved. Page 38...
Page 39 70CM LED STRIP 70cm LED Strip (WHITE) 110cm LED Strip (White) 110cm Flexible LED Strip (White) 160CM-RGB-LED-STRIP WHITE-LED-STRIP-MARQUEE-MC-4P 600-02792-01 PETG-MARQUEE-MC-4P 606-01867-01 TRANSLITE-MARQUEE-MC-4P 600-02843-01 BRACKET-MARQUEE-MOUNT-MC-4P-75 600-02844-01 STRAP-TUBE-MARQUEE-MC-4P-75 Page 39 Minecraft Dungeons Arcade Game Software copyright 2021 PlayMechanix™ Inc. All rights reserved.
Page 40 PLATEt AC – LINE FILTERt CIRCUIT BREAKERt ON/OFF SW Power Inlet Receptacle IEC Appliance Inlett Screw-on Mountngt Front Sidet Quick-connect 10A 5A-Circuit Breakert Snap-in typet Fuseholder stylet 1 pole T9-611-5A (Schurter #4404.0007) Copyright © 2021 Play Mechanix™ Inc. All rights reserved. Page 40...
Page 47 Betson can be reached at (800) 524-2343 Fax (201) 438-4837 www.betson.com Betoon Enterprioeo Headquartero 303 Paterson Plank Rd. Carlstadtt NJ 07072 (800) 524-2343 or (201) 438-1300 fax (201) 438-4837 Page 47 Minecraft Dungeons Arcade Game Software copyright 2021 PlayMechanix™ Inc. All rights reserved.
