TRQ I-SIGN Series Manual

SELF CONTAINED EMERGENCY SIGN
SERIE I-SIGN y VIZART

Technical Characteristics:

- Supply 230V~ 50/60Hz.
Maintained.
-
Stand by and re-start via Telemando(TM).
-
Green Led indicating, the Battery re-charging.
-
- Illumination via High luminosity white led.
- Stabilized current of Led (constant current control).
Visibility 24 mts. (As per NORM UNE-EN 1838).
-
Autonomy superior 1 hour.
-
- Battery Ni-Cd 6V – 0,8Ah.
- Protection Grade IP40.
Connection via ∅6 mm cable.
-
Overload & end of battery discharge protection.
-
Class I Luminary.
-
Pmma Diffuser of 8 mm width.
-
- Aluminum front frame in 2 colors: White & Black ( ISIGN) and White & Aluminum ( VIZART)
- Surface and wall recessed mounting.
Pictograms & mounting accessories included.
-

Norms Applied:

- CE marked as per 2006/95/CE y 2004/108/CE UNE-EN 60598-2-22
- UNE-EN 60598-1
- UNE-EN 1838

Installation:

- Install the luminary following the mounting instructions on the next page and electrical connection
diagram.
Switch On the Power and verify that the Pictograms and the green led indicating the battering
-
charging are illuminated.
- The Luminary will not respond to its complete autonomy until 24 hours, as the batteries are supplied
Discharged.
- If during working, the frontal diffuser is disconnected, the luminary will be blocked, to reset, first
disconnect the luminary from the power supply , then the battery, wait for few seconds and connect
first the battery then the power.

Maintenance

:
-The Batteries should be changed once their duration gets inferior to the assigned.)
-The Batteries and the electronic components should be re-cycled or eliminated in an adequate way.
-Before doing any maintenance operation, please make sure that the Main supply is switched off and the
luminary is in STAND BY Position.
Telemando TM: TM is used for verification and also for standby / restart in emergency mode

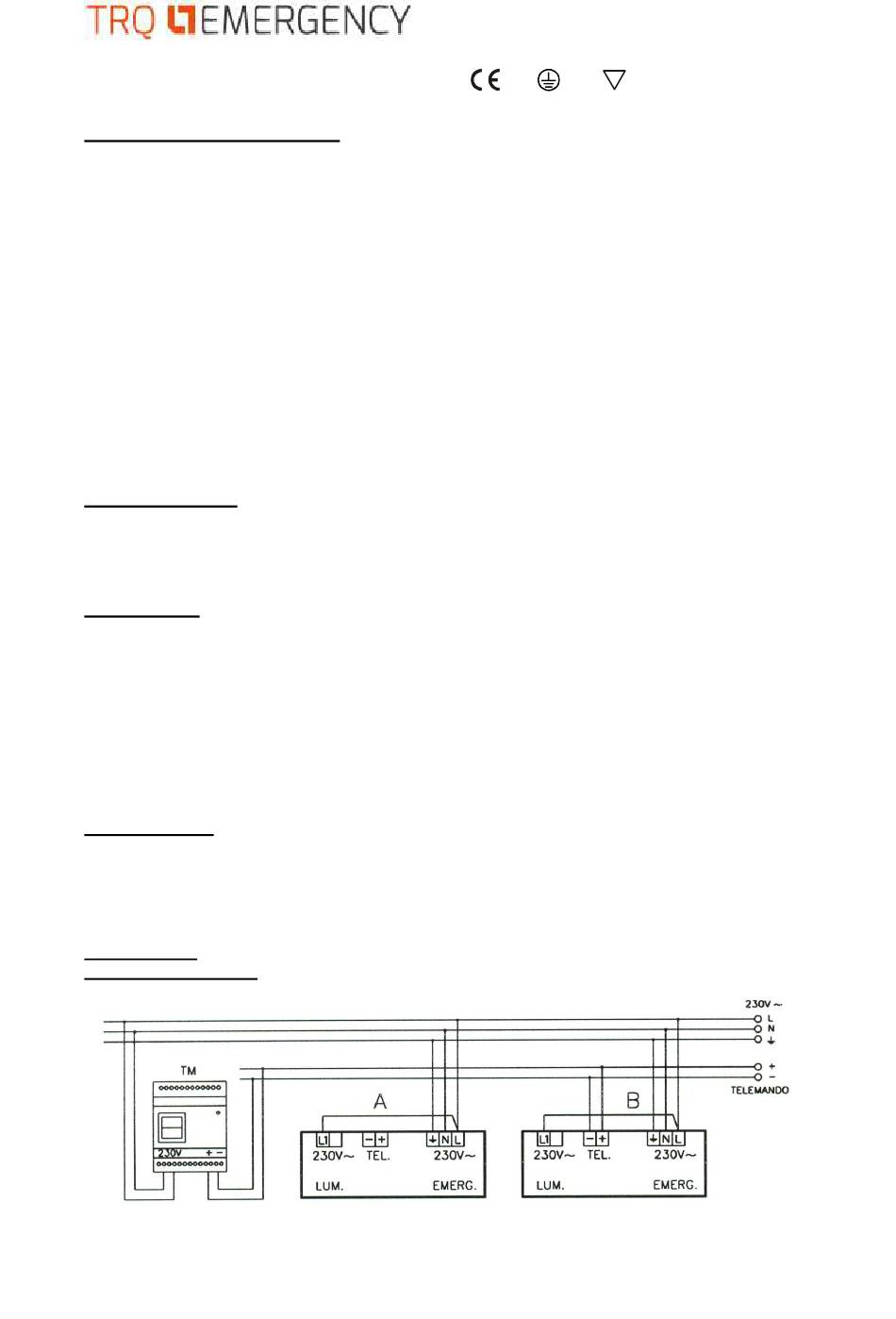

Connection Diagram:

A: Connection without Telemando.
Lighting Technologies TRQ, S. L.
B: Connection with Telemando.
F
IP40
