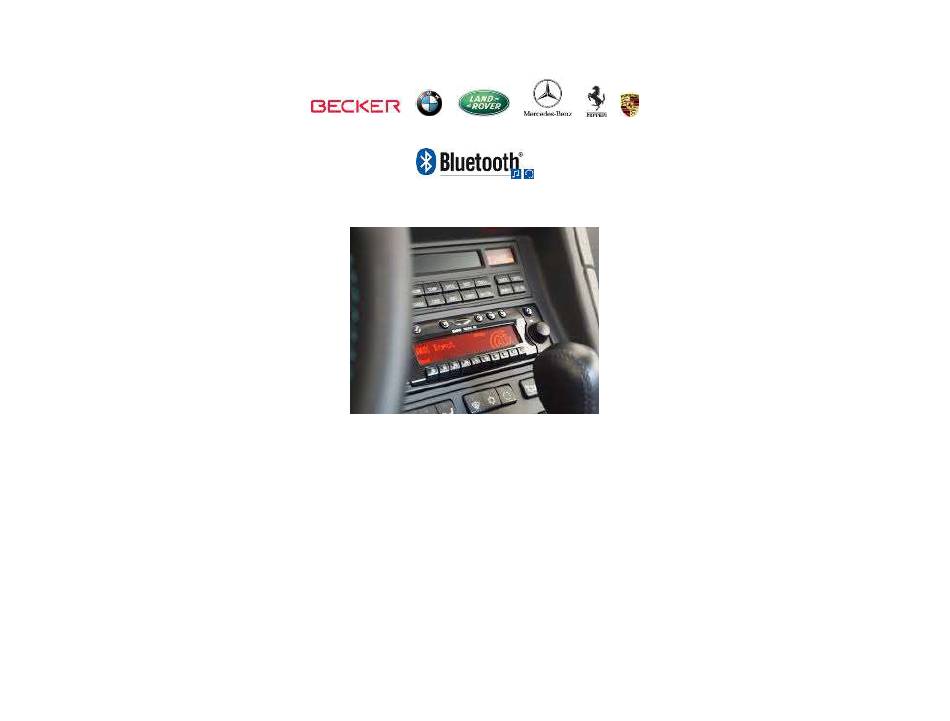

- Page 1 Courtesy of:DiscountCarStereo.com Radio shown for illustration purposes only BT45-BKR Quick Bluetooth Install Guide for Becker Aux Ready Radios Created December 22, 2016 Revised: October 1, 2019...
-
Page 2: Installation

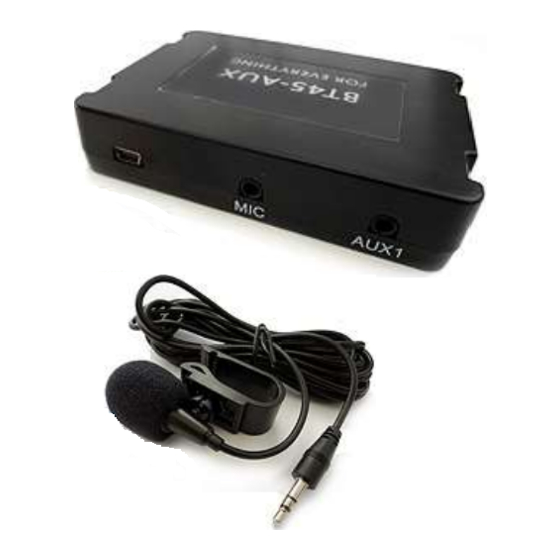

Introduction: Safety comes first when you’re on the road, so having an intuitive and easy to use Bluetooth kit is essential to reducing driver distraction. The new BT45-BKR kit is compatible with virtually all Bluetooth phones, and sounds great whether using it for mobile conversations or streaming music. - Page 3 Fig. 6 Fig. 4 Audio harness 4. Disconnect 8-pin plug from Radio chamber A(See Fig. 3) 5. Connect 8-pin “A” plug (from step 4) to matting 8-pin connector on module installation harness (See Fig. 5) Fig. 7 Module 8. Install microphone (See Fig. 8) to visor and route plug down the side pillar, under the dash and toward the radio cavity and connect to “MIC”...
-
Page 4: Initial Radio Setup
Avoid placing in direct sunlight. Turn radio "ON" 2. Press and hold the "TP" button for about 8 seconds until Becker 1 is displayed. 3. Turn the Tuning Knob until AUX OFF is displayed. - Page 5 Go to Tel and select Ph On option Turn radio ON. Alternate method: Press and hold the ☼ button for 8 seconds, until Becker 1 is displayed. 1. Press the “Sound” button for more than 2 seconds Turn the Tuning Knob until AUX OFF is displayed.
- Page 6 Becker 4775 (Land Rover) & Other Traffic Pro Cascade Pro (i.e. BE7941) To activate the External Device mode With the Radio "ON" press and hold the Tone button until the sub-menu Turn radio ON. comes up. Press the information button Press the soft-key labeled “Aux”...
- Page 7 Becker DTM /High speed (e.g. BE-7892, BE7910) Pairing Pairing varies among phones but the basic steps are the same. This process is done upon initial install and does not have to be repeated Enable Bluetooth function on your device (e.g. smartphone) and make Press the Sound button for more than 2 seconds sure it’s discoverable...
- Page 8 Wireless Remote Control To Enable/Disable Voice Prompt +Caller Announcement Twist open the remote control bottom cap (turn counterclockwise) Remove battery’s protective clear film so battery negative terminal comes in direct contact with circuit board. Stop all active calls and or media streaming Blue LED will now flash when tapping remote buttons Press button on remote control to enable feature: you will hear “Voice...
-
Page 9: Placing Calls
Placing Calls Bluetooth Comparison Chart: Use below chart to compare our Becker radio Bluetooth adapter features. This Tap the button on remote control to initiate voice should help determine which best meets your requirements. command or make call directly from phone... -
Page 10: Frequent Asked Questions
5. Can I connect a non-Bluetooth device (e.g. MP3 Player, Satellite Radio etc.)? this kit does not have an aux input. 6. Does the Becker radio mute when I receive or make a phone call? YES; Radio will mute when a call is initiated or received.
