Summary of Contents for Yard force LS G35W

  • Page 1 The expert for robots in your home With one click to the online shop myRobotcenter.eu myRobotcenter.co.uk myRobotcenter...

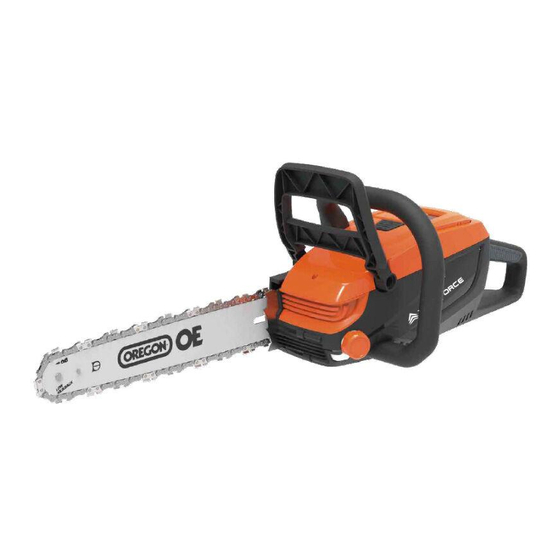

  • Page 2 LS G35W M0L-SP03-40 40V CORDLESS CHAIN SAW Original Instructions READ & UNDERSTAND INSTRUCTION MANUAL Save all warnings and instructions for future reference.
  • Page 3 Read this manual carefully prior to assembling and operating the product. It is dangerous to operate this product without being familiar with these instructions. Keep this manual in a safe place and have it ready for future reference.
  • Page 5: Table Of Contents

    INTENDED USE LS G35W Original Instruction This cordless chainsaw (hereinafter product or “power tool”) is designed for cutting wood only. The product is not designed for any other types of application (e. g. cutting of brickwork, plastic or food). CONTENT The product is to be used by adults.
  • Page 6: General Safety Warnings

    GENERAL SAFETY WARNINGS GENERAL SAFETY WARNINGS the plug in any way. Do not use any adapter plugs with alcohol or medication. A moment of inattention while earthed (grounded) power tools. Unmodified plugs and operating power tools may result in serious personal matching outlets will reduce risk of electric shock.
  • Page 7 GENERAL SAFETY WARNINGS GENERAL SAFETY WARNINGS Battery tools use and care Power tool use and care 1. Do not force the power tool. Use the correct power tool 1. Recharge only with the charger specified by the for your application. The correct power tool will do the manufacturer.
  • Page 8: Product Safety Warnings

    GENERAL SAFETY WARNINGS PRODUCT SAFETY WARNINGS Return to any authorised service centre. CHAIN SAW SAFETY WARNINGS 7. Store the appliance with battery pack fully charged at 1. Keep all parts of the body away from the saw chain when room temperature (around 20ºC). the chain saw is operating.
  • Page 9 PRODUCT SAFETY WARNINGS PRODUCT SAFETY WARNINGS or storing the chain saw always fit the guide bar cover. taking proper precautions as given below: Proper handling of the chain saw will reduce the likelihood of - Do not overreach and do not cut above shoulder height. accidental contact with the moving chain saw.
  • Page 10: Symbols

    SYMBOLS SYMBOLS Safety symbols Please read the instruction handbook before The purpose of safety symbols is to attract your operating this machine. attention to any possible dangers. The safety symbols and their explanations deserve your careful attention This symbol is used throughout the user guide and full understanding.
  • Page 11: Technical Data

    SYMBOLS TECHNICAL DATA Always use two hands when operating the Model LS G35W product. Nominal voltage of product with battery Chain speed 10 m/s Cutting length 356 mm Do not operate the saw using only one hand. Chain type 90PX052X...
  • Page 12: Description Of Product

    DESCRIPTION OF PRODUCT INSTALLATION Install the guide bar and saw chain Parts description (Fig. A) Front guard / chain brake 1. Position the chain saw power head on its side with the side cover facing upwards. Guide bar 2. Turn the side cover knob anti-clockwise to remove the side cover and then loosen the Saw chain chain tensioning knob as much as possible.
  • Page 13: Operation

    OPERATION OPERATION Filling bar and chain lubricant (Fig. I) To Start Make sure the Chain brake lever is in the OFF position - pulled back towards the handle. WARNING: Do not smoke or bring any fire or flame near the oil or the chain saw. Oil may spill (Fig.
  • Page 14 OPERATION OPERATION Instructions concerning the proper techniques for basic felling, Felling back cut limbing, and cross-cutting - Make the felling back cut at least 50 mm higher than the horizontal notching cut as Fig. 1 shown. Keep the felling back cut parallel to the horizontal notching cut. Make the felling back WARNING: Always be sure of your footing and hold the chain saw firmly with both hands cut so enough wood is left to act as a hinge.
  • Page 15: Maintenance And Storage

    OPERATION MAINTENANCE AND STORAGE - When the log is supported on both ends, as Fig. 5 shown, cut 1/3 the diameter from the top WARNING: When servicing, use only identical replacement parts. Use of any other parts may (overbuck). Then make the finished cut by underbucking the lower 2/3 to meet the first cut. create a hazard or cause product damage.
  • Page 16 MAINTENANCE AND STORAGE MAINTENANCE AND STORAGE CHAIN MAINTENANCE TRANSPORTING AND STORING WARNING: Always wear gloves when handling the saw chain; these components are sharp - Do not store or transport the chain saw when it is running. Always remove the battery pack and may contain burrs.
  • Page 17: Troubleshooting

    TROUBLESHOOTING CE DECLARATION To the provisions of Council Directives WARNING: Before performing any repair work, always ensure that the battery pack has been removed. SUMEC UK Unit A&B Escrick Business Park Escrick, York YO19 FD6/ United Kingdom WARNING: Always wear heavy duty gloves when adjusting or cleaning, especially when handling sharp objects.
  • Page 18 CE DECLARATION CE DECLARATION To the provisions of Council Directives To the provisions of Council Directives SUMEC France Sarl MEROTEC GmbH, Otto-Brenner-Straße 8, 47877 Willich/ Deutschland 59 bis Rue du Mûrier, 37540 Saint Cyr Sur Loire, France Declare that the product: Declare that the product: Machine Description: 40V Cordless Chain saw Machine Description: 40V Cordless Chain saw...
