Bubble Pro High-Efficiency O2 Diffuser
A
B
1. Position the Upper & Lower Support Arms as shown
in Figure 1 to the right.
2. Slide the Arms together so that the alignment slots
are fully engaged.
3. Set the assembled Arms onto the Base and align the
mounting holes.
4. Insert 8 Carriage Bolts from the bottom of the base
upward through the bent feet.
5. Install a Serrated-Flange Nut onto all 8 Bolts.
6. Tighten all hardware securely.
Assembly Instructions REV1

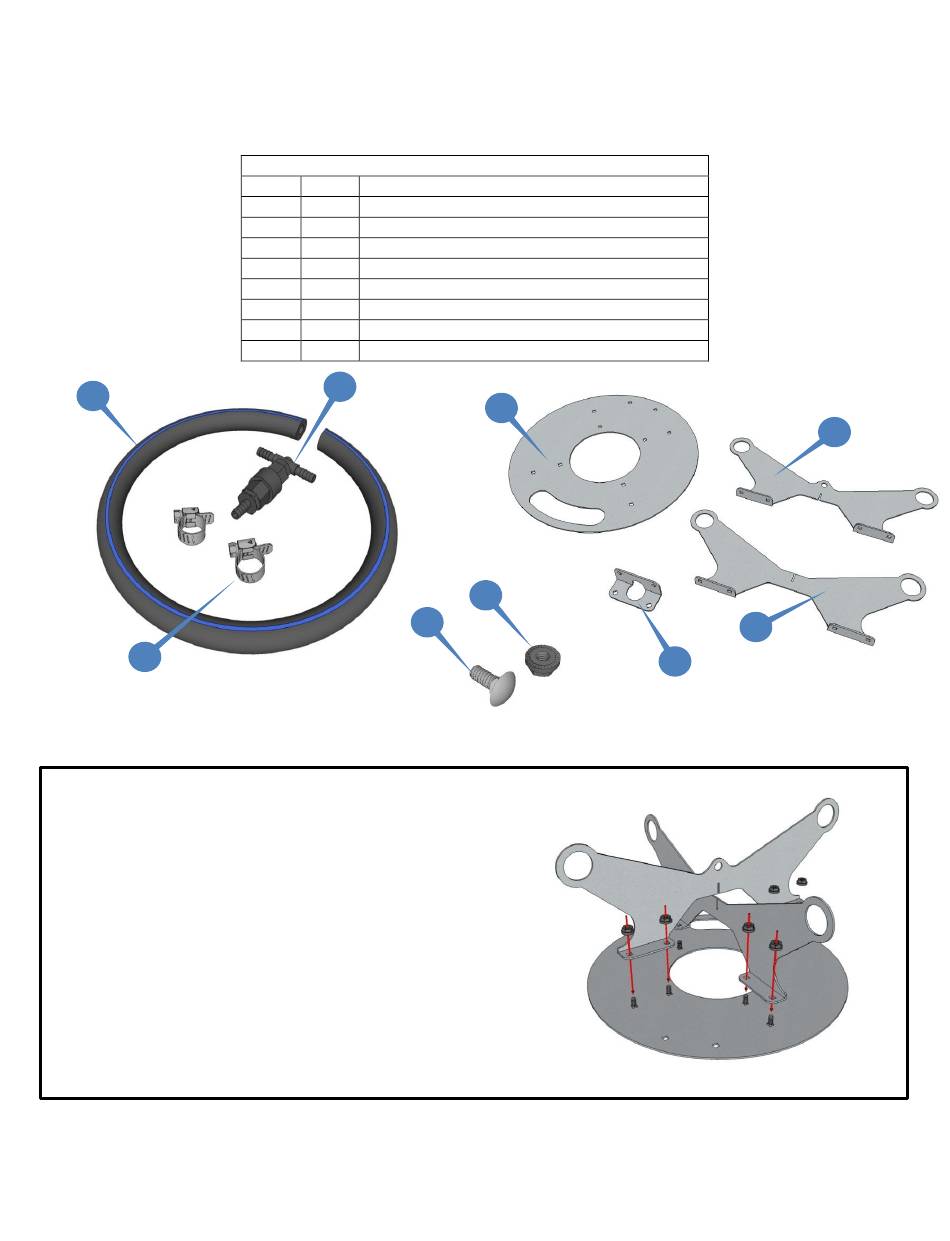

Package Contents
A
1
Aeration Bubble Tube
B
2
Hose Clamp
C
1
Check Valve Assembly
D
10
10-24 x ½" Carriage Bolt
E
10
10-24 Serrated Flange Nut
F
1
Base
G
1
Hose Strain Relief Clamp
H
1
Lower Support Arm
I
1
Upper Support Arm
C
D
