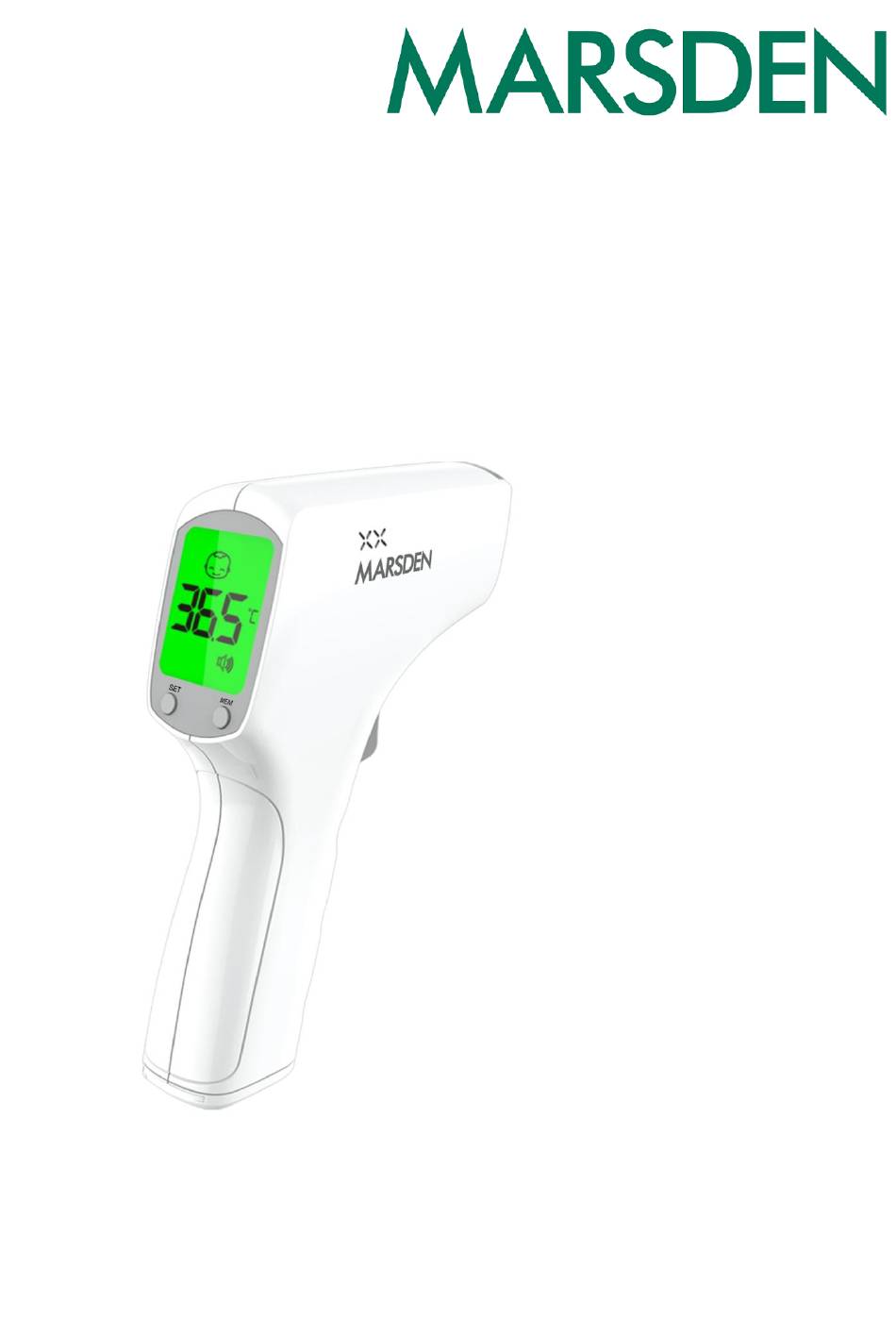

- Page 1 UFR103 Non Contact Infrared Thermometer User Manual Version 1.0 07/20...
-
Page 2: Table Of Contents
Contents Introduction Declaration of Conformity Specification Symbol Descriptions Important Safety Instructions Parts Identification Battery Installation Mode Setting Unit & Sound Setting About Normal Temperature & Fever Measurement Ranges Operation Error Messages Warranty EMC Declaration... -
Page 3: Introduction

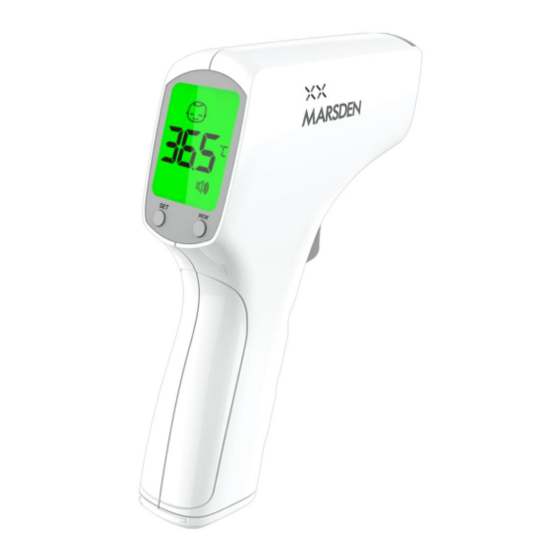

Thank you for purchasing this Marsden UFR103 Non Contact Infrared Thermometer. This thermometer uses advanced infrared (IR) technology to measure forehead or object temperature instantly and accurately. To ensure accurate use of the UFR103, please read this user manual before use and keep to hand for future reference. -
Page 4: Specification
Specification Measurement Range/Accuracy Body mode：32.0℃~43.0℃(89.6℉~109.4℉) Object mode：0.0℃~100.0℃(32.0℉~199.9℉) Ambient temperature：0.0℃～40.0℃(32.0℉~104.0℉) 1cm – 3cm Measuring Distance ℃/℉ Temperature Unit Display Resolution 0.1℃/0.1℉ Accuracy ±0.2°C/±0.4°F (within 35.0°C~42.0C/ 95.0°F~107.6°F) Memory Function 20 sets memory of measurement values Buzzer Function (1)Turn on the device：1Short beep (2) Measurement completed: 1 long beep (3) Fever>... -
Page 5: Important Safety Instructions
Important Safety Instructions Before using this device, please read the following instructions with care. WARNING: • This thermometer is not intended to substitute for a consultation with your physician. The forehead scan temperature serves as a reference only. • Basic safety precautions should always be observed, especially when the thermometer is used on or near children and disabled persons. -
Page 6: Parts Identification
Parts Identification Battery Installation 1. Remove the battery cover from the battery compartment. 2. Insert two 1.5V AAA batteries ensuring each one is facing the correct way. Positive (+) and Negative (-) are displayed on the back of battery cover. 3. -
Page 7: Mode Setting
Mode Setting 1. Switch the scale on using the ON/OFF button. 2. Default start-up setting for the device is Body Mode. Short press the SET button once to switch to Object Mode. 3. Press the SET button again to switch to Ambient Temperature Mode. 4. -
Page 8: About Normal Temperature & Fever
Before Use: About Normal Body Temperature & Fever Forehead and temple area temperature differs from internal temperature, which can be taken orally or rectally. Vasoconstriction, an effect which constricts the blood vessels and cools the skin, can occur during the early stages of a fever. -
Page 9: Operation
Operation: As a Body Thermometer 1. Press the ON/OFF button. 2. When the preparation screen displays (see below) the device is ready for temperature measurement. 3. Align the device with the centre of the forehead, ensuring the distance between the forehead and the device is 10mm. - Page 10 Operation: As an Ambient Thermometer 1. Press the ON/OFF button. 2. Ensure the device is in Ambient Temperature Mode (see Page 7) 3. Press the ON/OFF button to take temperature. The temperature will appear on the display, accompanied by one beep. Memory Recall of Measurements 1.
-
Page 11: Error Messages
Error Messages Symbol Explanation In Body Mode, measured temperature is above the measuring range of 43 ℃/109.4 ℉. In Body Mode, measured temperature is below the measuring range of 32℃/89.6 ℉ In Object Mode, measured temperature is above the measuring range 100.0℃/199.9 or environmental temperature is above ℉,... -
Page 12: Warranty
Warranty • The device is guaranteed to be free of defects in workmanship and materials under normal use for a period of 1 Year from the date of purchase. • For repair under this warranty, our authorised service agent must be advised of the fault within the period of the warranty. -
Page 13: Emc Declaration
EMC Declaration Table 1 Guidance and manufacturer's declaration-electromagnetic emissions The Infrared forehead thermometer is intended for use in the electromagnetic environment specified below. The customer or the user of the infrared forehead thermometer should assure that it is used in such an environment Emissions Compliance... - Page 14 at least 30% Electrical fast Power supply Power supply Mains power quality transient/burs lines:±2 kV Lines:±2 kV Should be that of a typical t IEC 61000- Input/output Input/output commercial hospital Lines:±1 kV Lines:±1 kV environment. Surge line(s) to line(s):±1 kV line(s) to Mains power quality IEC 61000-4-...
- Page 15 Conduced 150KHz to 150KHz to Portable mobile communications IEC61000-4-6 80MHz: 80MHz: equipment should be 6Vrms 3Vrms used no closer to any part of the 6Vrms(in Infrared forehead thermometer, amateur including cables, than the radio amateur recommended separation distance bands) radio calculated from the equation 80% Arm at bands)
- Page 16 operation. If abnormal performance is observed, additional measures may be necessary, such as re- orienting or relocating the Infrared forehead thermometer. Over the frequency range 150 kHz to 80 MHz, field strengths should be less than 3 V/m. Table 4 Recommended separation distances between portable and mobile RF communications equipment and The Infrared forehead thermometer is intended for use in an electromagnetic environment in which radiated RF disturbances are controlled.
- Page 17 specifications 380- TETRA Pulse modu ENCLOSURE lation PORT IMMUNITY to 18 Hz RF wireless 380- GMRS FM c) communication 460, ±5 FRS 460 equipment) deviat 1 kHz sine 704- Pulse Band modu 13,17 lation 800- Pulse 800/900, modu TETRA lation 800, IDEN 18 Hz...
- Page 18 Band 7 5240 5100- WLAN Pulse 5800 802.11 modu 5240 lation 5785 NOTE If necessary to achieve the IMMUNITY TEST LEVEL, the distance between the transmitting antenna and the ME EQUIPMENT or ME SYSTEM may be reduced to 1 m. The 1 m test distance is permitted by IEC 6100-4-3.
