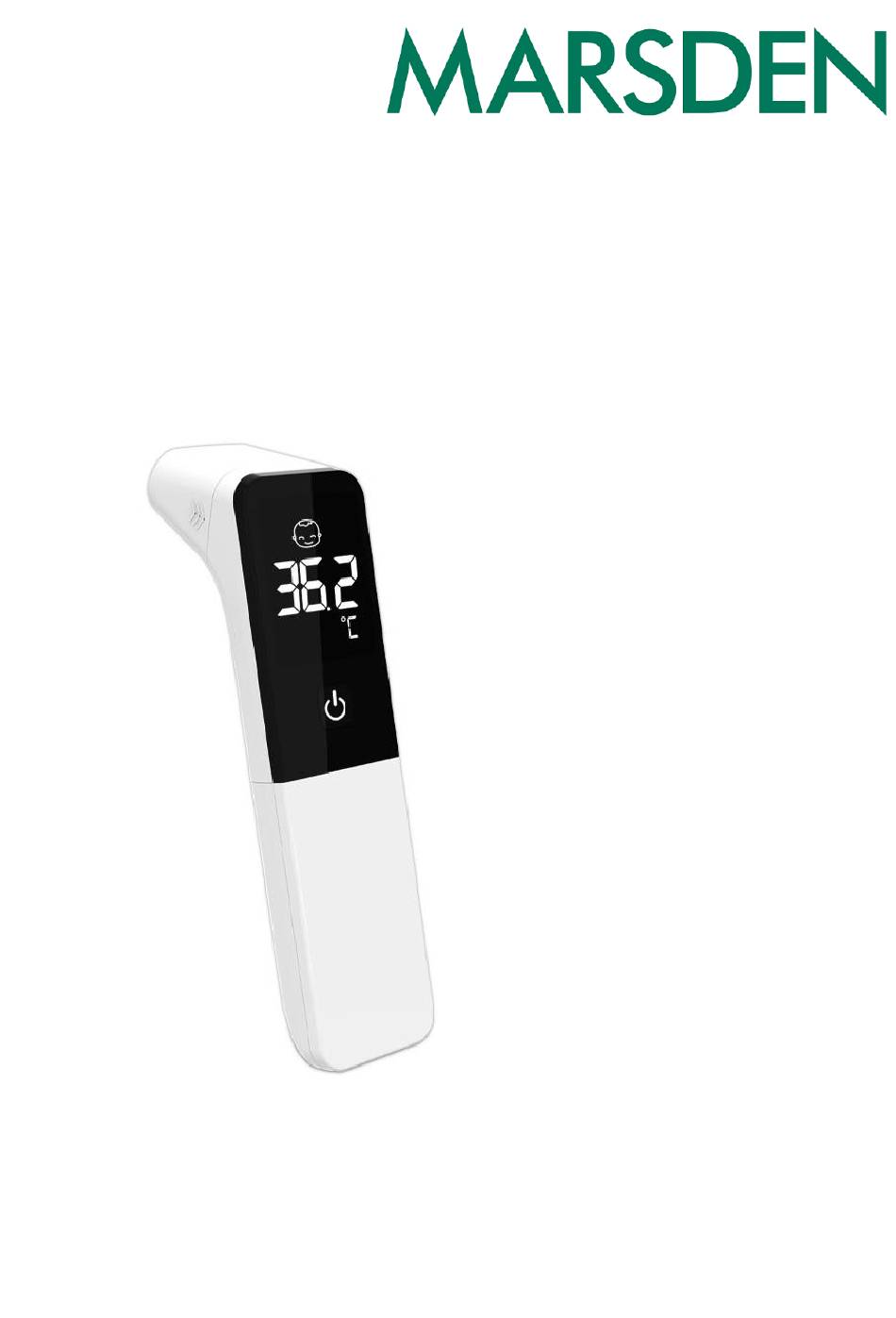

- Page 1 UFR102 (T-110) Infrared Ear & Forehead Thermometer User Manual Version 1.0 07/20...
-
Page 2: Table Of Contents
Contents Introduction Declaration of Conformity Important Safety Information Specification Meaning of Symbols Battery Installation Mode Setting About Normal Temperature & Fever Measurement Ranges Operation Error Messages Warranty Safety Classification of ME Equipment EMC Declaration... -
Page 3: Introduction

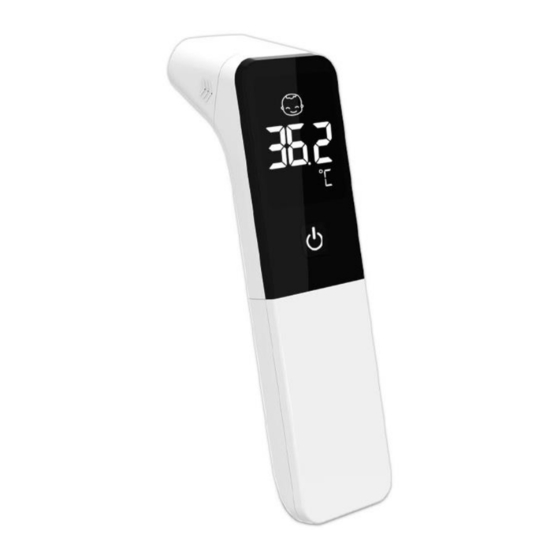

Thank you for purchasing this Marsden UFR102 Infrared Ear & Forehead Thermometer. This thermometer can be used by medical professionals, at home or in workplaces. To ensure accurate use of this thermometer, please read this user manual before use and keep to hand for future reference. -
Page 4: Important Safety Information
Important Safety Information Before using this device, please read the following instructions with care. WARNING: • This thermometer is not intended to substitute for a consultation with your physician. The forehead scan temperature serves as a reference only. • Basic safety precautions should always be observed, especially when the thermometer is used on or near children and disabled persons. -
Page 5: Specification
Specification Normal operating conditions Body mode&ear mode 10.0°C~40.0°C/50.0°F~104.0°F; Object mode 5°C ~40.0°C/41.0°F~104.0°F; Relative humidity range : <85%RH; Atmospheric pressure range : 70kPa ~ 106kPa. Transport and storage Temperature: -20°C~+50°C/-4.0°F~+122.0°F; conditions Humidity: 15%~95%RH Handle with care and avoid moisture and water during transportation. Temperature Unit ℃/℉... -
Page 6: Battery Installation
Parts Identification 1. Display screen 2. On/OFF and measurement button 3. Sensor head 4. Protective cover 5. Mode button °C/°F button 7. Battery cover Battery Installation 1. Remove the battery cover from the battery compartment. 2. Insert 2x AAA batteries into the compartment and ensure each battery is placed in the correct direction. -
Page 7: Mode Setting
Operation: Mode Settings Mode Action Mode 1) Forehead temperature mode Default mode, whilst the head cover is fitted, is forehead temperature mode. The forehead icon will show on the display as per the illustration below. 2) Ear temperature mode With the device switched on, remove the head cover and the device will automatically switch to ear temperature mode. -
Page 8: About Normal Temperature & Fever
About Normal Body Temperature and Fever Forehead and temple area temperature differs from internal temperature, which can be taken orally or rectally. Vasoconstriction, an effect which constricts the blood vessels and cools the skin, can occur during the early stages of a fever. In this case, the temperature measured by the Infrared thermometer may be unusually low. -
Page 9: Operation
Operation: As a Body Thermometer Press the ON/OFF button to start the device. The measurement preparation screen will be displayed after one second, and the °C icon will appear. Align the device with the centre of the forehead, ensuring the distance between the forehead and the device is 10mm. Press the ON/OFF button to measure, and the measurement result will appear on the display within one second. - Page 10 Operation: As an Object Thermometer Press the ON/OFF button to start the device. The measurement preparation screen will be displayed after one second, and the °C icon will appear. Press the Mode button to switch to object mode, and ensure the distance between the infrared thermometer and the object is 10mm. Press the ON/OFF button to measure, and the result will display on the screen when the measurement is completed.
-
Page 11: Error Messages
Error Messages Symbol Explanation In Body Mode, measured temperature is above the measuring range of 43 ℃/109.4 ℉. In Body Mode, measured temperature is below the measuring range of 32℃/89.6 ℉ In Ear temperature mode, measured temperature is above the measuring range of 43.0°C/109.4°F. -
Page 12: Warranty
Warranty • The device is guaranteed to be free of defects in workmanship and materials under normal use for a period of 1 Year from the date of purchase. • For repair under this warranty, our authorised service agent must be advised of the fault within the period of the warranty. -
Page 13: Safety Classification Of Me Equipment
EMC Declaration IEC 60601-1-2：2014 ME EQUIPMENT and ME SYSTEMS identification, marking and documents for Class B product The ME EQUIPMENT or ME SYSTEM is suitable for home healthcare environments and so on. Warning：Do not use near active HF surgical equipment and the RF shielded room of an ME system for magnetic resonance imaging, where the intensity of EM disturbances is high. - Page 14 Voltage fluctuations/ flicker emissions IEC 61000-3-3 Table 2 Guidance and manufacturer’s declaration - electromagnetic Immunity Immunity Test IEC 60601-1-2 Compliance level Test level Electrostatic discharge (ESD) ±8 kV contact ±8 kV contact IEC 61000-4-2 ±2 kV, ±4 kV, ±8 kV, ±15 kV ±2 kV, ±4 kV, ±8 kV, ±15 kV air Electrical fast transient/burst Power supply lines：±2 kV...
- Page 15 Table 3 Guidance and manufacturer’s declaration - electromagnetic Immunity Radiated RF Test Band Service Modulation Modulation Distance IMMU IEC61000-4-3 Frequency (MHz) NITY (Test specifications for (MHz) TEST ENCLOSURE PORT LEVE IMMUNITY to RF wireless communications (V/m) 380 – equipment) TETRA 400 Pulse modulation 18 Hz...
- Page 16 +44 (0) 1709 364296 sales@marsdengroup.co.uk Distribution: Unit 7, Centurion Business Park, Coggin Mill Way, Rotherham, S60 1FB Head Office: Unit 1, Genesis Business Park, Sheffield Road, Rotherham S60 1DX www.marsden-weighing.co.uk...
