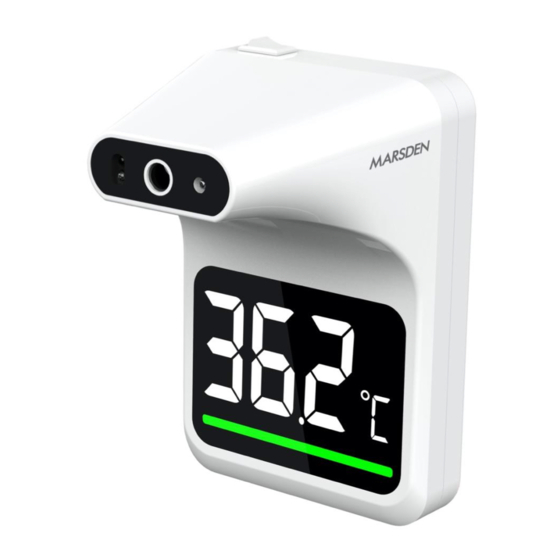

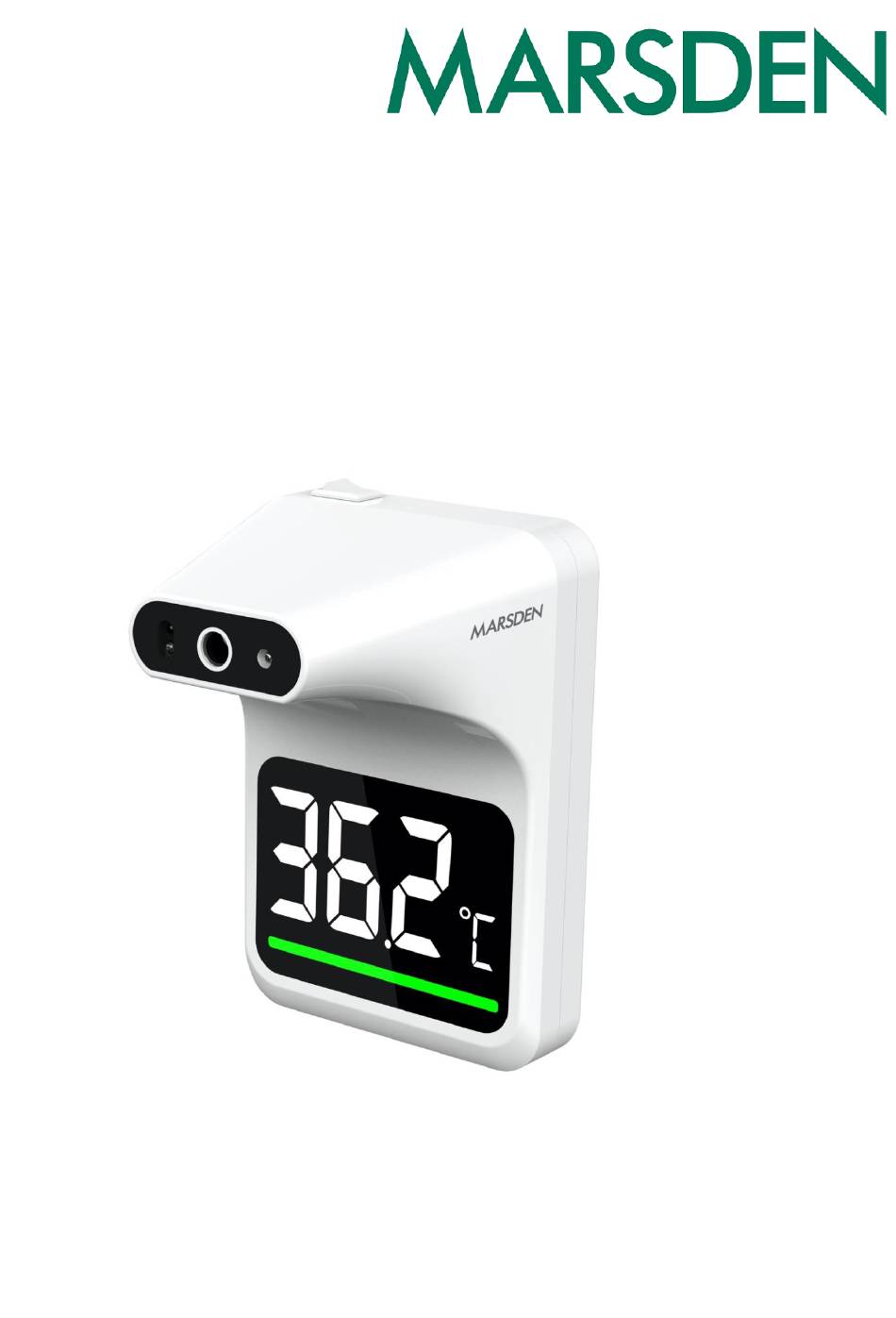

- Page 1 UFR118 (T-210) Infrared Thermometer User Manual Version 1.7 10/20...
-
Page 2: Table Of Contents
Contents Introduction Declaration of Conformity Specification Symbol Descriptions Important Safety Instructions Parts Identification Battery Installation About Normal Temperature & Fever Unit Setting Operation Error Messages Warranty EMC Declaraton... -
Page 3: Introduction
Thank you for purchasing this Marsden UFR118 Infrared Thermometer. This thermometer is designed for screening multiple individuals for high temperature, and can be used with individuals of all ages. To ensure accurate use of the UFR118, please read this user manual before use and keep for future reference. -
Page 4: Specification
Specification Measurement Range 32ºC - 43ºC ± 0.2ºC Accuracy ± 0.2ºC / ± 0.2ºF 1cm – 10cm Measuring Distance Display Response Time 1 second Measuring localisation Forehead Installation Method Nail hook, double sided sticking tape, bracket for stand Green: Temperature <37.5ºC (99ºF) Red: Temperature ≥37.5ºC LED Colour Indicator (99ºF) Power... -
Page 5: Important Safety Instructions
Important Safety Instructions Before using this device, please read the following instructions with care. WARNING: • This thermometer is not intended to substitute for a consultation with your physician. The forehead scan temperature serves as a reference only. • Basic safety precautions should always be observed, especially when the thermometer is used on or near children and disabled persons. -
Page 6: Parts Identification
Parts Identification... -
Page 7: Battery Installation
Type C USB lead. The rechargeable battery should only be used as back-up. Battery Type The UFR118 uses one 3.7V 18650 lithium-ion rechargeable battery. An 18650 battery has a length of 65mm and a diameter of 18mm. WARNING: Dispose of batteries in accordance with local laws. -
Page 8: About Normal Temperature & Fever
About Normal Body Temperature and Fever Forehead and temple area temperature differs from internal temperature, which can be taken orally or rectally. Vasoconstriction, an effect which constricts the blood vessels and cools the skin, can occur during the early stages of a fever. In this case, the temperature measured by the Infrared thermometer may be unusually low. -
Page 9: Unit Setting
Unit Setting There is a small hole on the bottom of the device. Push a 2mm diameter screwdriver into the ℃ and ℉. hole to switch between Operation Please note: The device must be placed in the operating environment 30 minutes before use. - Page 10 Beep Alarm 1. 1 short beep when power is on and device is ready to begin measurement. 2. 1 long beep with green LED when measurement reading is below 37.5℃/99.5℉. 3. 10 short beeps with red LED when measurement reading is 37.5℃/99.5℉...
-
Page 11: Error Messages
Error Messages Symbol Explanation In Body Mode, the measured temperature is above the measuring range of 43℃/109.4℉. In Body Mode, measured temperature is below the measuring range of 32℃/89.6℉. Low battery. Please connect the USB charger and recharge the battery. Thermometer has failed or is affected by electromagnetic field. -
Page 12: Emc Declaraton
EMC Declaration IEC 60601-1-2：2014 ME EQUIPMENT and ME SYSTEMS identification, marking and documents for Class B product Instructions for Use The ME EQUIPMENT or ME SYSTEM is suitable for home healthcare environments. Warning：Do not use near active HF surgical equipment and the RF shielded room of an ME system for magnetic resonance imaging, where the intensity of EM disturbances is high. - Page 13 Technical description 1. All necessary instructions for maintaining BASIC SAFETY and ESSENTIAL PERFORMANCE with regard to electromagnetic disturbances for the expected service life. 2. Guidance and manufacturer’s declaration - electromagnetic emissions and immunity. Table 1 Guidance and manufacturer’s declaration - electromagnetic emissions Emissions test Compliance RF emissions...
- Page 14 Table 2 Guidance and manufacturer’s declaration - electromagnetic Immunity Immunity Test IEC 60601-1-2 Compliance level Test level Electrostatic discharge (ESD) ±8 kV contact ±8 kV contact IEC 61000-4-2 ±2 kV, ±4 kV, ±8 kV, ±15 kV ±2 kV, ±4 kV, ±8 kV, ±15 kV air Electrical fast transient/burst Power supply lines: ±2 kV 100 kHz Power supply lines：±2 kV...
- Page 15 Table 3 Guidance and manufacturer’s declaration - electromagnetic Immunity Test Band Service Modulation Modulation Distance IMMUN Radiated Frequency (MHz) (MHz) TEST IEC61000- LEVEL (V/m) (Test 380 –390 TETRA 400 Pulse specificatio modulation ns for 18 Hz ENCLOSU RE PORT 430 –470 GMRS 460, IMMUNITY FRS 460...
- Page 16 +44 (0) 1709 364296 sales@marsdengroup.co.uk Distribution: Unit 7, Centurion Business Park, Coggin Mill Way, Rotherham, S60 1FB Head Office: Unit 1, Genesis Business Park, Sheffield Road, Rotherham S60 1DX www.marsden-weighing.co.uk...
