Summary of Contents for MicroNet T18 Pro

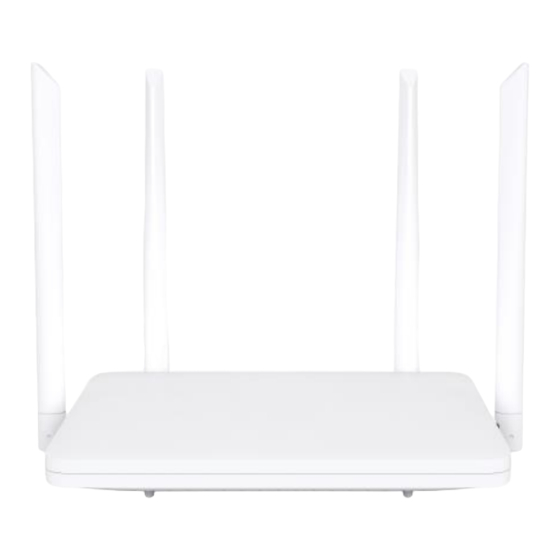

- Page 1 User Guide User Guide AC1200 Gigabit Dual Band Wi-Fi Router T18 Pro...
-
Page 2: Table Of Contents
User Guide Contents About this Guide Chapter 1. Get to Know About Your Router Chapter 2. Connect to the Internet Chapter 3. Revise Wi-Fi Password Chapter 4. Configure EasyMesh Chapter 5. Other Information... -
Page 3: About This Guide
User Guide About this Guide This user guide shows you the way to configure the router appropriate to your needs. Chapter 1. Get to Know About Your Router This chapter introduces the main features and shows its appearance. It chapter contains the following sections: Main Features Appearance 1.1. -
Page 4: Chapter 2. Connect To The Internet
User Guide Chapter 2. Connect to the Internet This chapter introduces how the router connects to the Internet. It chapter contains the following sections: Schematic Diagram of Router Connection Configure the Internet 2.1 Schematic Diagram of Router Connection... - Page 5 User Guide 2.2 Configure the Internet 2.2.1 Configure the Router in Gateway Mode 2.2.1.1 Dial-up for Internet Access After the connection is completed, use a mobile phone or computer to search for the Wi-Fi name "2.4G SSID or 5G SSID" on the label on the back of the device and enter the corresponding password to connect to Wi-Fi.
- Page 6 User Guide In the router management interface, click "Install-Install Settings" and select "PPPoE". Fill in the User Name and Password, click "Save". Wait for the device to be saved and Internet access is available. The Wi-Fi name is the default name (in the label at the bottom of the device).
- Page 7 User Guide 2.2.1.3 Dynamic IP for Internet Access The router is defaulted to dynamic IP (DHCP Client) for Internet access. The Wi-Fi name is the default name (in the label at the bottom of the device). 2.2.2 Configure the Router in Bridge Mode After the connection is completed, use a mobile phone or computer to search for the Wi-Fi name "2.4G SSID or 5G SSID"...
-
Page 8: Chapter 3. Revise Wi-Fi Password
User Guide In the router management interface, select "Network—5G Configuration Settings—Network Scan", click Scan, select the uplink signal, fill in the upper-level Wi-Fi key, and click Connect. Chapter 3. Revise Wi-Fi Password This chapter introduces how to revise Wi-Fi Password. Revise Wi-Fi Password In the router management interface of 192.168.10.1, click the "Install-Install Settings", you can customize the 2.4G and 5G "wireless name and wireless password". -
Page 9: Chapter 4. Configure Easymesh
User Guide Chapter 4. Configure EasyMesh This chapter introduces how to configure EasyMesh. It chapter contains the following sections: The Steps to Configure EasyMesh How to Check the Device Information in Topology 4.1 The Steps to Configure EasyMesh Step 1: set up the Controller In the router management interface connected to the upper-level gateway (optical modem), select "Network—EasyMesh—General", in the general settings page: Fill in “Mesh Controller”... - Page 10 User Guide Step 2: set up the Agent The Agent needs in the Bridge mode as in in 2.2.2. In the router management interface of other routers (except the router set in the first step), select "Network—EasyMesh—General", in the general setting page: Fill in "Mesh Agent”...
- Page 11 User Guide EasyMesh networking of three or more devices, perform step 2 on the third and above equipment. 4.2 How to Check the Device Information in Topology In the router management interface of the Controller, select "Network-EasyMesh-Topology",...
-
Page 12: Chapter 5. Other Information
User Guide you can see the device name and IP address. After the EasyMesh of the router is closed, the device will depart from the original EasyMesh network. When it is turned on again, you need to rejoin the network, and perform step 2 and step 3. - Page 13 User Guide Operating temperature：0-40°C 5.2 Manufacturer Information Manufacturer: Shenzhen Micronet Force Information Technology Co., Ltd. Address: Room 808, Block B, Fu'an Science and Technology Building, No. 013, Gao Xin Nan Yi, Nanshan District, Shenzhen, Guangdong, China 5.3 Precautions ① After completing EasyMesh networking, the master device will synchronize its 2.4GHz and 5GHz SSID, password, and channel with the slave device once.
- Page 14 User Guide equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: ‐‐Reorient or relocate the receiving antenna.
