Summary of Contents for Oliver 1208
- Page 1 Walker, Michigan, U.S.A. 49534-7564 USER’S OPERATING AND INSTRUCTION MANUAL MODEL 1208, 1208-N, & 1208-NLG HEAT SEALER MFG DATE: _________________________ MODEL NUMBER: ____________________ SERIAL NUMBER: ____________________ 1208S20000CV2...
- Page 2 INDEX --------------------------------------------- Description and Specifications pg. 1-2 --------------------------------- Description and Specifications Continued- pg. 1-3 ---------------------------------------------------------------------- Safety pg. 1-4 ----------------------------------------- Machine Components and Set Up pg. 1-5 ---------------------------------------------------------- Set up Continued pg. 1-6 ----------------------------------------------------- Operating Procedures pg. 1-7 --------------------------------------------------- Adjustment and Quality pg.
-
Page 3: Description/Specifications

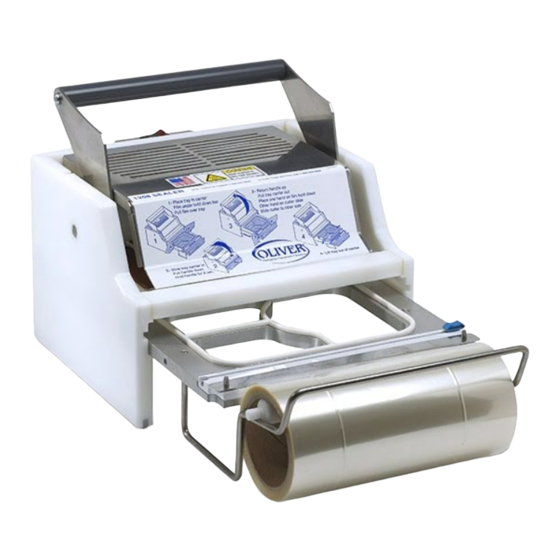

DESCRIPTION/SPECIFICATIONS Description The Oliver Models 1208, 1208-N, and 1208-NLG Heat Sealers are designed and manufactured to ensure a user friendly operation of producing film lidded trays with a cost effective approach. The manually operated machine operates with a 115 or 230 V.A.C. outlet. The machine was designed to be a compact to limit the amount of table space needed to operate. - Page 4 DESCRIPTION/SPECIFICATIONS CONTINUED Specifications Space Requirements, (Shown with Standard Options): Model 1208-NLG (All Dimensions are Approximate) Shipping Weight – 24 lbs. (approximate) Net Weight – 20 lbs. (approximate) (REV. 12/18/06) 1208S20003...
-
Page 5: General Safety Instructions
GENERAL SAFETY INSTRUCTIONS WARNING IT IS ESSENTIAL THAT ALL OPERATORS AND MAINTENANCE PERSONNEL OBSERVE THE FOLLOWING SAFETY PRECAUTIONS. IMPROPER INSTALLATION, MAINTENANCE, OR OPERATION OF THIS EQUIPMENT COULD CAUSE SERIOUS INJURY. 1. Read this manual before attempting to operate your heat sealer. Never allow an untrained person to operate or service this unit. - Page 6 SET UP 1. Carefully remove the Model 1208 from the box. Check to make sure the order is complete, and it has not been damaged during shipment. 2. Place the unit in a suitable location which provides an adequate working space.
- Page 7 SET UP CONTINUED NOTE: FILM SUPPLIED BY OLIVER PRODUCTS COMPANY IS WOUND WITH THE ADHEASIVE SIDE IN. FEED FILM FROM THE TOP OF THE ROLL AS SHOWN IN DETAIL “A”. 1208S20003...
-
Page 8: Operating Procedures
OPERATING PROCEDURES 1. Plug the power cord into a properly grounded outlet. Avoid the use of extension cords. There is a switch on the cover with a light which will illuminate when on. NOTE: It should take approximately 15 minutes for the machine to warm up to operating temperature. - Page 9 ADJUSTMENT AND QUALITY Your OLIVER Model 1208 was tested at the factory using Oliver trays and film. NOTE · THE TEMPERATURE CANNOT BE ADJUSTED BY THE OPERTATOR · THE PRESSURE CANNOT BE ADJUSTED BY THE OPERATOR. The heater platen temperature is factory set at approximately 300 degrees Fahrenheit.
-
Page 10: Technical Specifications
TECHNICAL SPECIFICATIONS · Temperature Range: Factory preset to approx. 300° F. · Weight: 18 lbs (1208/1208-N) and 20 lbs (1208-NLG) · Electrical: 120/230 volts AC (USA) 2/4 Amps ,50-60 Hz · Finish: White Pebble / Stainless steel · Max roll diameter: 2”... -
Page 11: Cleaning And Maintenance
It is important that the surface of the heater platen is kept clean and smooth. Regularly clean the OLIVER Model 1208 with a mild cleaner and a damp cloth. If food product comes in contact with the surface of the platen, it tends to burn on and become hard. -
Page 12: Cleaning Procedures
CLEANING PROCEDURES 1. Remove tray carrier by pushing the carrier in, lifting the tray carrier straight up, and then pull out. 2. Wipe down tray carrier and gaskets with a standard cleaning solution. 3. Tip the machine up on its side, and then wipe off the heated platen. 4. - Page 13 REPLACING AND CHECKING GASKETS · If there are any gouges, cuts or gaps in the gasket, the gasket will have to be replaced. · Be sure to replace all the gaskets not just the piece that is damaged. · When reinstalling gaskets, the gasket must be seated all the way down in the groove.
-
Page 14: Troubleshooting
TROUBLE SHOOTING SYMPTOM CORRECTIVE ACTION Poor seal quality Verify that the platen is heated and is at the correct temperature (approximately 300° F) Check to see if the platen is dirty Check rubber gasket on tray holder for damaged or missing pieces Platen does not heat up Verify that the power cord is plugged into outlet... - Page 15 ELECTRICAL 1-60-120 ELECTRICS 1-60-230 1-14 1208S20003...
- Page 16 MODEL 1208 & 1208-N HEAT SEALER 1-15 1208S20003...
-
Page 17: Part Description
MODEL 1208 & 1208-N HEAT SEALER PARTS LISTS (PART NUMBERS SHOWN IN BOLD ARE FOR 1208-NLG) ITEM NO PART DESCRIPTION PART NUMBER Frame Assembly 1208-0001 1208-0001-002 Frame Assembly (LG) Spacer-Front 1208-0001-0043 1208-0001-0053 Spacer-Front (LG) Cushion-Gray Silicone Extruded 6516-0020 Cover 1208-0009... - Page 18 PARTS LIST CONTINUED Screw-1/4” DIa. x 3/4" Shoulder 4560-0908-1201 Cover-Electrical 1208-0021-002 1208-0021-003 Cover-Electrical (LG) Bushing-Strain Relief 5765-1076 Switch-Rocker on/off 5757-3313 Tray Carrier Components See Pg. 1-16 FOR SERVICE PARTS CALL OLIVER PRODUCTS @ 800-253-3893 1-17 1208S20003...
- Page 19 MODEL 1208 & 1208-N TRAY CARRIER MODEL 1208 & 1208-N TRAY CARRIER PARTS LISTS ITEM NO PART DESCRIPTION PART NUMBER 201* Carrier-Tray 3 Compartment 1208-0013-500 202** Cushion-White Silicone Extruded 6516-0028 Rod-Film Holder 1208-0014 1208-0014-001 Rod-Film Holder (LG) Screw-10-24 x 1” STST Set 5843-2024 Pin-1/4”...
- Page 20 ** Cushions differ from tray carrier to tray carrier. The cushion that is used is determined by the engineer during the design process. FOR SERVICE PARTS CALL OLIVER PRODUCTS @ 800-253-3893 REV 12-01-2020 1-19...
-
Page 21: Warranty
Oliver Packaging & Equipment Company warrants that if any part of the equipment (other than a part not manufactured by Oliver Packaging & Equipment) proves to be defective (as defined below) within one year after shipment, and if Buyer returns the defective part to Oliver Packaging &... -
Page 22: Returned Parts Policy
This policy applies to all parts returned to the factory whether for warranted credit, replacement, repair or re-stocking. Oliver Packaging & Equipment Company requires that the customer obtain a Return Material Authorization (RMA) number before returning any part. This number should appear on the shipping label and inside the shipping carton as well.
