CytoTherm CT-DR Owner's Manual

Dry plasma thawing with rocking action
Hide thumbs
Table of Contents

Advertisement

Quick Links

Tel 800 747-9699 or 609 396-1456 Fax 609 396-9395
Email serve@cytotherm.com Web www.cytotherm.com
CytoTherm-DR
Plasma Thawing
Dry
Rocking Action
with
CT-DR
Model
Rack with
External Ribs
Version 4.09 or
higher
Owner's
Manual
W A R R A N T Y
CytoTherm
Each
product is manufactured under rigid quality control standards. This unit is fully
warranted for a period of two years from the date of purchase. Call 609 396-1456 or 800 747-9699 for
assistance. If necessary send unit to:
CytoTherm
110 Sewell Ave. Trenton, NJ USA Tel 609 396-1456 Fax 609 396-9395
Do not forget to mail in your warranty card.
Please record the following:

TABLE OF CONTENTS

1
Specifications
2
2
3
4
4
5
SPECIFICATIONS:
o
1.0
C over thawing temperature. 45
Power 770 Watt, Available in 120 Volt or 230 Volts, 50 or 60 Hz. (must be grounded).
CytoTherm
110 Sewell Ave.
Serial No. ___________ Date of Purchase _________
Thawing temperature adjustable 25
o
C safety thermostat. Accuracy 0.1
Trenton NJ 08610 USA
Draw\Instructions CT Products\CtdrInsR.doc 29 Jul 16
6
7
8
8
9
10
Wiring Diagram
o
C to 40
o
C. Easy to do, digital temperature calibration.
o
o
C. Preset to 37.0
C. Overtemp alarm

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CT-DR and is the answer not in the manual?

Questions and answers

Related Manuals for CytoTherm CT-DR

Summary of Contents for CytoTherm CT-DR

  • Page 1: Table Of Contents

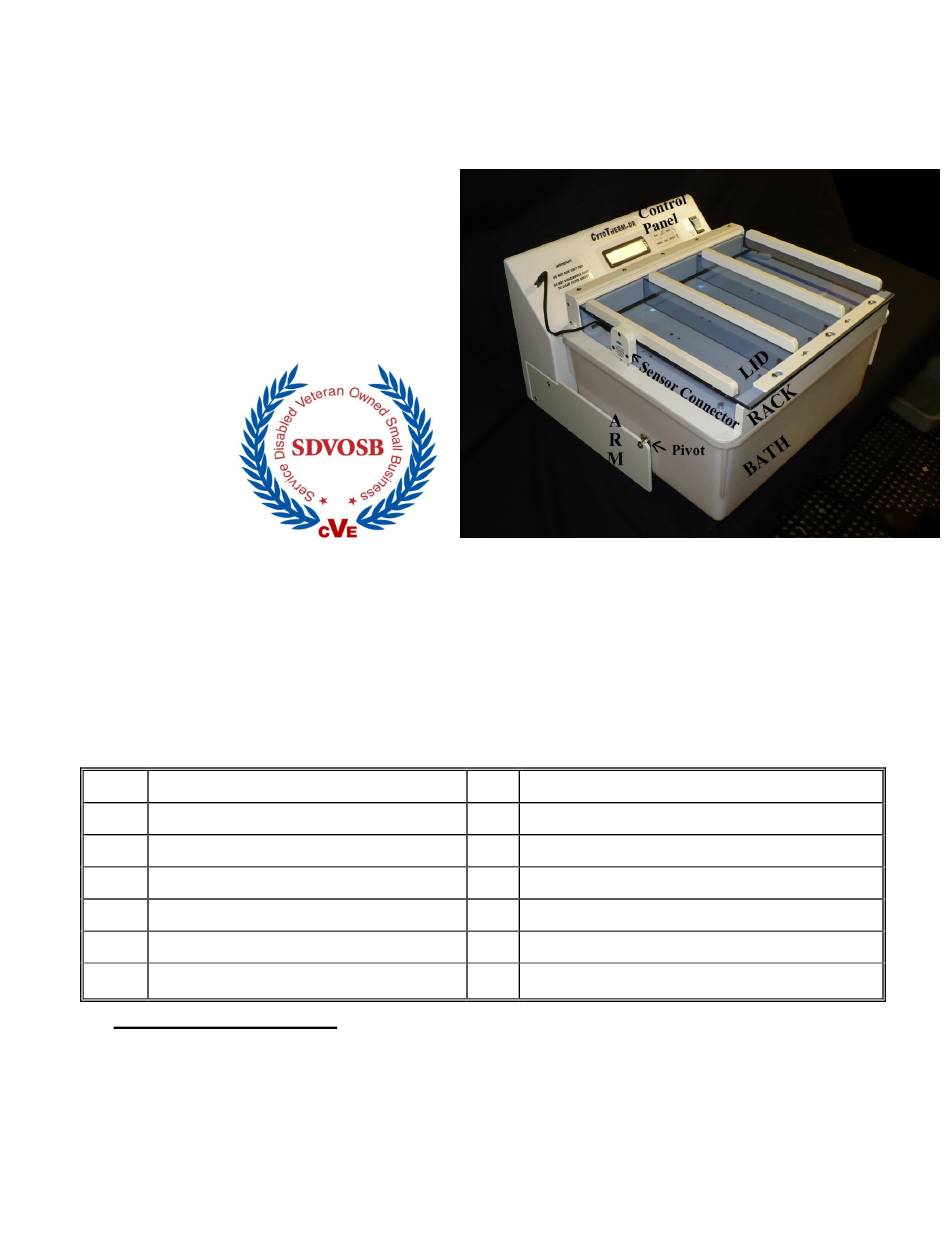

    CytoTherm 110 Sewell Ave. Trenton NJ 08610 USA Tel 800 747-9699 or 609 396-1456 Fax 609 396-9395 Email serve@cytotherm.com Web www.cytotherm.com CytoTherm-DR Plasma Thawing Rocking Action with CT-DR Model Rack with External Ribs Version 4.09 or higher Owner’s Manual W A R R A N T Y...

  • Page 2: Description

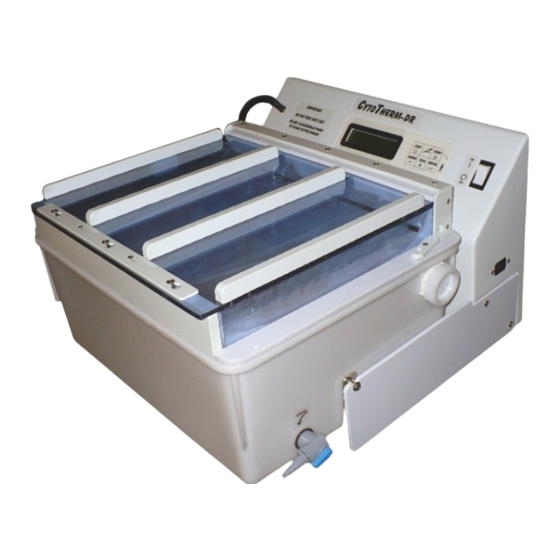

    DESCRIPTION The CytoTherm DR (Model CT-DR) is a laboratory instrument for thawing plasma while keeping the plasma bag dry. Tempered water is recirculated through a bladder. The plasma bag to be thawed lays on one part of the bladder, while the rest of the bladder is folded over to cover the plasma bag.

  • Page 3: Operation

    Turn the power switch ON. The heater will heat to maintain 37 C. The pump will pulse to recirculate the water and the display will indicate the temperature. INSTALLATION CHECK LIST. 1. Make sure that the electrical outlet is properly wired. It must be grounded and the polarity must be correct. 2.

  • Page 4: Leaks

    LEAKS In case of a leak, the alarm will sound and the thawing will stop. Open the LID to see which bag leaked. The leak will be confined to only one of the 3 sections. The other sections are not contaminated. Determine what leaked: 1.

  • Page 5: Modes

    When the temperature reaches 1.0C above the target temperature the alarm will sound. Turn Off the unit. If alarm does not sound, contact CytoTherm. Alarm test should be performed every 3 months as part of unit maintenance.

  • Page 6: Troubleshooting

    Check the Safety thermostat (#C-TH) and the heaters (#14-77) for continuity. Bag leaked, but does not Unplug and Plug in the SENSOR CONNECTOR. If there is still a trigger alarm and “LEAK” problem, contact CytoTherm. message.. Temperature calibration does Replace temperature sensor (#CT4-TS). not “hold”, it changes .

  • Page 7: Maintenance

    This should not happen in normal operation. If it does for more than a few minutes, contact CytoTherm. If the operator pours hot water into the bath when filling the bath, he/she will trigger this alarm.

  • Page 8: Parts List

    When the temperature reaches 1.0C above the target temperature the alarm will sound. Turn Off the unit. If alarm does not sound, contact CytoTherm. Alarm test should be performed every 3 months as part of unit maintenance.

  • Page 9: Technician Functions

    SOURCES for SUPPLIES BAGS overwrap 15 cm. wide by 30 cm. (6” x 12”) long are available from US Plastics 1390 Neubrecht Rd. Lima OH 45801 Tel. 800 537-9724. Part #47352. TECHNICIAN FUNCTIONS FULL CALIBRATION Adjust the 10-turn potentiometer so that the voltage between TP1 and Ground (Earth) is .395 V (see wiring diagram for locations).
  • Page 10 9- pin conn #8. Wire separate neutral wires to heaters & pump. Orn Orn 2. Spade connectors on heaters. Heater 3. CT-DR & 4T on one drwg. 100V units 4. Move heater wires to 1/4" spade connectors from BATH connector. Heater 5.
