CytoTherm -4S Owner's Manual

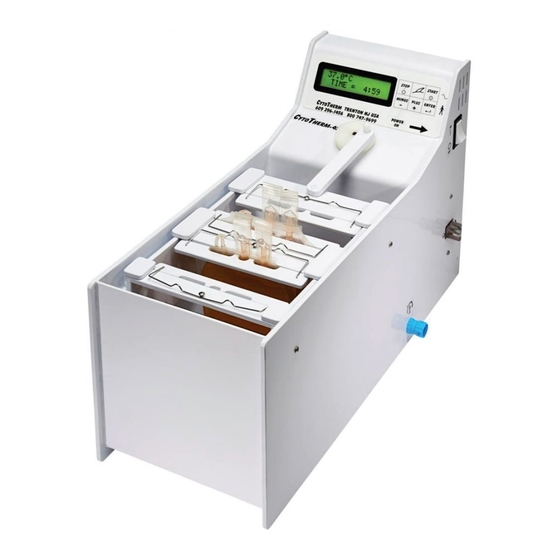

Compact plasma thawing water bath with sliding agitation
Hide thumbs

Advertisement

Table of Contents

Email serve@cytotherm.com Web www.cytotherm.com
CytoTherm-4S
Owners Manual
COMPACT
PLASMA THAWING
WATER BATH
with Sliding Agitation
CT-4S
Model
Version 4.09 and
higher.
Warranty
Each CytoTherm product is produced under rigid
quality control standards. This unit is fully
warranted for a period of two years from the date of
purchase. Call (609) 396-1456 or (800) 747-9699
for help. If necessary send unit to:
CytoTherm 110 Sewell Avenue Trenton, NJ 08610 Fax (609) 396-9395
Please mail in your warranty card.
Please record the following: Serial No. ___________ Date of Purchase____________

TABLE OF CONTENTS

1
Specifications
2
2
3
4
4
5
Modes of operation, Programming
SPECIFICATIONS:
over thawing temperature. 45
Watt, Available in 120 Volt or 230 Volts, 50 or 60 Hz. (must be grounded).
CytoTherm
110 Sewell Ave.
Tel 800 747-9699 or 609 396-1456 Fax 609 396-9395
Draw\Instructions CT Products\ CT4SinsM.doc 26 Jun 16
Thawing temperature adjustable 25
o
C safety thermostat. Accuracy 0.1
Trenton NJ 08610 USA
6
7
7
8
8
9
Draining Instructions
10
Wiring Diagram
o
o
C to 40
C. Preset to 37.0
o
C. Easy to do, digital temperature calibration. Power 770
1
o
o
C. Overtemp alarm 1.0
C

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CytoTherm-4S and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for CytoTherm CytoTherm-4S

Summary of Contents for CytoTherm CytoTherm-4S

  • Page 1: Table Of Contents

    Call (609) 396-1456 or (800) 747-9699 for help. If necessary send unit to: CytoTherm 110 Sewell Avenue Trenton, NJ 08610 Fax (609) 396-9395 Please mail in your warranty card. Please record the following: Serial No. ___________ Date of Purchase____________ TABLE OF CONTENTS Draw\Instructions CT Products\ CT4SinsM.doc 26 Jun 16...

  • Page 2: Description

    DESCRIPTION The CytoTherm-4S (CT-4S) is laboratory instrument that uses a recirculating water temperature bath and a sliding action to agitate the plasma. The bags are pushed against bars to stir the plasma inside the bags and speed up the thawing time.

  • Page 3: Operation

    OPERATION Wait for the water to heat up to 37.0 For your protection, use gloves when working with any blood products. For your protection, use gloves when working with any blood products. Flat-frozen plasma units can be thawed without an overwrap bag. Hold a bag thawed without an overwrap bag.

  • Page 4: Leaky Plasma Bag

    LEAKY PLASMA BAG If a Plasma bag leaks, turn the unit off and discard the leaking bag. The remaining bags are not contaminated, because the ports are always kept out of the water. The bath water is contaminated and must be drained and the bath cleaned. See CLEANING the BATH.
  • Page 5 When the temperature reaches 1.0C above the target temperature the alarm will sound. Turn Off the unit. If alarm does not sound, contact CytoTherm. Alarm test should be performed every 3 months as part of unit maintenance.

  • Page 6: Troubleshooting

    If the operator pours hot water into the bath he/she will trigger this alarm. This should never happen in normal operation. If it does, contact CytoTherm. LOW WATER First make sure that a pinch ( 0.01 gr) of salt was added if deionized water was used. Pour water...

  • Page 7: Maintenance

    When the temperature reaches 1.0C above the target temperature the alarm will sound. Turn Off the unit. If alarm does not sound, contact CytoTherm. Alarm test should be performed every 3 months as part of unit maintenance.

  • Page 8: Technician Functions

    TECHNICIAN FUNCTIONS FULL CALIBRATION Adjust the 10-turn potentiometer so that the voltage between TP1 and Ground (Earth) is .395 V (see wiring diagram for locations). Actual temperature calibration is then set in Programming Mode (see PROGRAMMING MODE). The trimmer near the BODY connector adjusts the display contrast. SAFETY FEATURES WATER LEVEL SENSOR The unit will display LOW WATER and beep if there is not enough water to cover the level sensor inside the...
  • Page 9 CT-4S Quick Connect Drain Drain Tube Assembly Part C-VLVM Insert drain tube into drain housing Insert drain tube into drain housing part C-VLMF VLMF Twist clockwise until it engages. Push in and turn clock wise to lock. until it engages. Push in and turn clock wise to lock. until it engages.
  • Page 10 Rev 25 Jun 06 Fuse Table & TP1 Start Plus Enter Stop Minus Rev 5 June 04 add 3/4A slow blow fuse to 12 Vac Xform lead. See D 467. Power Cord Brn=High V Filter Grn/Yel=Gnd /Yel Fuse Amps Vac Type Blu=Neutral 1&2 Fast...
