I

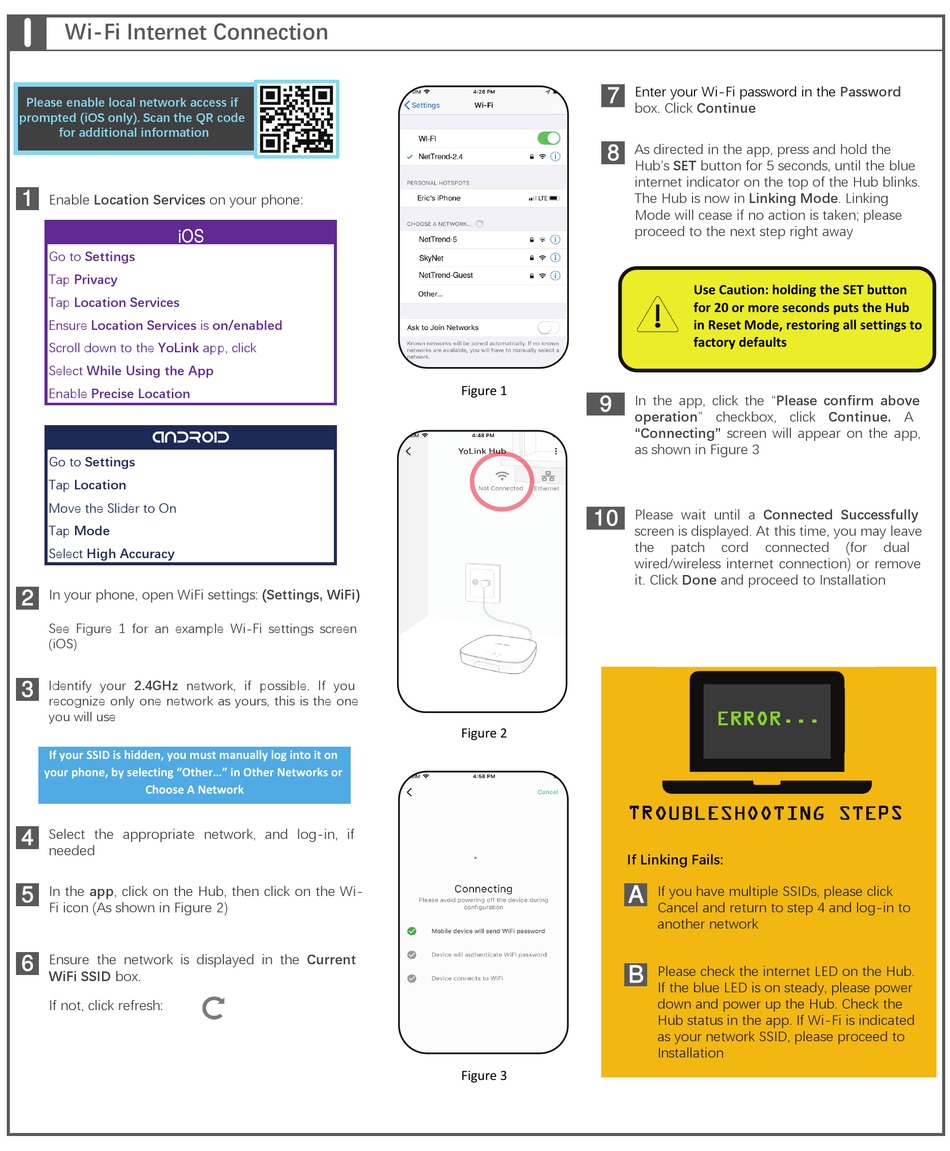

Wi-Fi Internet Connection

Please enable local network access if
prompted (iOS only). Scan the QR code
for additional information
1
Enable Location Services on your phone:
Go to Settings
Tap Privacy
Tap Location Services
Ensure Location Services is on/enabled
Scroll down to the YoLink app, click
Select While Using the App
Enable Precise Location
android
Go to Settings
Tap Location
Move the Slider to On
Tap Mode
Select High Accuracy
2
In your phone, open WiFi settings: (Settings, WiFi)
See Figure 1 for an example Wi-Fi settings screen
(iOS)
3
Identify your 2.4GHz network, if possible. If you
recognize only one network as yours, this is the one
you will use
If your SSID is hidden, you must manually log into it on
your phone, by selecting "Other..." in Other Networks or
Choose A Network
4
Select the appropriate network, and log-in, if
needed
5
In the app, click on the Hub, then click on the Wi-
Fi icon (As shown in Figure 2)
6
Ensure the network is displayed in the Current
WiFi SSID box.
If not, click refresh:
7
Enter your Wi-Fi password in the
box. Click Continue
8
As directed in the app, press and hold the
Hub's SET button for 5 seconds, until the blue
internet indicator on the top of the Hub blinks.
The Hub is now in Linking Mode. Linking
Mode will cease if no action is taken; please
proceed to the next step right away
Figure 1
9
In the app, click the "Please confirm above
operation" checkbox, click Continue. A
"Connecting" screen will appear on the app,
as shown in Figure 3
10
Please wait until a Connected Successfully
screen is displayed. At this time, you may leave
the
wired/wireless internet connection) or remove
it. Click Done and proceed to Installation
Figure 2
TROUBLESHOOTING STEPS
If Linking Fails:
A
B
Figure 3
Use Caution: holding the SET button
for 20 or more seconds puts the Hub
in Reset Mode, restoring all settings to
factory defaults
patch cord connected
ERROR...
If you have multiple SSIDs, please click
Cancel and return to step 4 and log-in to
another network
Please check the internet LED on the Hub.
If the blue LED is on steady, please power
down and power up the Hub. Check the
Hub status in the app. If Wi-Fi is indicated
as your network SSID, please proceed to
Installation
Password
(for dual
